6.2 Centering Aligner and Magnetic Clamp: The Centering Aligner maintains centered
position of the impeller with respect to the interface. The Magnetic clamp provides holding
function for the bag in the tank before the fluid is put inside the bag. After the fluid is filled
to at least a level of 3”, the magnetic clamp can be removed as the hydrostatic pressure
from fluid will hold the bag in place.

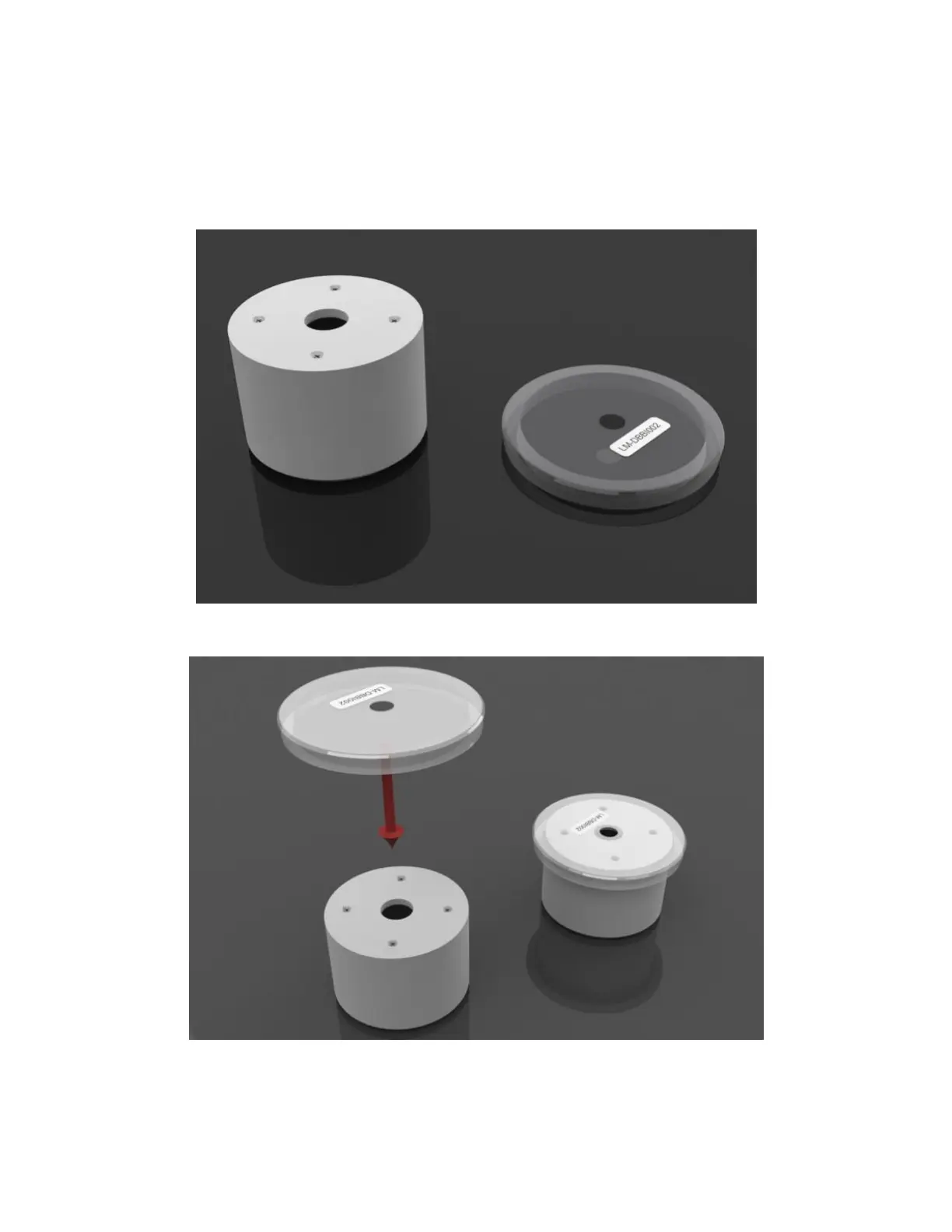

Figure 3: Magnetic clamp (left) and Centering Aligner (right)
Figure 4: Assembly Magnetic clamp is assembled with the centering aligner prior to attachment to the bag
