5. MAGNETIC MIXER SYSTEM ACCESSORIES
6.1 Interface with O-ring: The Interface provides mechanical interfacing of the drive unit with
the impeller inside the bag.

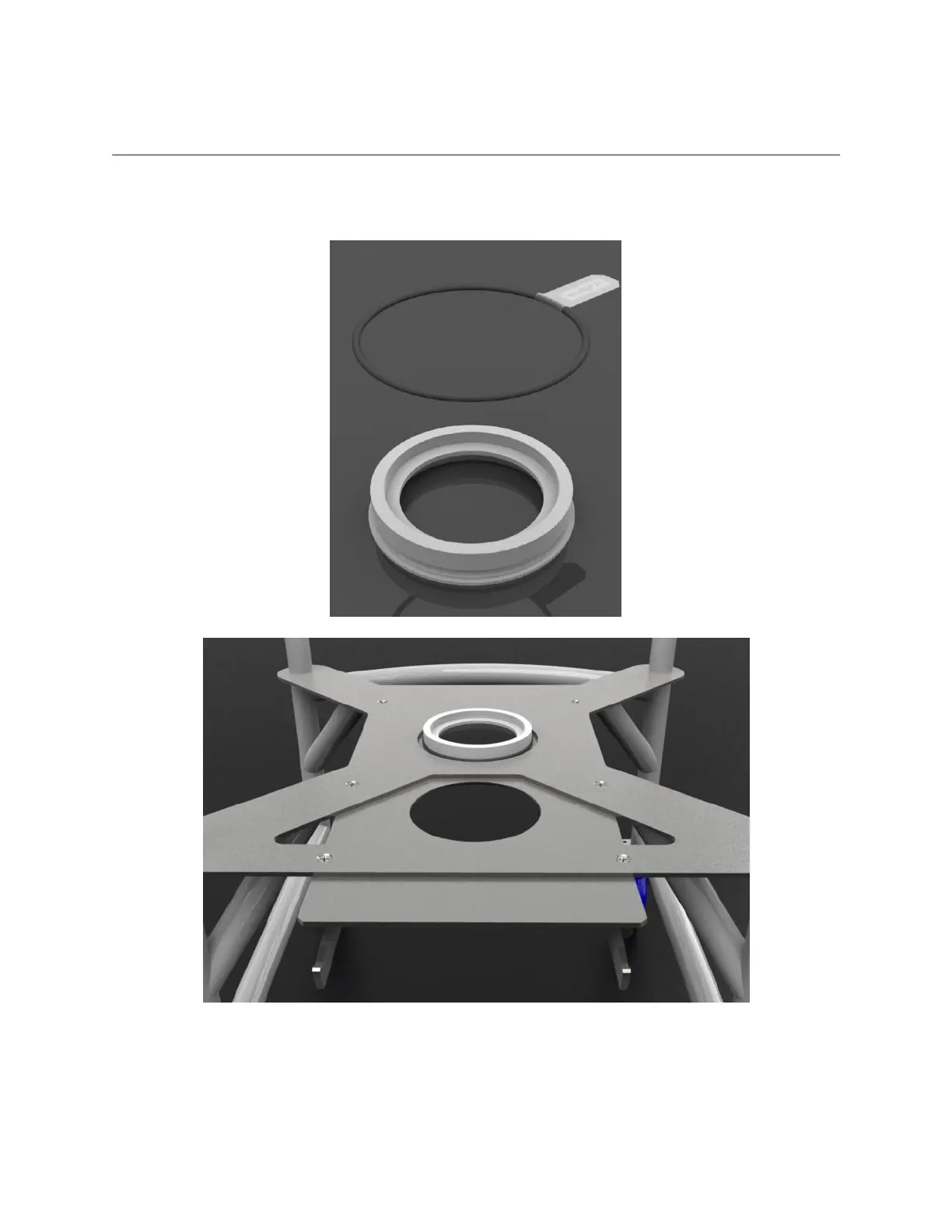

Figure 2: Top: Drive-bag interface and O-ring.
Bottom: Interface is installed in the railed port of the dolly (locked by the O-ring).
