8. INSERTING PLASTIC BAG INTO TANK

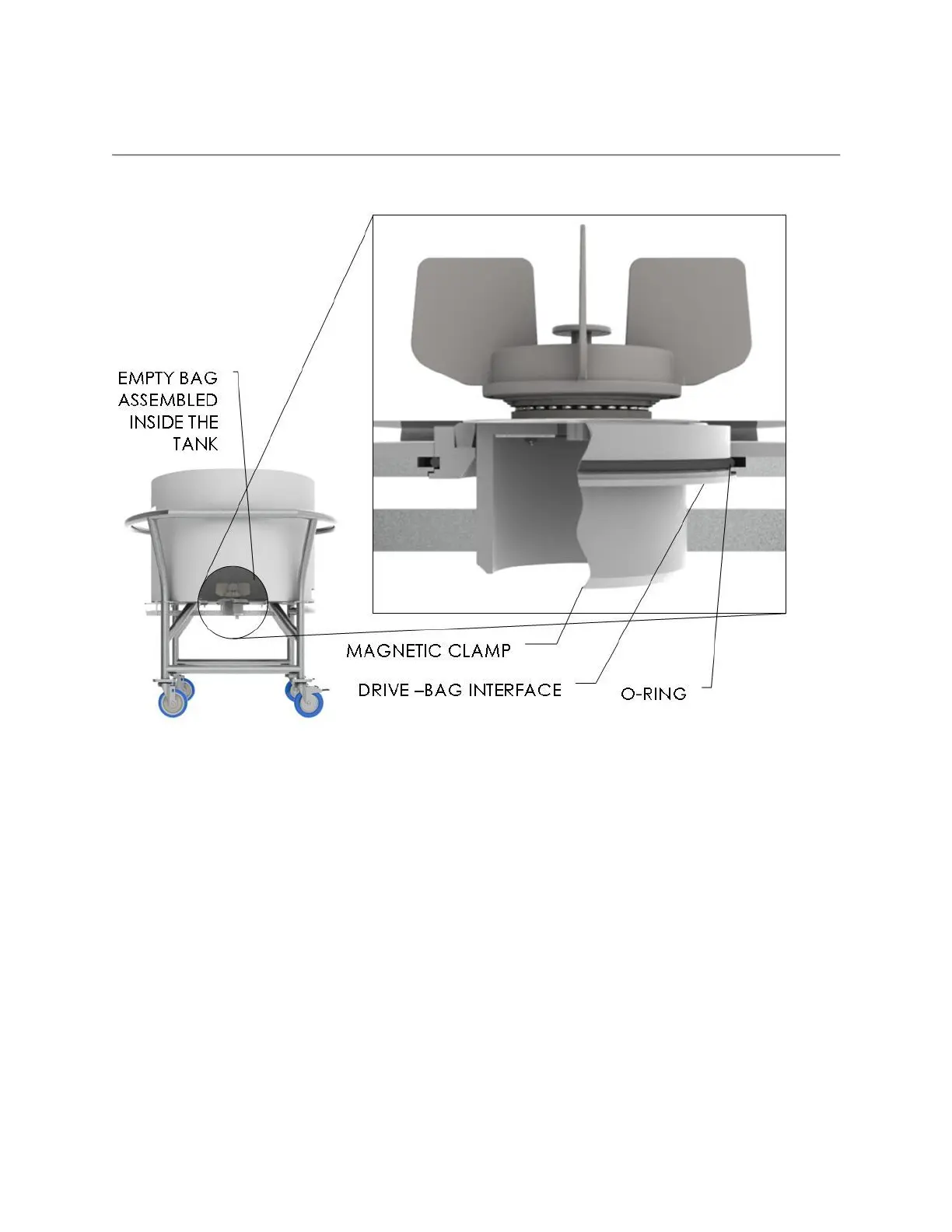

Figure 6: Bag-Tank Assembly
9.1 Place the bag in the plastic tank by aligning magnetic clamp with the large pre-cut port
on the bottom surface of the tank and pull the bottom drain tube through the smaller
port.
9.2 Insert the magnetic clamp in the appropriate pre-cut port.
9.3 Before filling the bag, ensure that all tubes are clamped, with the exception of the filling
tube. Ensure that the bottom drain tube is clamped.
9.4 As bag starts to fill, gently pull the bottom surface of the bag to remove any wrinkles,
especially near the impeller.
DO NOT exceed recommended bag capacity
DO NOT alter the tube and/or impeller configuration of bags
