7. BAG - INTERFACE ASSEMBLY

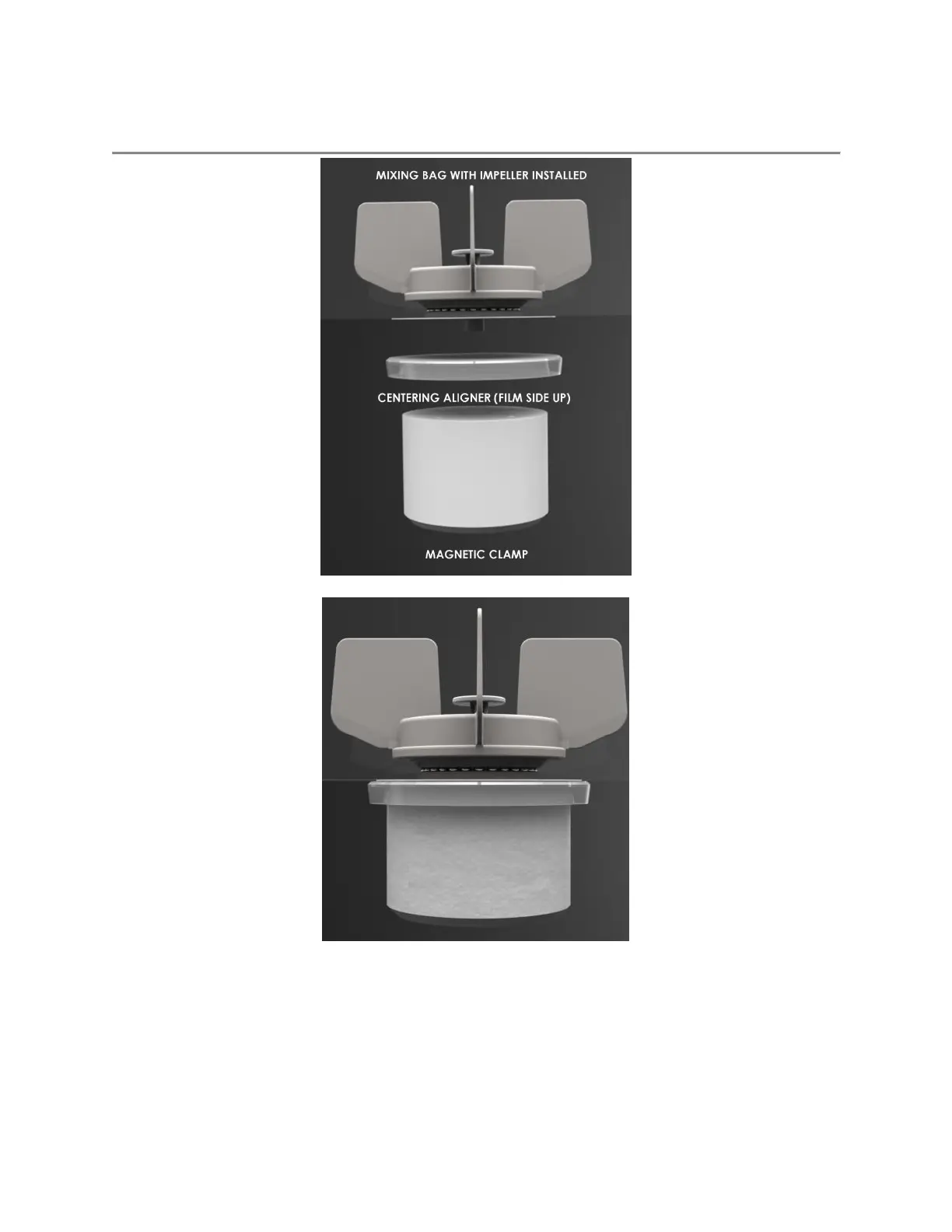

Figure 5: Assembly of dry bag with interface
8.1 Carefully open the EXTERNAL packaging of the mixing bag. A blue protective shell is
magnetically attached to the outside of the bag over the locator. This shell must be
removed from the bag before assembling the interface.
8.2 Assemble the centering aligner and magnetic clamp as shown in Figure 5.
