Document #: 4100022 Revision: F Page #: 14 of 21
9. COUPLING THE BAG WITH THE DRIVE UNIT

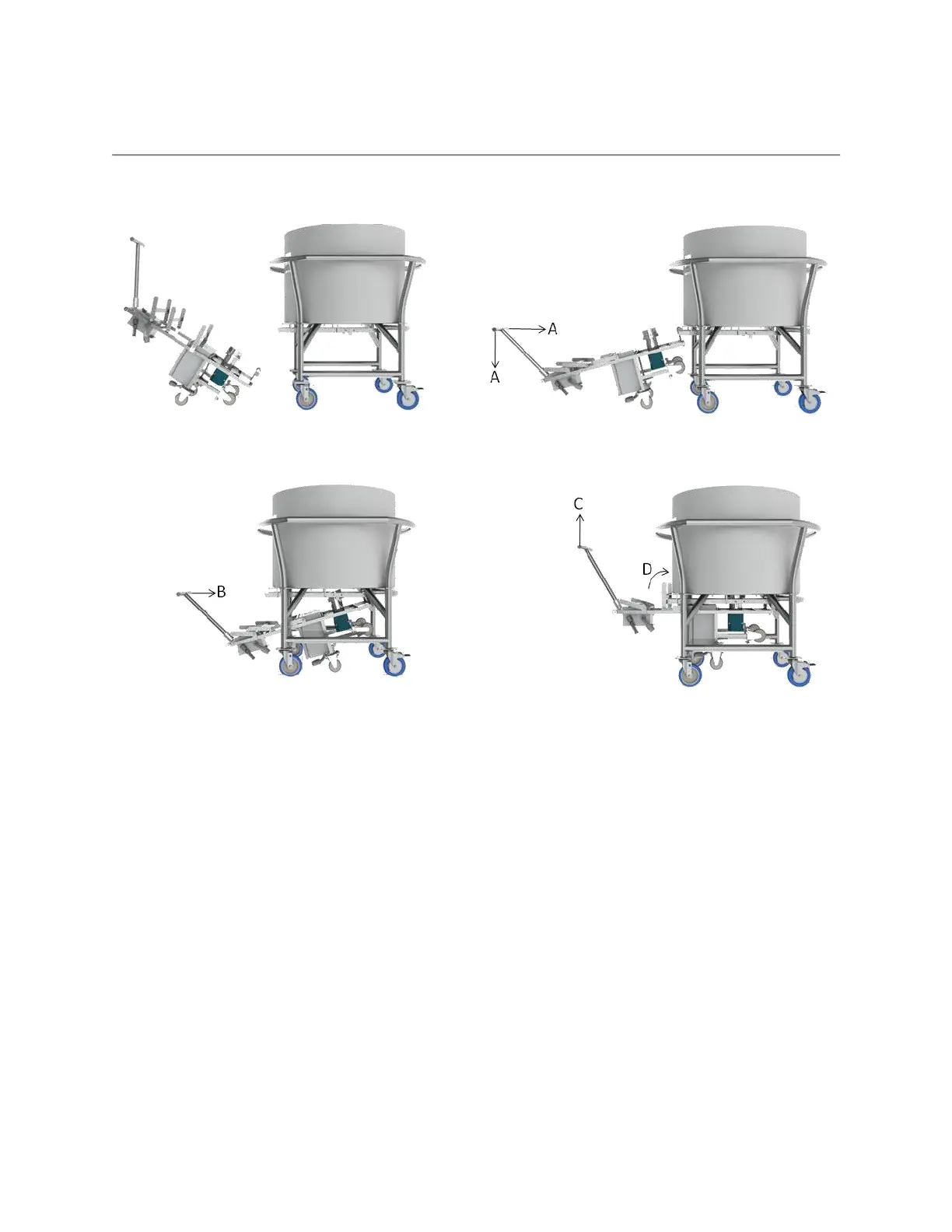

Figure 7: Coupling of magnetic mixer drive with the bag can be accomplished only when the bag is filled with fluid
(No coupling should be attempted with an empty or dry bag! The impeller will damage the bag.)
10.1 Remove Magnetic Clamp from the bag-tank assembly before coupling. To remove the
magnetic clamp, reach underneath the drive port and carefully pull the magnetic clamp
until it is free from the bag-tank assembly. Return the magnetic clamp to the supplied
Accessories Box for future use.
10.2 Shift the latch toward the control box slightly, (as shown in the first segment of Figure 7).
10.3 Carefully press down on the drive handle and raise the front wheels off the ground (as
shown on the second segment of Figure 7)
10.4 Align the guide bearings with the guide rails on the drive port.
10.5 Roll the drive unit along the rails all the way until the bearings are caught in the well
located at the dead end of the rails.
