Pall LevMixer DB-300 User Manual

Document #: 020-17475-00 Revision: E Page #: 29 of 63

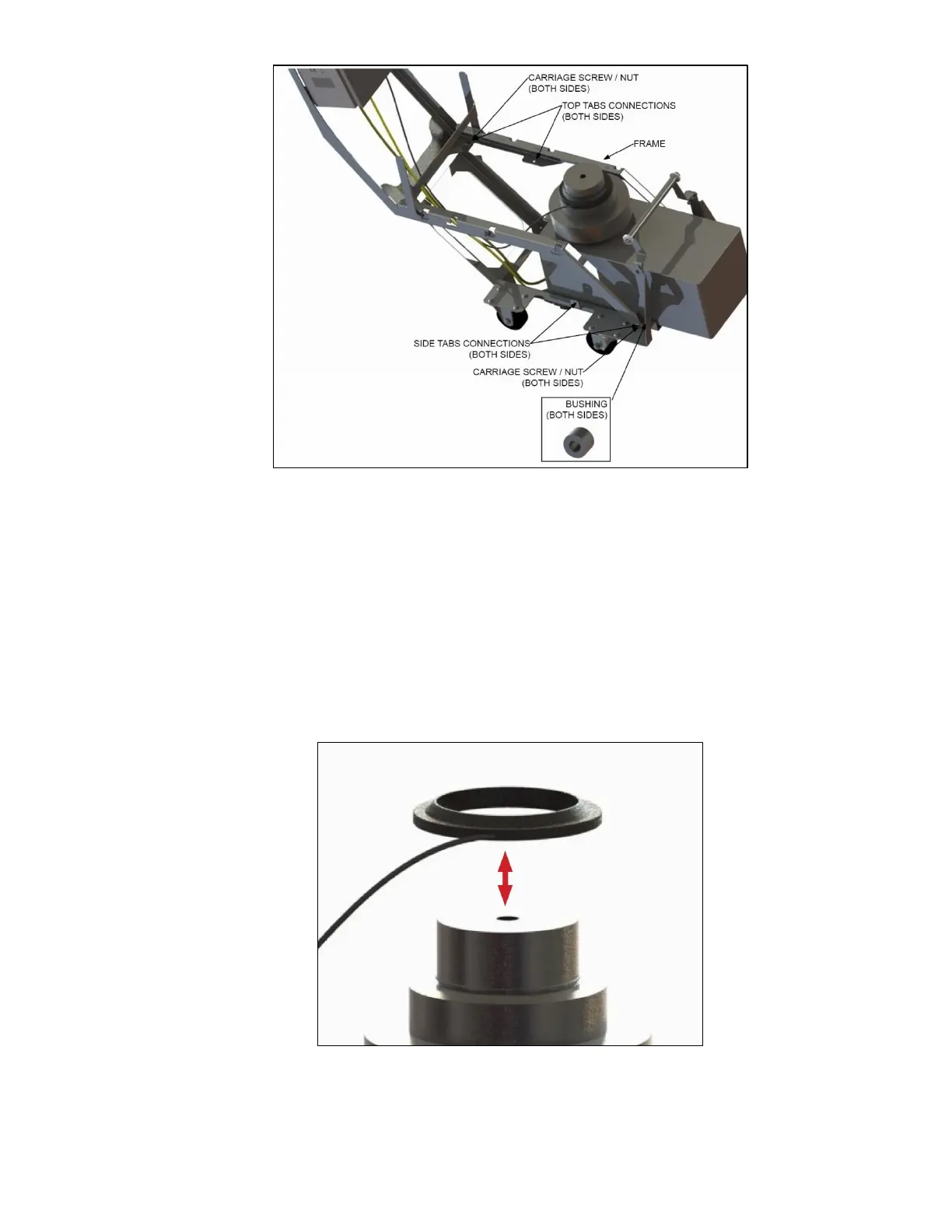

Figure 27: Frame adjustment elements
O.3.2 Sensor ring replacement:
If replacement of sensor ring is required perform the following steps:
 Unlock the cable clamps on the frame and release the sensor ring cable.
 Unscrew and unplug the sensor ring connector from the rear panel of the Control
Box.
 Slip the sensor ring up and off of the levitator head.
 Put the replacement sensor ring over the levitator head.
 Connect the sensor ring connector to the rear panel of control box.
 Place the sensor cable in the cable clips on the frame and lock them.
Figure 28: Sensor ring replacement
