INSTALLATION INSTRUCTIONS
4. STRIKE PLATE INSTALLATION

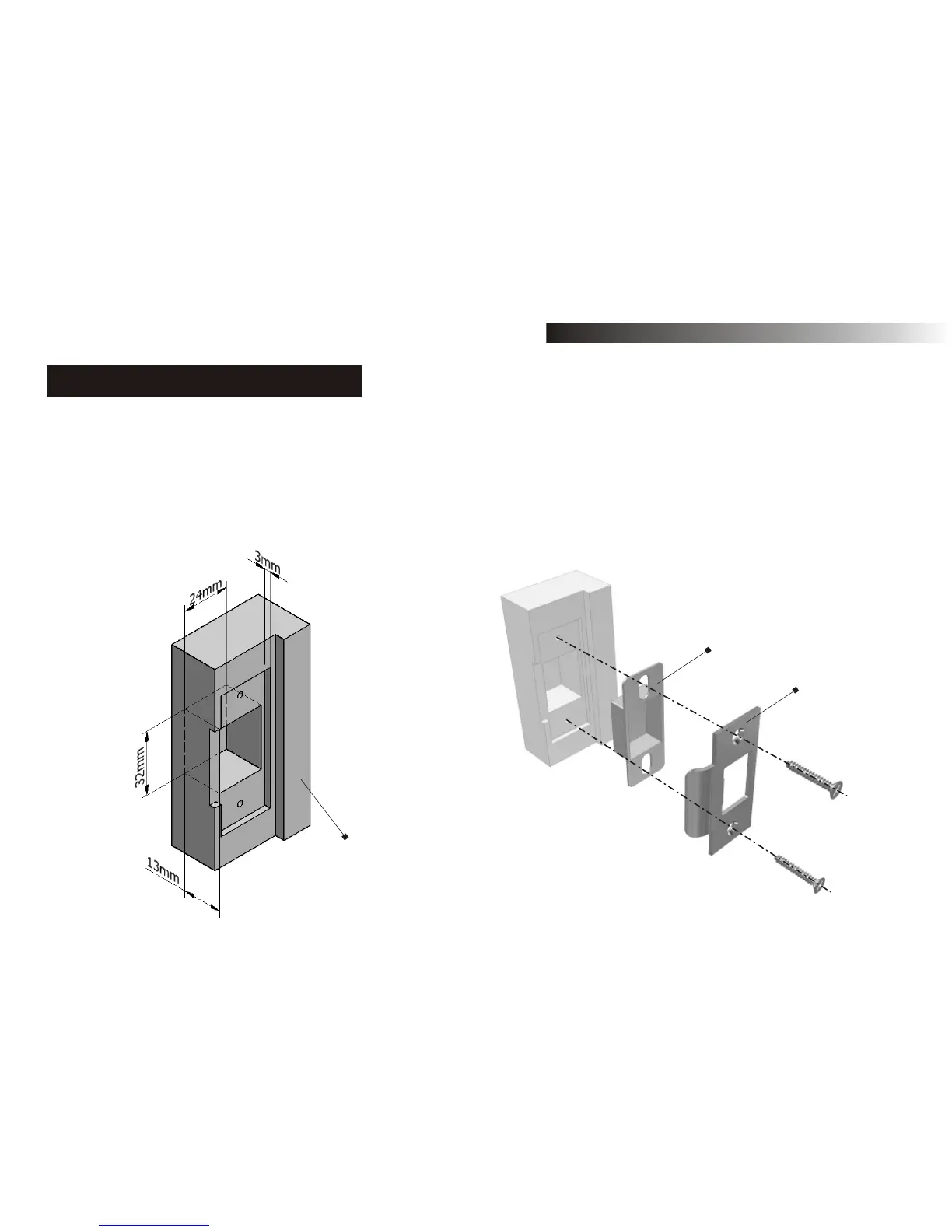

A. Placing the strike plate on the door frame, TRACE a line along the out edge of the strike plate
and chisel a 3mm (1/8") slot in the marked out area.
B. Chisel out a hole measuring 32 x 24 x 13mm (1-1/4''X1''X1/2'') in association with the size of the
dust box.
C. Fasten the strike and dust box with screws.
Door frame
Strike
Dust box
