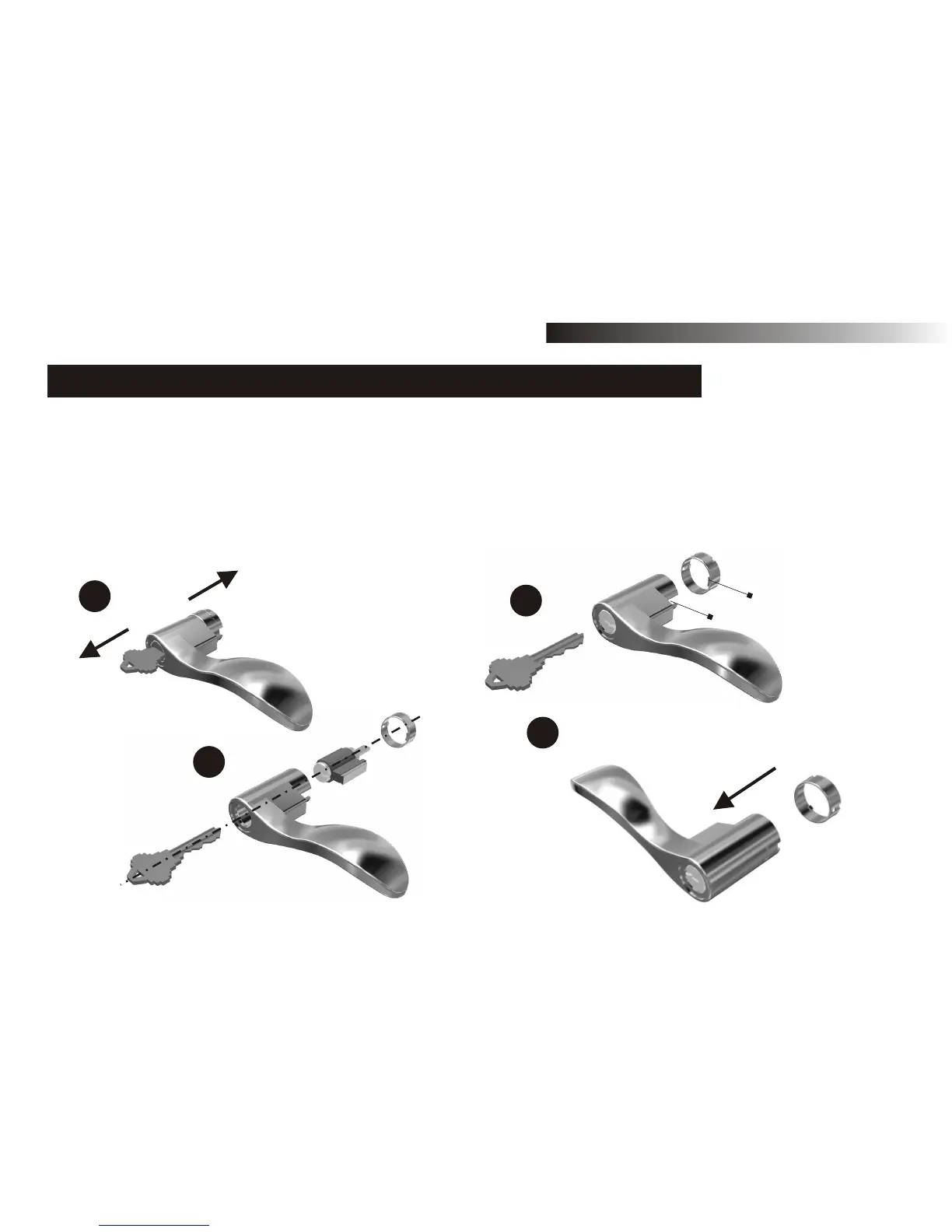

8-4. SWAP INSIDE AND OUTSIDE LEVERS (REMOVAL OF CYLINDER)
A. With lever removed, withdraw the key.
B. Slide the cylinder retaining collar off the shank of the lever.
C. Remove the cylinder.
D. Insert cylinder into the other lever. Align the tab of the cylinder retaining collar with the slot of
lever shank and push it back to secure cylinder in place.
The slot of the lever
Protrusion
