Panasonic ABJ - Page 7

ABJ1,2,3,4,5

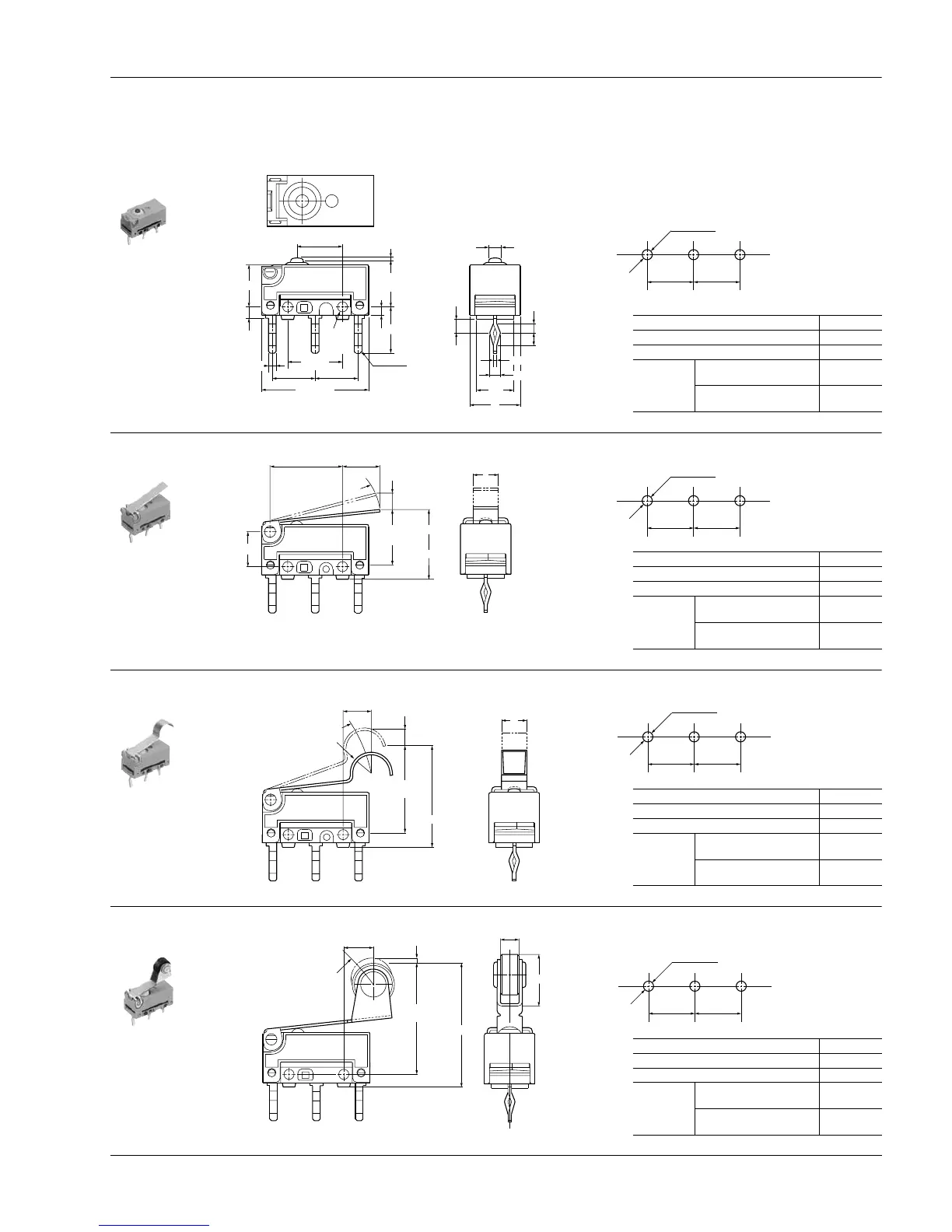

DIMENSIONS
mm General tolerance: ±0.25
1. Dust protected type
1-(1) PC board terminal
Mounting hole 1.2 mm type
Pin plunger
Operating Position
Pretravel 0.6Max.
1.5 dia
t=0.4
1.2±0.05 dia.
5.08±0.1
6
4.4
1.25±0.12
1.5±0.12
1.1±0.12
1.6
0.9
5.08±0.15 5.08±0.15
6-C 0.3
5.4±0.3
5.5±0.2
1.0
5.0±0.15
5.50
6.5±0.1
12.8±0.15
1.5±0.1
2 dia.
-0
+0.12
5.08±0.1
Pretravel, Max. mm 0.6
Movement differential, Max. mm 0.12
Overtravel, Min. mm 0.25
Operating
position
Distance from mounting
hole, mm
5.5±0.2
Distance from stand-off,
mm
7±0.3
Hinge lever
8.6 4.4±0.4
6.8±1.0
8.3±1.2
Pretravel 3.0Max.
R13.3
4.2
3
5.08±0.15.08±0.1
1.2±0.05 dia.
Operating Position
Pretravel, Max. mm 3.0
Movement differential, Max. mm 0.5
Overtravel, Min. mm 0.5
Operating
position
Distance from mounting
hole, mm
6.8±1.0
Distance from stand-off,
mm
8.3±1.2
Simulated roller lever
Pretravel 3.0Max.
9.8±1.0
Operating Position
11.3±1.2
R13.2
R2.5
3.3±0.4
3
1.2±0.05 dia.
5.08±0.1 5.08±0.1
Pretravel, Max. mm 3.0
Movement differential, Max. mm 0.5
Overtravel, Min. mm 0.5
Operating
position
Distance from mounting
hole, mm
9.8±1.0
Distance from stand-off,
mm
11.3±1.2
Roller lever
1.2±0.05 dia.
5.08±0.1 5.08±0.1
Operating Position
13.1±1.0
Pretravel 3.0Max.
3.4±0.4
R13.8
2.2
4.8 dia.
14.6±1.2
Pretravel, Max. mm 3.0
Movement differential, Max. mm 0.5
Overtravel, Min. mm 0.5
Operating
position
Distance from mounting
hole, mm
13.1±1.0
Distance from stand-off,
mm
14.6±1.0
