Panasonic ABJ - Page 9

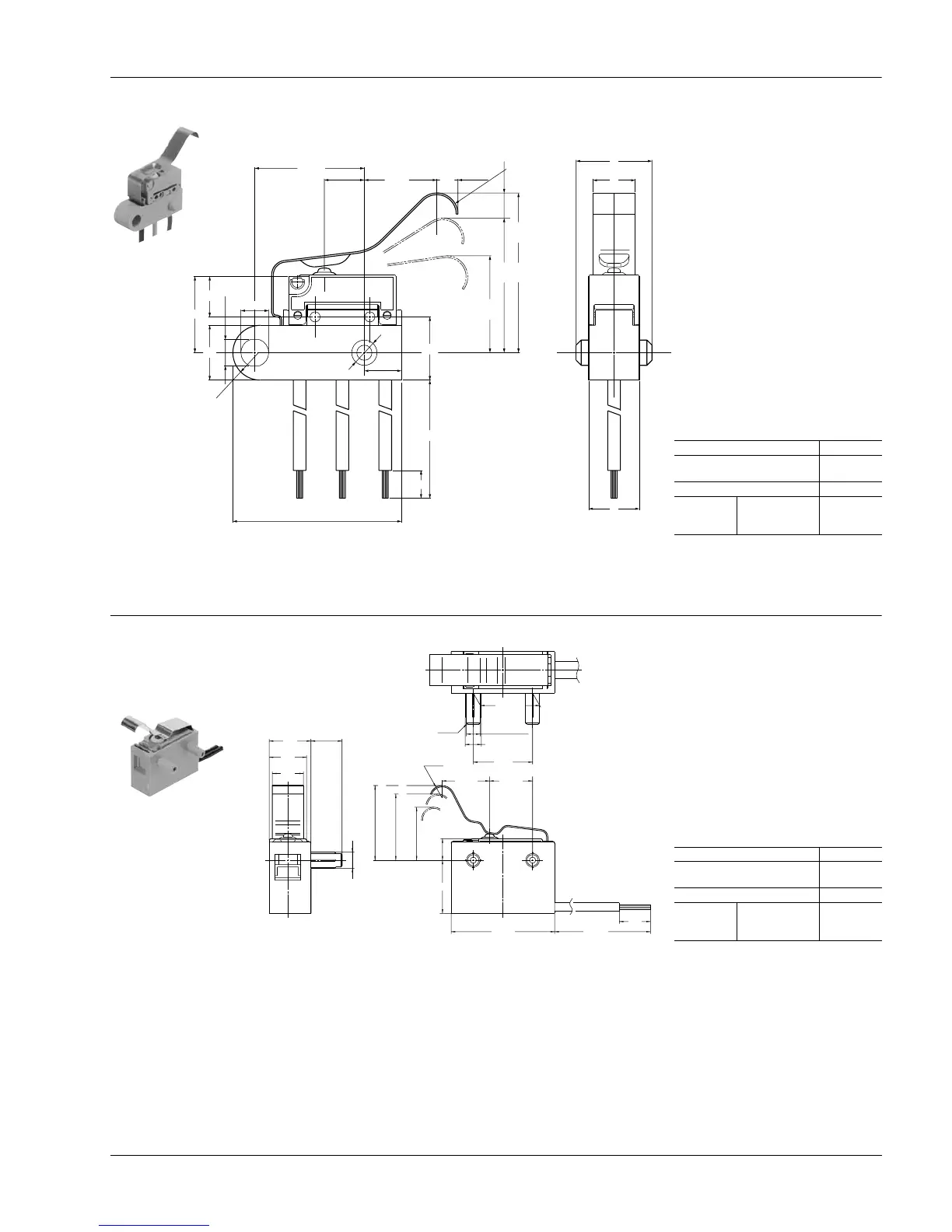

ABJ1,2,3,4,5
Leaf lever
mm General tolerance: ±0.25
Mounting hole: 3 mm
4.8±0.3
R3.25
20.0±0.4
R2.5
13±0.1
5
9.25
6.5
8.6±1
2.5
Free Position
(19.0)
Operating Position
(16±2)
(11.5 min.)
Totaltravel Position
7.5
300±10
5±2
Pretravel 6 max.
3 dia.
+0
–0.15
3.1
+0.1
–0.05
5
9
6
4.4
3.3
Pretravel, Max. mm 6.0
Movement differential,
Max. mm
1.0
Overtravel, Min mm 2.5
Operating
position
Distance from
mounting hole,
mm
16.0±2.0
2-(2) Side wire leads type
Fixed pin type
Right side pin type
Right wire leads type
16.65
3.45
8.55
6.7
6.0
5.0
300
±10
5
±2
7.6
±1.0
9.53
±0.1
9.53
C0.2
R2.0
2.6
±0.05
6.9
±0.3
2.6
±0.05
2.2
±0.05
dia.
Free position (F.P.) 13.05 max. Operating position (O.P.) 10.7
±0.7
Totaltravel position (T.T.P.) (8.55)
5.0
+0.0
−0.2
Pretravel, Max. mm 2.6
Movement differential,
Max. mm
0.5
Overtravel, Min mm 1.4
Operating
position
Distance from
mounting hole,
mm
10.7±0.7
