Panasonic AG-8700E - Page 40

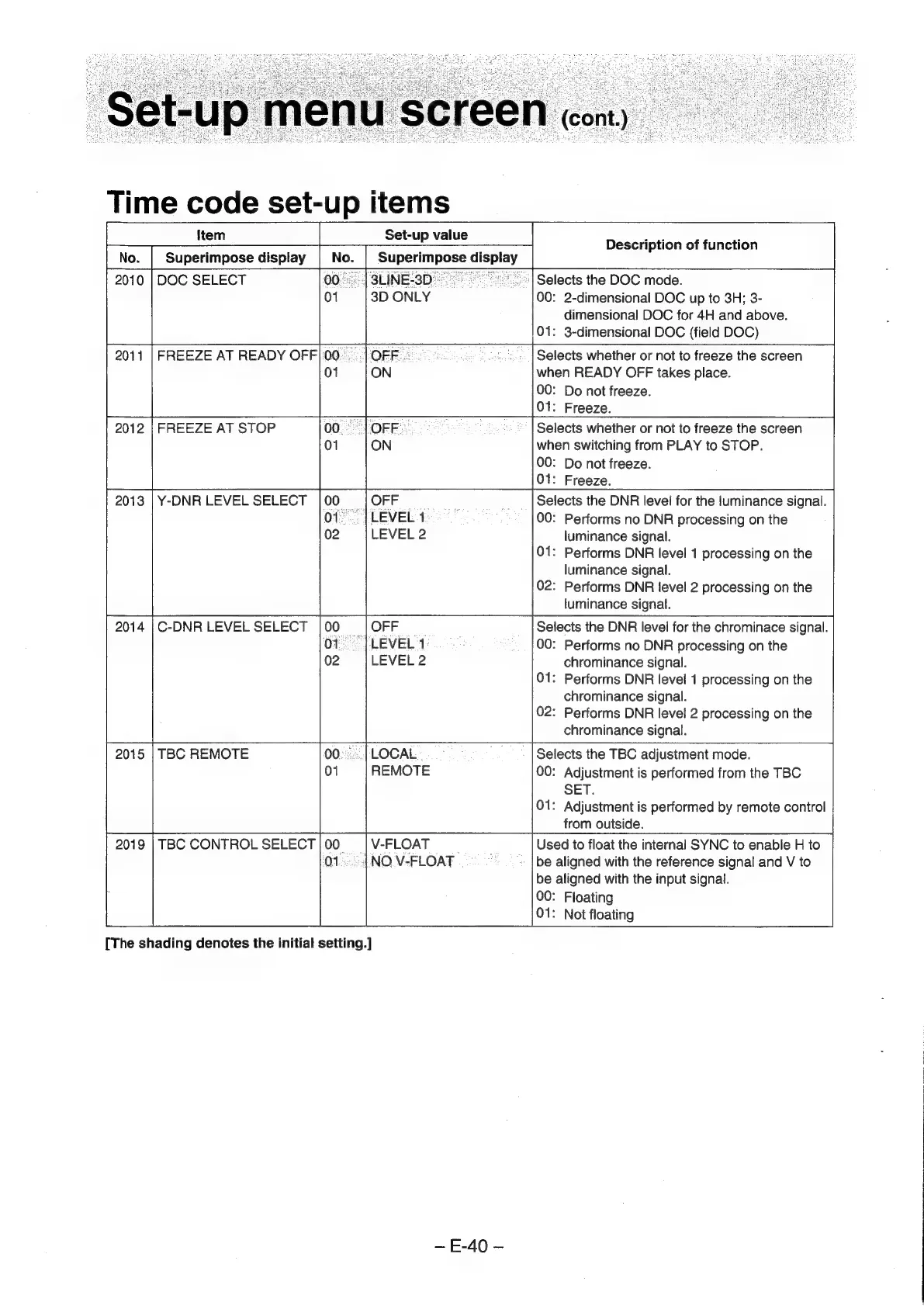

Time code set-up items
Item
| No. | Superimpose display No.
2010
2013
2014
2015
2019
DOC SELECT
Set-up value
Superimpose display
3D ONLY
Description of function
| Selects the DOC mode.
00: 2-dimensional DOC up to 3H; 3-
dimensional DOC for 4H and above.
01: 3-dimensional DOC (field DOC)
FREEZE AT READY OFF}:
FREEZE AT STOP
Y-DNRLEVEL SELECT |00
01.
02
C-DNR LEVEL SELECT | 00
ot:
02
TBC REMOTE
01
TBC CONTROL SELECT | 00
01
00. ...,| LOCAL .
| NO V-FLOAT
OFF
LEVEL 1
LEVEL 2
OFF
- | LEVEL 1
LEVEL 2
REMOTE
V-FLOAT
[The shading denotes the initial setting.]
~E-40 -
te 8 oe ae ee ee eae
Used to float the internal SYNC to enable H to
Selects whether or not to freeze the screen
when READY OFF takes place.
00: Do not freeze.
01: Freeze.
Selects whether or not to freeze the screen
when switching from PLAY to STOP.
00: Do not freeze.
01: Freeze.
Selects the DNR level for the luminance signal.
00: Performs no DNR processing on the
luminance signal.
01: Performs DNR level 1 processing on the
luminance signal.
02: Performs DNR level 2 processing on the
luminance signal.
Selects the DNR level for the chrominace signal.
00: Performs no DNR processing on the
chrominance signal.
01: Performs DNR level 1 processing on the
chrominance signal.
02: Performs DNR level 2 processing on the
chrominance signal.
Selects the TBC adjustment mode.
00: Adjustment is performed from the TBC
SET.
01: Adjustment is performed by remote control
from outside.
be aligned with the reference signal and V to
be aligned with the input signal.
00: Floating
01: Not floating
