Chapter 6 Maintenance and inspections

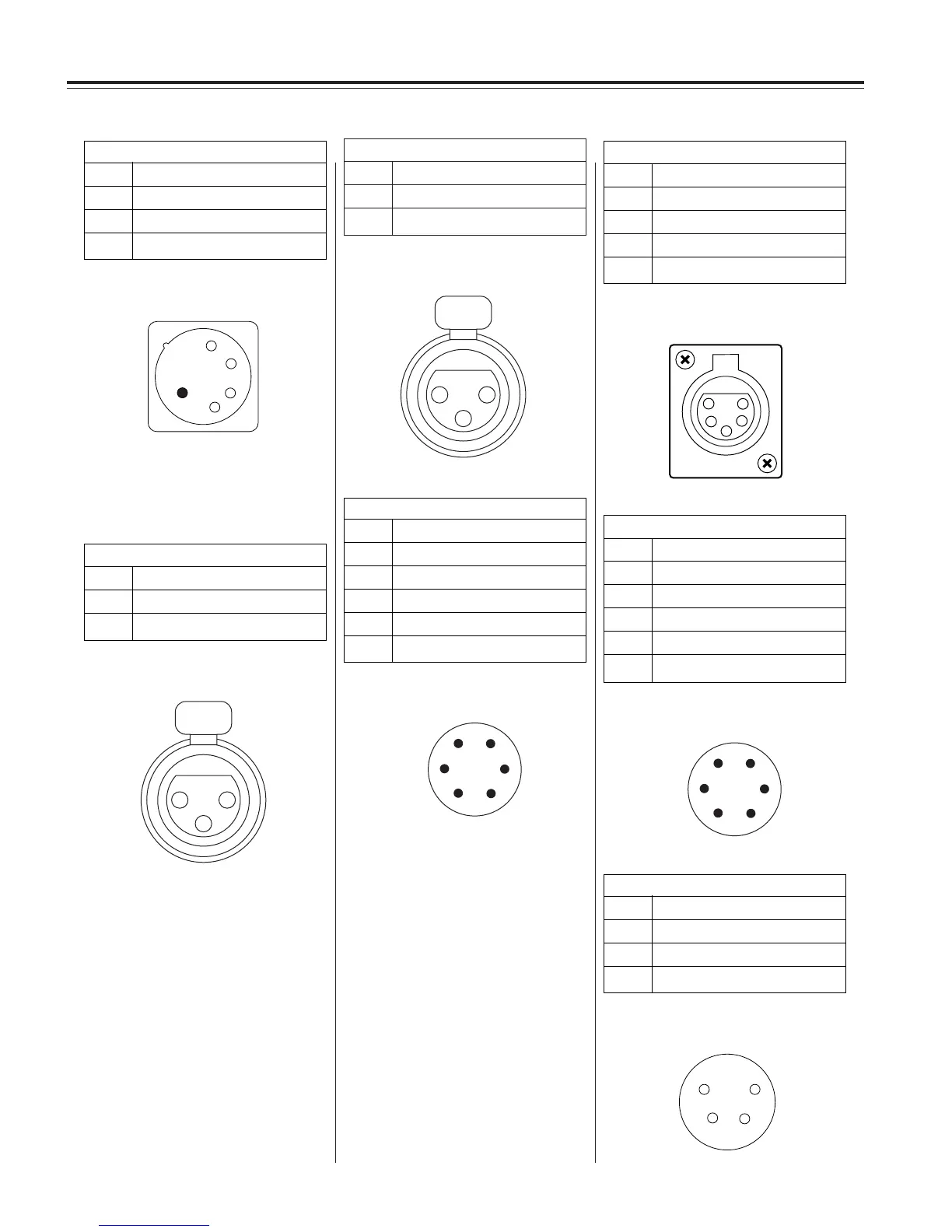

6-2-6 Connectors and signals
AUDIO IN
1 GND
2 AUDIO IN(H)
3 AUDIO IN(C)
Matsushita part number K1AB103A0007
Maker part number HA16PRM-3SG
(Hirose Denki)
PUSH
1
3
2
FRONT MIC IN
1 GND
2 AUDIO IN(H)
3 AUDIO IN(C)
Matsushita part number K1AB103B0013
Maker part number NC3FBH2
(NEUTRIK)
PUSH
1
3
2
DC IN
1 GND
2NC
3NC
4 +12V
Matsushita part number K1AA104H0024
Maker part number HA16RX-4P(SW1)
(Hirose Denki)
1
2
3
4
DC OUT
1 GND
2NC
3NC
4 +12V OUT
Matsushita part number VJS3824A004
Maker part number HR10A-7R-4SC
(Hirose Denki)
1
2
3
4
GPS
1 GPS TXA
2 GPS RXA
3 GPS VBAT
4START
5 GPS VCC
6 GPS GND
Matsushita part number K1AB106J0010
Maker part number HR10A-7R-6SC
(Hirose Denki)
1
2
4
5
6
3
ECU
1 CAM CONT
2 CAM DATA
3NC
4 ECU ON
5 UNREG 12V
6 GND
Matsushita part number K1AB106J0010
Maker part number HR10A-7R-6SC
(Hirose Denki)
1
2
4
5
6
3
5
4
3
2
1
AUDIO OUT
1 GND
2 L CH OUT (H)
3 L CH OUT (C)
4 R CH OUT (H)
5 R CH OUT (C)
Matsushita part number K1AA105H0007
Maker part number HA16RD-5P
(Hirose Denki)
<Note>
Ensure that the polarities are used
correctly for a power supply from an
external source.
<Note>
The unit’s VTR START/STOP signal is
assigned to pin 4.
