Getting Started

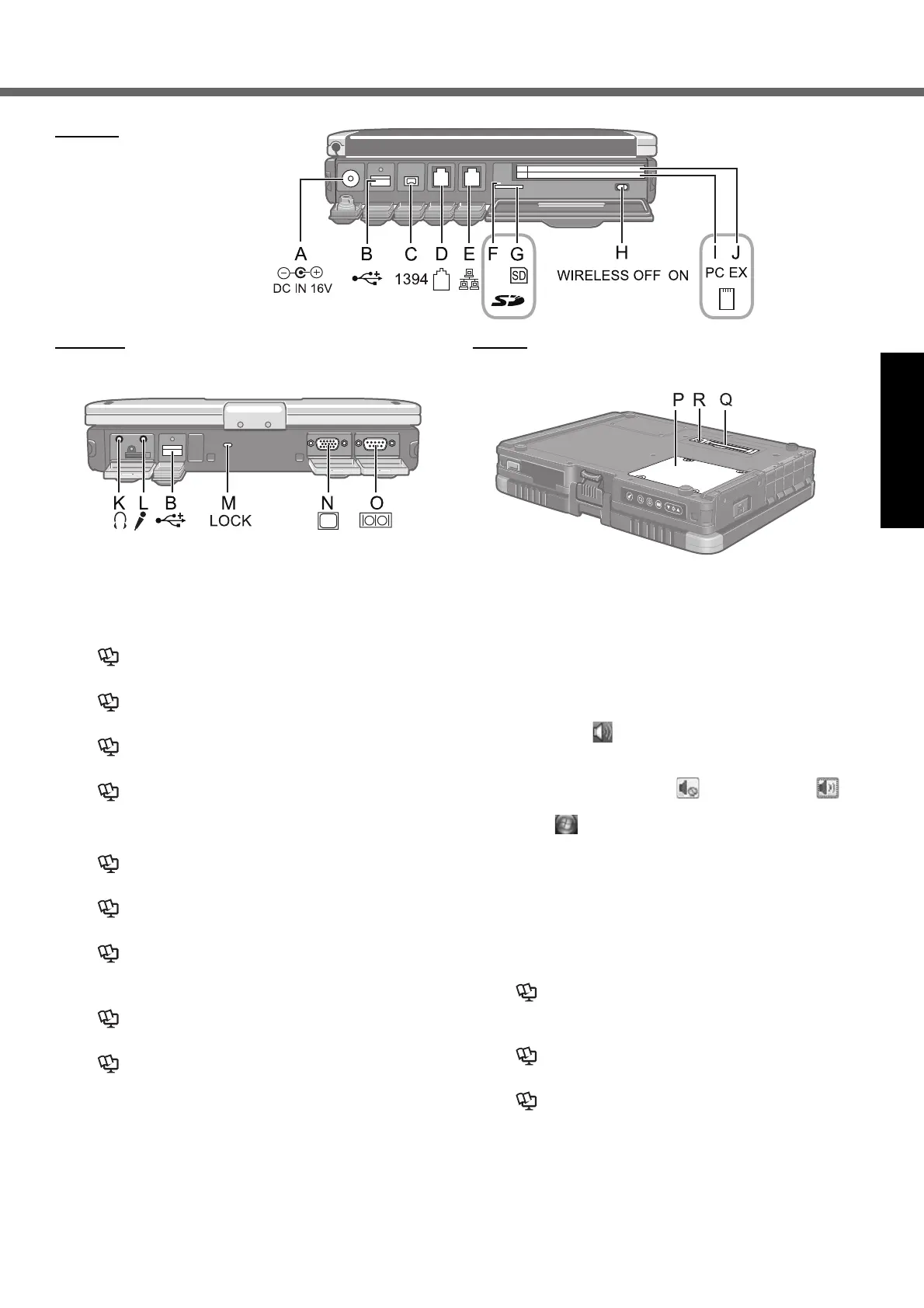

Left side
Rear side Bottom
A: DC-IN Jack
B: USB Port

Reference Manual “USB Devices”
C: IEEE 1394 Interface Connector

Reference Manual “IEEE 1394 Devices”
D: Modem Port

Reference Manual “Modem”
E: LAN Port

Reference Manual “LAN”
F: SD Memory Card Indicator
(Blinking: During access)

Reference Manual “SD Memory Card”
G: SD Memory Card Slot

Reference Manual “SD Memory Card”
H: Wireless Switch

Reference Manual “Disabling/Enabling Wireless
Communication”
I: PC Card Slot

Reference Manual “PC Card / ExpressCard”
J: ExpressCard Slot

Reference Manual “PC Card / ExpressCard”
K: Headphone Jack
You can connect headphones or amplifi ed speakers.
When they are connected, audio from the internal
speakers is not heard.
L: Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur as a result.
To output microphone audio from the internal
speakers:
A
Right-click on the notifi cation area and click
[Playback Devices].
B
Click [Speakers] - [Properties] - [Levels].
C
In [Input Monitor], click so it changes to and
click [OK].
D
Click (Start) - [Control Panel] - [Hardware and
Sound] - [SigmaTel Audio].
E
Remove the check mark from [Enable Power Man-
agement].
M: Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
N: External Display Port

Reference Manual “External Display”
O: Serial Port
P: RAM Module Slot

Reference Manual “RAM Module”
Q: Expansion Bus Connector

Reference Manual “Port Replicator / Car Mounter”
R: External Antenna Connector
