Panasonic CF-19 series - Description of Parts

10
Getting Started
Description of Parts

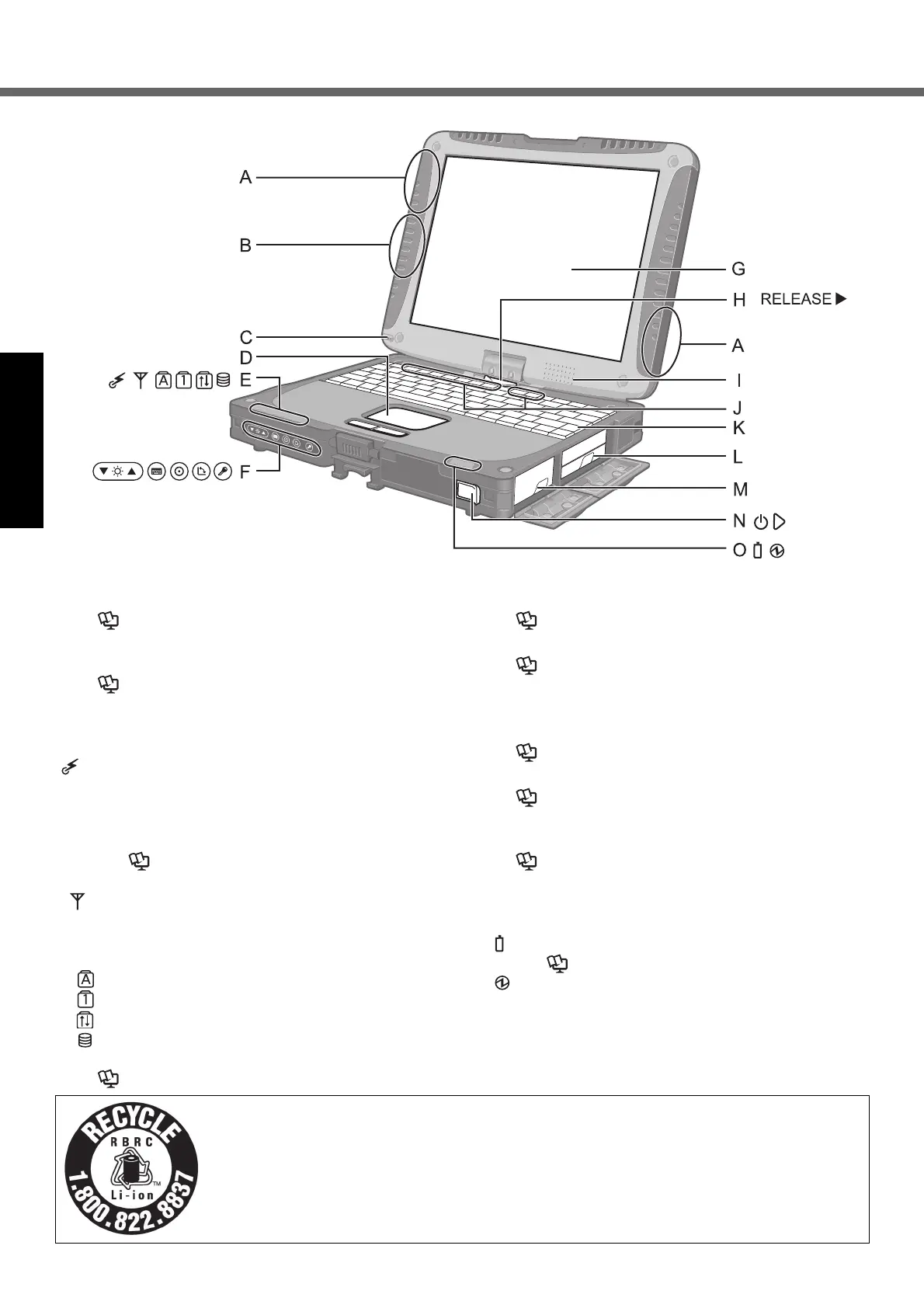

A: Wireless LAN Antenna
<Only for model with wireless LAN>

Reference Manual “Wireless LAN”
B: Bluetooth Antenna
<Only for model with Bluetooth>

Reference Manual “Bluetooth”
C: Stylus/Pen Holder
D: Touch Pad
E: LED Indicator
: Wireless ready
This indicator lights when Wireless LAN, Blue-
tooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.

Reference Manual “Disabling/Enabling
Wireless Communication”
: Wireless WAN status
<Only for model with wireless WAN>

Refer to the instruction manual of the wireless
device.
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Hard disk drive status
F: Tablet Buttons

Reference Manual “Tablet Buttons”
G: LCD
<Only for model with touchscreen>

Reference Manual “Touchscreen”
<Only for model with digitizer>

Reference Manual “Digitizer”
H: Display Release Latch

page 12 “Switching to the Tablet mode”
I: Speaker

Reference Manual “Key Combinations”
J: Function Key

Reference Manual “Key Combinations”
K: Keyboard
L: Hard Disk Drive

Reference Manual “Hard Disk Drive”
M: Battery Pack
N: Power Switch
O: LED Indicator
: Battery status

Reference Manual “Battery Power”
: Power status
(Off: Power off/Hibernation, Green: Power on,
Blinking green: Sleep)
A lithium ion battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.
Pour des renseignements sur le recyclage de la batterie, veuillez composer le
1-800-8-BATTERY.
48-M-1
