Getting Started

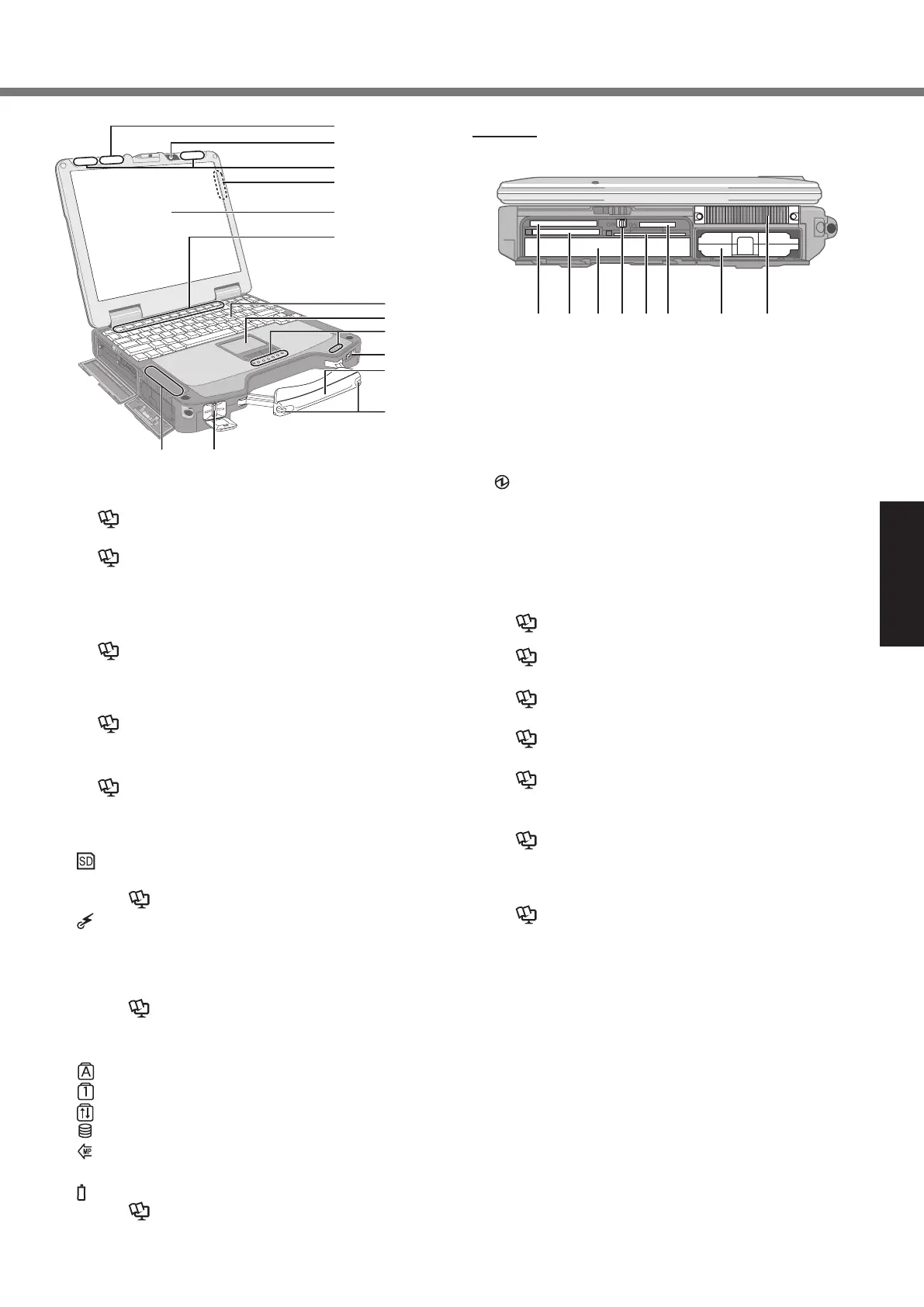

Description of Parts
A: Wireless LAN Antenna / Bluetooth Antenna
<Only for model with wireless LAN>
è
Reference Manual “Wireless LAN”
<Only for model with Bluetooth>
è
Reference Manual “Bluetooth”
B: Camera
<Only for model with Camera>
C: Wireless WAN Antenna
<Only for model with wireless WAN>
è
Reference Manual “Wireless WAN”
D: GPS Antenna (Rear side)
<Only for model with GPS>
E: LCD
è
Reference Manual “Screen Input Operation”
(Only for model with touchscreen)
F: Function Key
è
Reference Manual “Key Combinations”
G: Keyboard
H: Touch Pad
I: LED Indicator
: SD Memory Card Indicator
(Blinking: During access)
è
Reference Manual “SD Memory Card”
: Wireless ready
This indicator lights when Wireless LAN, Blue-
tooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
è
Reference Manual “Wireless LAN”, “Bluetooth”,
“Disabling/Enabling Wireless Communication”,
“Wireless WAN”
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Hard disk drive status
: Multimedia pocket device status or the second
battery status.
: Battery status
è
Reference Manual “Battery Power”
: Power status
(Off: Power off/Hibernation, Green: Power on,
Blinking green: Sleep)
J: Power Switch
K: Carrying Handle
L: Stylus Holder
M: Fingerprint Reader
<Only for model with Fingerprint Reader>
è
Reference Manual “Fingerprint Reader”
N: ExpressCard Slot
è
Reference Manual “PC Card / ExpressCard”
O: PC Card Slot
è
Reference Manual “PC Card / ExpressCard”
P: Multimedia Pocket
è
Reference Manual “Multimedia Pocket”
Q: Wireless Switch
è
Reference Manual “Disabling/Enabling Wireless
Communication”
R: Smart Card Slot
è
Reference Manual “Smart Card”
S: SD Memory Card Slot
Keep SD Memory Cards Away from Infants and Small
Children.
è
Reference Manual “SD Memory Card”
T: Battery Pack
Specied Battery pack: CF-VZSU46AU/CF-VZSU72U
U: Ventilation Hole (Exhaust)
D
E
L
MA
H
I
K
J
F
B
C
A
G
Left side
N P T UR SQO
