1 ABOUT LEAD FREE
SOLDER (PbF)
Distinction of PbF PCB:
PCBs (manufactured) using lead free solder will have a PbF
stamp on the PCB.
Caution :
•
• •
• Pb free solder has a higher melting point than standard
solder; Typically the melting point is 50 - 70°F (30 -
40°C) higher. Please use a soldering iron with
temperature control and adjust it to 700 ± 20°F (370 ±
10°C). In case of using high temperature soldering iron,
please be careful not to heat too long.
•
• •
• Pb free solder will tend to splash when heated too high
(about 1100°F/600°C)
•
• •
• This lead free solder will be used for the products after
serial No. 1,000,001.

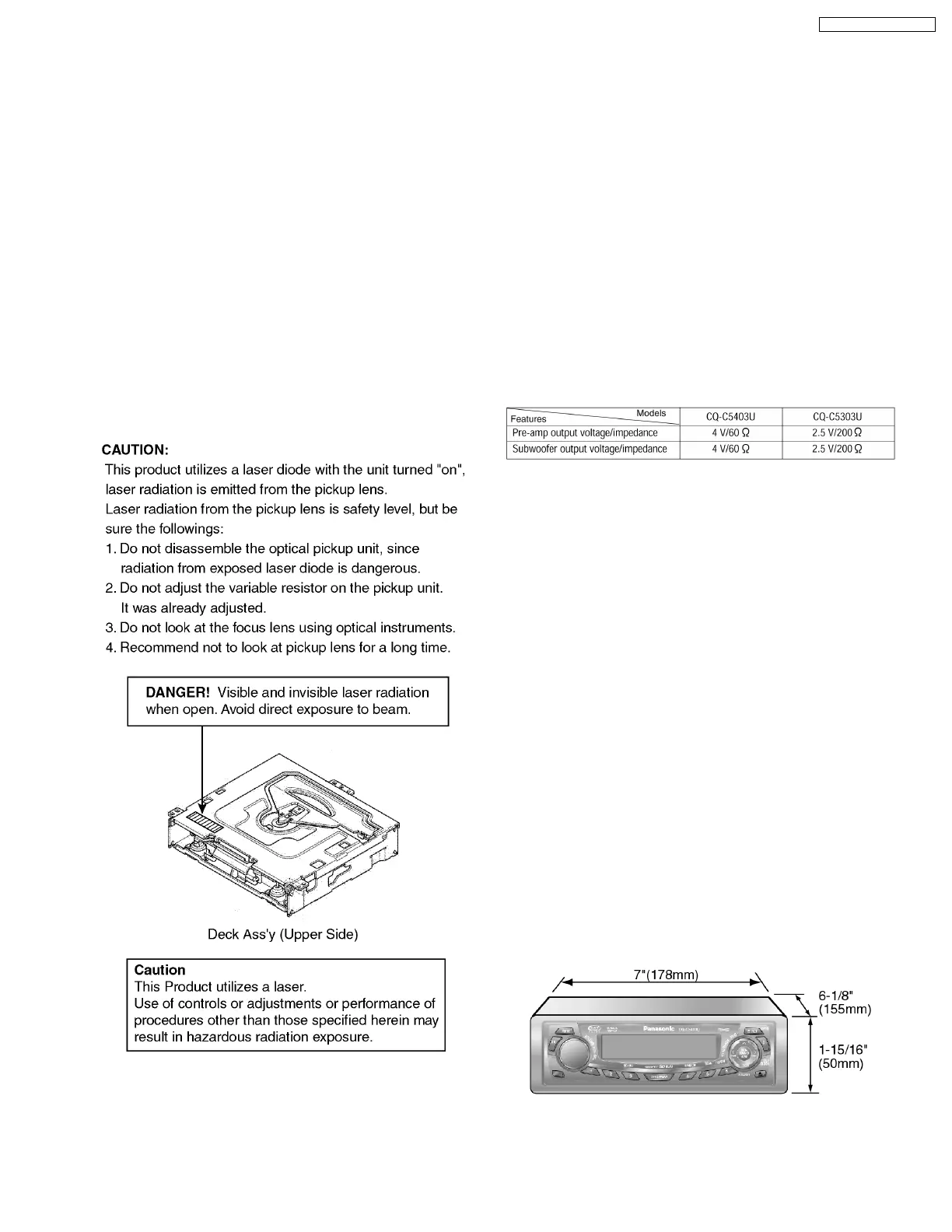

2 LASER PRODUCTS
3 FEATUERS
•
• •
• The optional adapter allows you to connect the optional
Panasonic CD changer unit (CX-DP880).
•
• •
• The optional adapter allows you to connect the optional
iPod
®
series.
•
• •
• XM Satellite Radio. (The optional XM receiver: XMD1000)
•
• •
• Sirius Satellite Radio. (The optional Sirius Satellite receiver:
SIR-PAN1)
•
• •
• Hands Free Phone System. (The optional Bluetooth hands-
free kit: CY-BT100U)
•
• •
• Fully Motorized Face Plate.
•
• •
• SQ (Sound Quality).
•
• •
• SQ3 (3-Band Sound Quality).
•
• •
• MP3/WMA Playback from CD-R/RW.
•
• •
• This manual is for 2 models CQ-C5403U and CQ-C5303U.
The following table describes the differences between 2
models.
4 REPLACING THE FUSE
Use fuses of the same specified rating (15amps). Using
different substitutes or fuses with higher ratings, or connecting
the product directly without a fuse, could cause fire or damage
to the stereo unit.
5 MAINTENANCE
Your product is designed and manufactured to ensure a
minimum of maintenance. Use a dry, a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
6 NOTES
[RADIO BLOCK]
Do not align the AM/FM package block. When the package
block is necessary, it will be supplied already aligned at the
factory.
[CD DECK BLOCK]
This model has no servo alignment points because
microcomputer controls the servo circuit.
7 DIMENSIONS
3
CQ-C5403U / CQ-C5303U
