– 20 –
MAC9512086C2
CS-A181KE
Operation Details

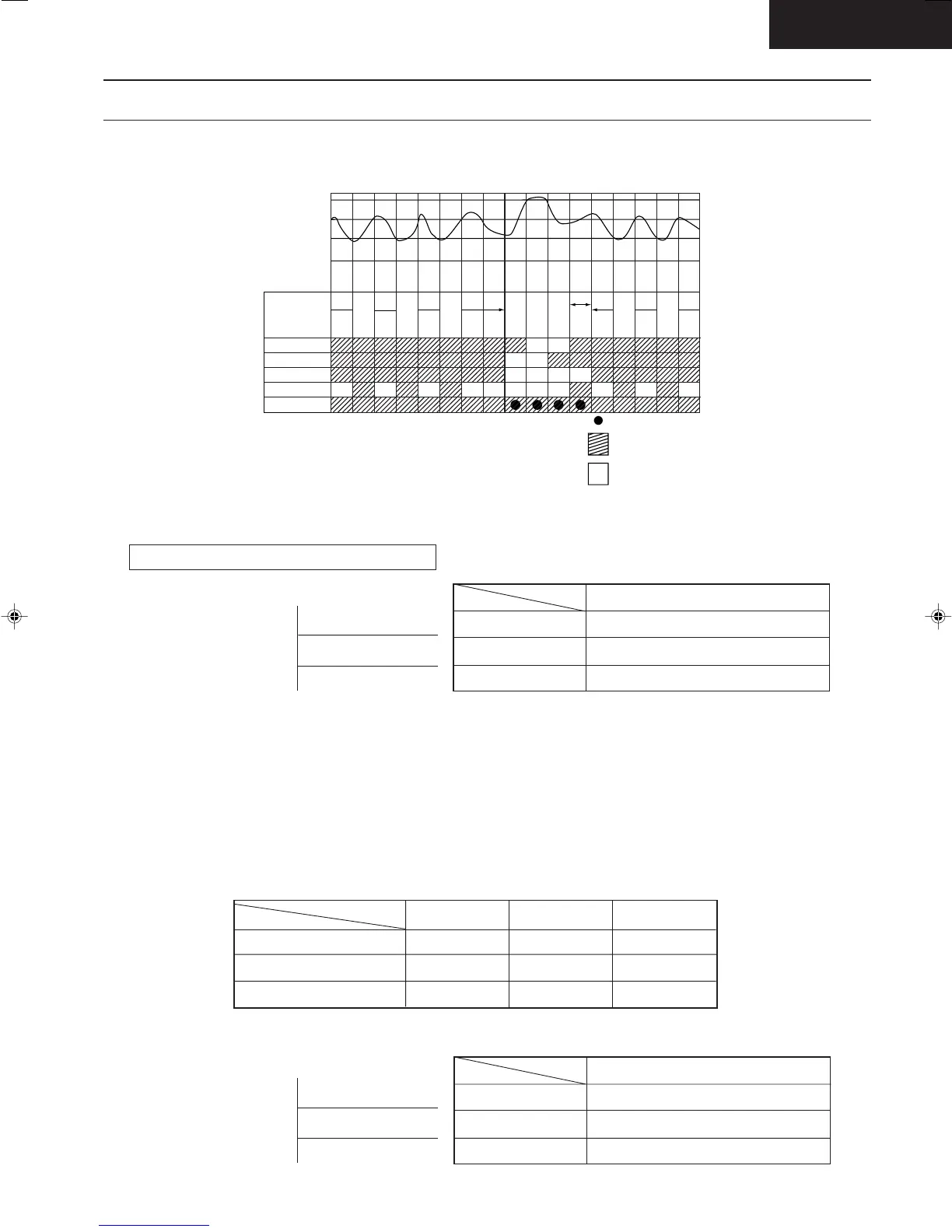

b) Overload Deicing Time Diagram
Cooling Mode
Soft Dry Mode
Heating Mode
Setting Temperature (Standard)
27°C
24°C
23°C
Cooling Mode
Soft Dry Mode
Heating Mode
Cooling Mode
Soft Dry Mode
Heating Mode
↑
Intake Air
Temperature
23°C
20°C
Setting Temperature (Standard)
25°C
22°C
21°C
4) Automatic Mode Operation
Standard for Determining Operation Mode
(a) Indoor fan operates at SLo fan speed for 20 seconds.
(b) After judging indoor air temperature, the operation mode is determined and operation continued at the mode
determined.
(c) If indoor intake air is less than 16°C, Heating mode will immediate operate.
(d) After the operation mode has been determined, the mode does not change. However, Soft Dry mode operation
includes Cooling mode operation.
(e) If Automatic Mode operation is started while the air conditioner is operating, operation will continue. If current
operation is in Cooling Mode (including the operation which is a part of Soft Dry Mode operation), it will be
maintained, for 20 seconds at SLo fan speed. Then, the selected operation mode will continue.
(f) Room temperature adjustment.
The following are added to the setting temperature specified as above.
(g) If the value for R72 is changed to 47K (Normal 10K), the mode judging temperature and standard setting
temperature is increased by 2°C.
Cooling
27°C
25°C
23°C
Soft Dry
24°C
22°C
20°C
Higher → +2°C
Standard → ±0°C
Lower → –2°C
Heating
23°C
21°C
19°C
Outdoor
Heat
Exchanger
Temp.
12°C
Tb
-3°C
-4°C
abcdef ghi j kl mnopqr
Basic Time
Compressor
4-way Valve
Indoor Fan
Outdoor Fan
Operation LED
60’
10” 20”
Max
12’
Max
4’
60’
<Description of operation>
a – i : Overload control.
i – l : Overload deicing.
l – m : Hot start (add 4 min delay timing).
m – r : Overload control.
: Blinking
Operation
Stop
Cooling Mode
Soft Dry Mode
Heating Mode
↑
Intake Air
Temperature
25°C
22°C
