Panasonic CS-A9KKD User Manual

25

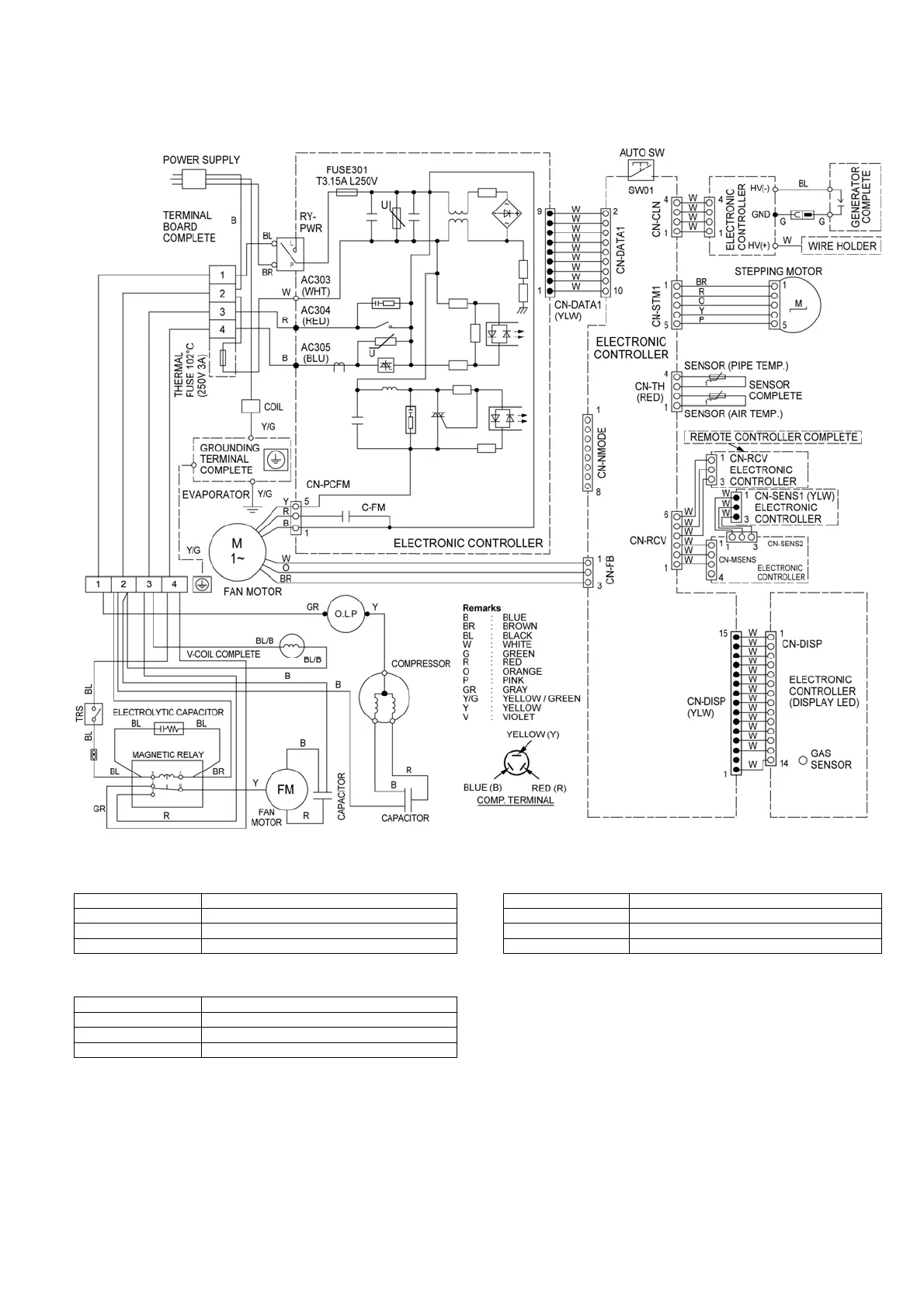

8. Wiring Connection Diagram
8.1 CS-A9KKD CU-A9KKD
Resistance of Indoor Fan Motor Windings Resistance of Compressor Windings
MODEL CS-A9KKD MODEL CU-A9KKD
CONNECTION CWA921409 CONNECTION 2PS156D3DA02
BLUE-YELLOW 457.2Ω C-R 4.228Ω
YELLOW-RED 420.5Ω C-S 3.841Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-A9KKD
CONNECTION CWA951674
BLUE-YELLOW 396Ω
YELLOW-RED 295Ω
Note: Resistance at 25°C of ambient temperature.
