Panasonic CS-A9KKD - Indoor Fan Speed Control

53

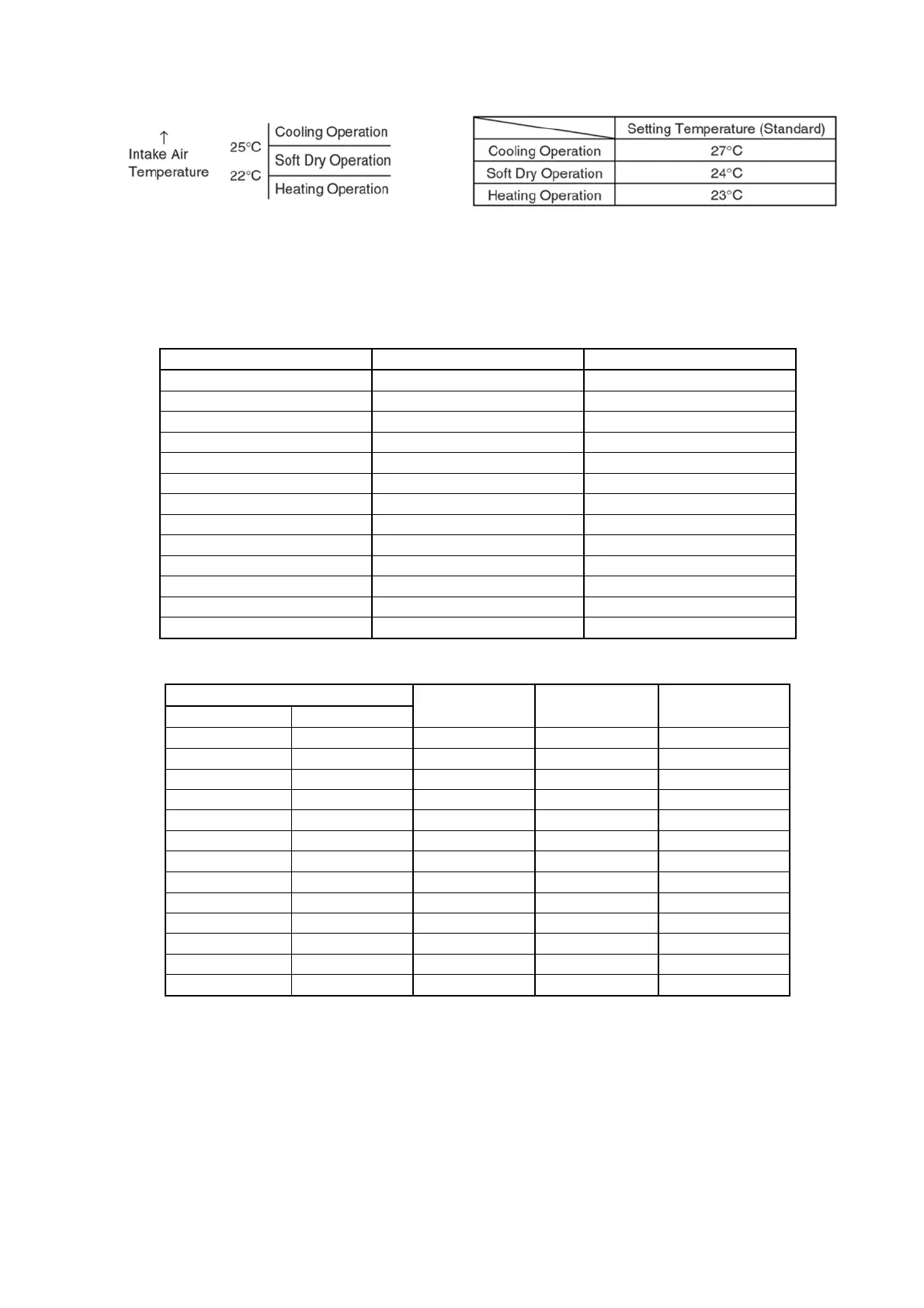

• The operation mode judging temperature and standard setting temperature can be increased by 2°C
permanently, by open the circuit of JX03 at indoor unit’s printed circuit board.
12.5 Indoor Fan Speed Control
• Indoor fan speed can be set using remote control.
12.5.1 Fan Speed Rotation Chart
Fan Speed (rpm) CS-A9KKD CS-A12KKD
SHi 1080 1120
Hi 1040 1100
Me 870 950
HLo 770 840
CLo 730 800
Lo- 690 760
SLo 670 740
SSLo 300 300
QSHi 1010 1050
QHi 970 1030
QMe 800 880
QHLo 700 770
QLo 660 730
Speed
Cool, Dry Heat
CS-A18KKD CS-A24KKD CS-A28KKD
SHi Hi 1310 1530 1540
Hi 1240 1390 1500
Me Me 1140 1270 1380
Lo+ Lo 1100 1230 1330
Lo 1040 1150 1250
Lo- Lo- 850 940 1030
SLo SLo 650 720 810
SSLo 300 300 300
QSHi QHi 1220 1440 1450
QHi 1150 1300 1410
QMe QMe 1050 1180 1290
QLo 950 1060 1160
QLo 950 1060 1160
