95
WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.
16.2 CS-A18KKD CS-A24KKD CS-A28KKD
16.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

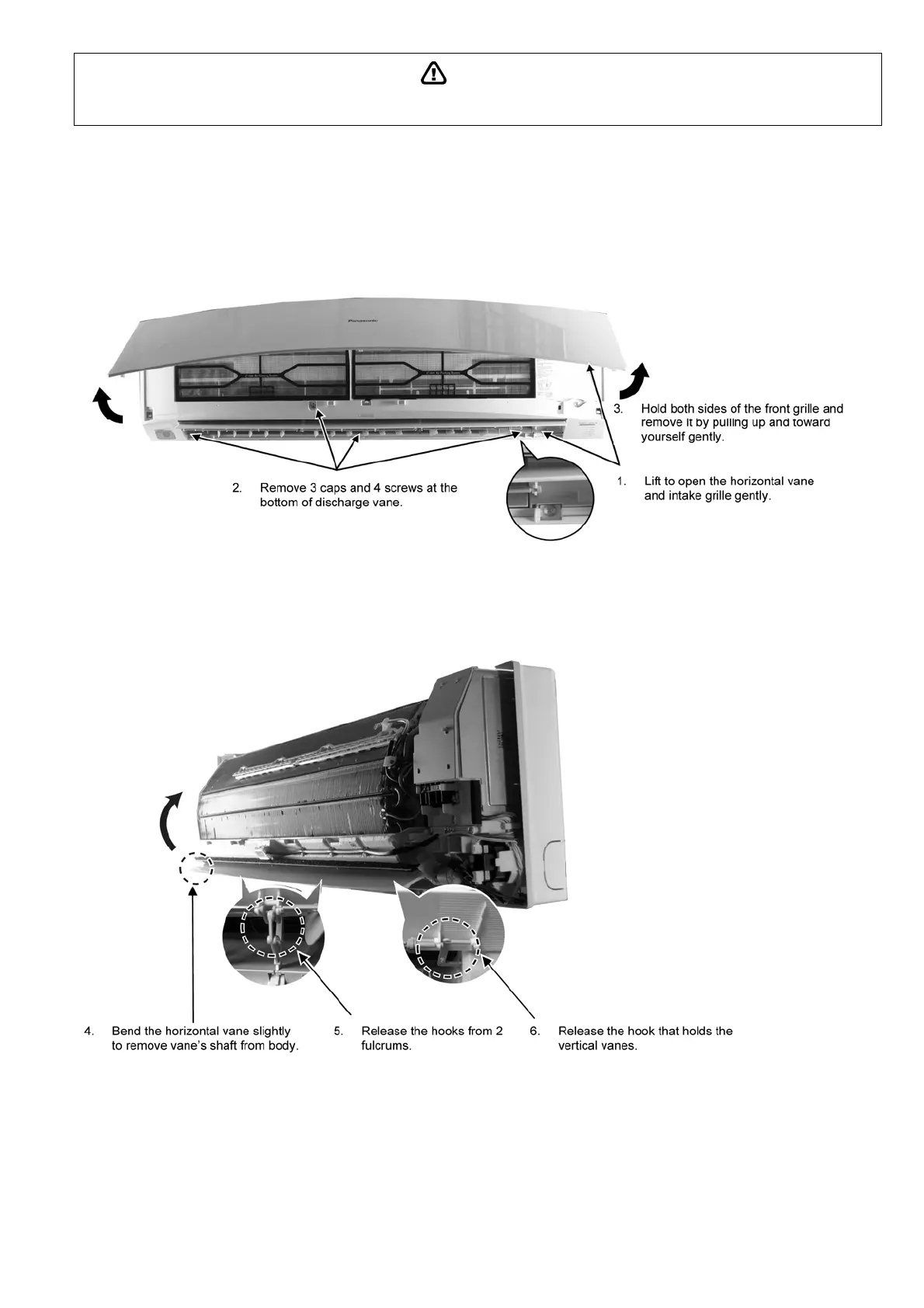

16.2.1.1 To remove front grille
Figure 12
16.2.1.2 To remove horizontal vane
Figure 13
To Next Page
