40

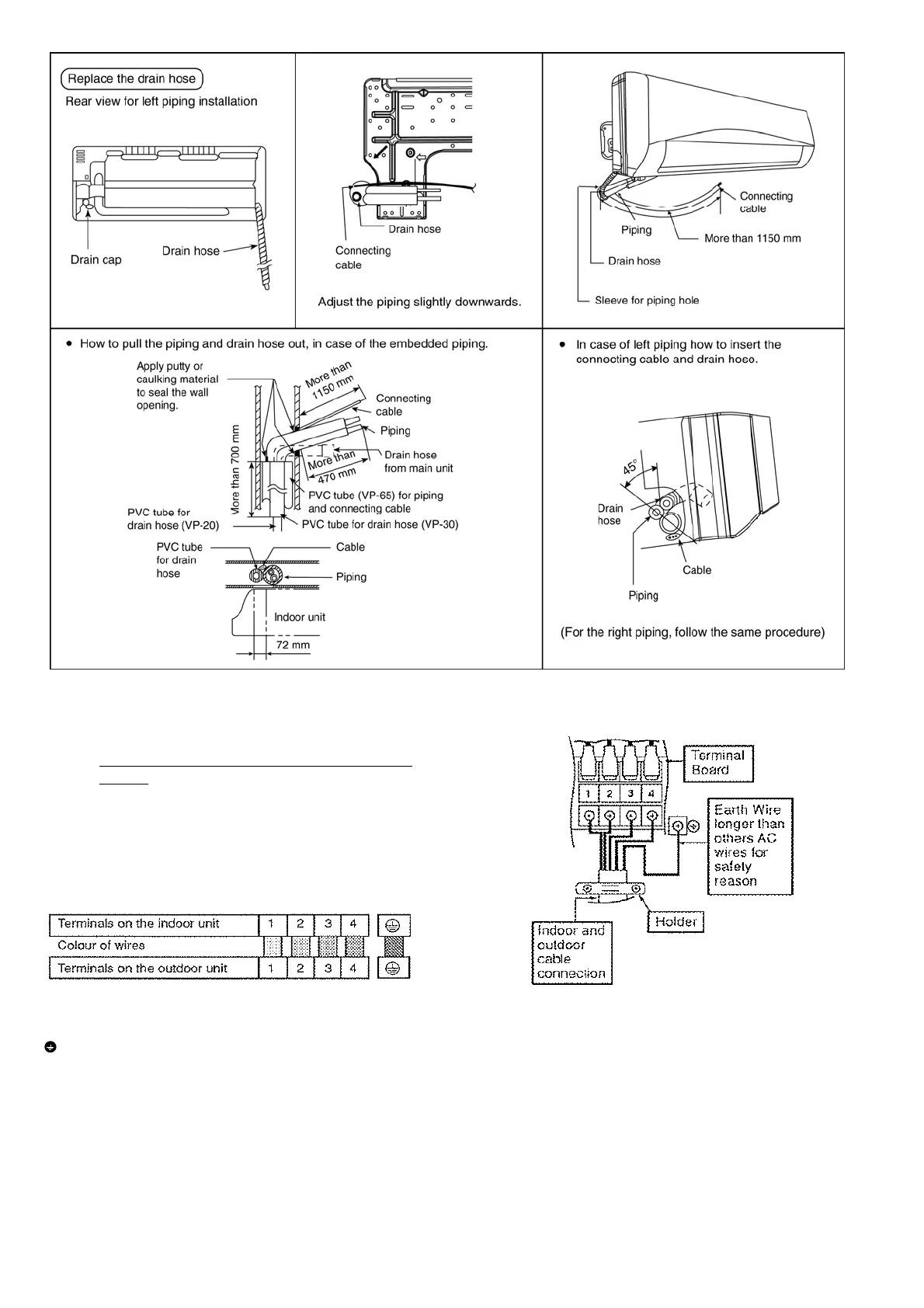

11.2.4 Connect the Cable to the Indoor Unit
1 The inside and outside connecting cable can
be connected without removing the front grille.
2 a) INDOOR POWER SUPPLY MODEL (1.0 ~
2.5HP)
Connecting cable between indoor unit and
outdoor unit shall be approved
polychloroprene sheathed 5 x 1.5mm
2
(1.0~1.5HP) or 5 x 2.5mm
2
(2.0~2.5HP)
flexible cord, type designation 245 IEC 57 or
heavier cord.
• Secure the connecting cable onto the control
board with the holder.
This equipment must be properly earthed.
To Next Page
