Panasonic CS-A9PKD Service Manual

10
Indoor CS-A28PKD
Model
Outdoor CU-A28PKD
QLo m
3
/min (ft
3
/min)
Cooling: 15.0 (528)
Heating: 15.8 (559)

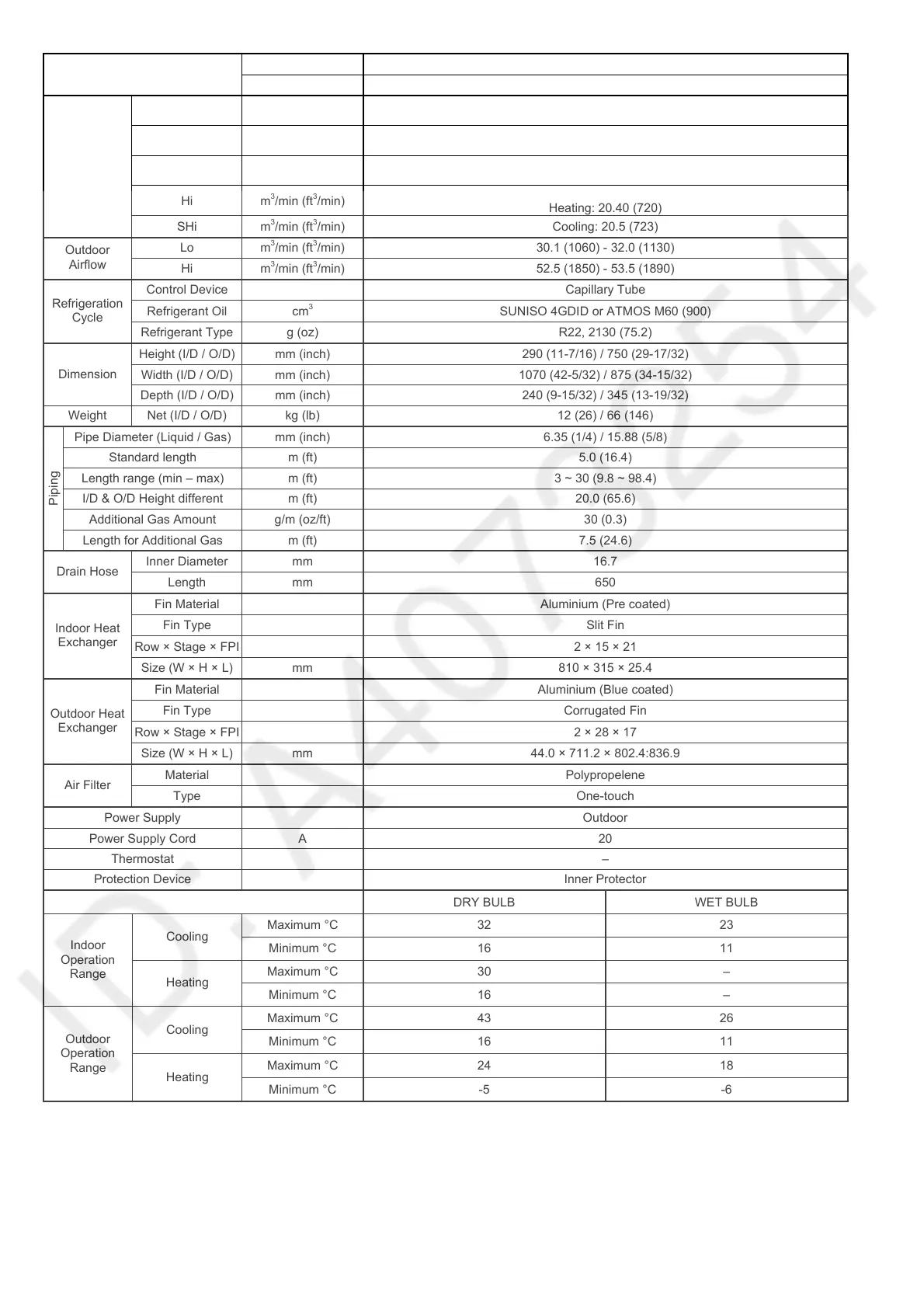

Lo m
3
/min (ft
3
/min)
Cooling: 16.2 (571)
Heating: 17.0 (602)
Me m
3
/min (ft
3
/min)
Cooling: 17.8 (628)
Heating: 17.7 (626)
Hi m
3
/min (ft
3
/min)
Cooling: 19.80 (699)
Heating: 20.40 (720)
Indoor Airflow
SHi m
3
/min (ft
3
/min) Cooling: 20.5 (723)
Lo m
3
/min (ft
3
/min) 30.1 (1060) - 32.0 (1130)
Outdoor
Airflow
Hi m
3
/min (ft
3
/min) 52.5 (1850) - 53.5 (1890)
Control Device Capillary Tube
Refrigerant Oil cm
3
SUNISO 4GDID or ATMOS M60 (900)
Refrigeration
Cycle
Refrigerant Type g (oz) R22, 2130 (75.2)
Height (I/D / O/D) mm (inch) 290 (11-7/16) / 750 (29-17/32)
Width (I/D / O/D) mm (inch) 1070 (42-5/32) / 875 (34-15/32)
Dimension
Depth (I/D / O/D) mm (inch) 240 (9-15/32) / 345 (13-19/32)
Weight Net (I/D / O/D) kg (lb) 12 (26) / 66 (146)
Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 15.88 (5/8)
Standard length m (ft) 5.0 (16.4)
Length range (min – max) m (ft) 3 ~ 30 (9.8 ~ 98.4)
I/D & O/D Height different m (ft) 20.0 (65.6)
Additional Gas Amount g/m (oz/ft) 30 (0.3)
Piping
Length for Additional Gas m (ft) 7.5 (24.6)
Inner Diameter mm 16.7
Drain Hose
Length mm 650
Fin Material Aluminium (Pre coated)
Fin Type Slit Fin
Row × Stage × FPI 2 × 15 × 21
Indoor Heat
Exchanger
Size (W × H × L) mm 810 × 315 × 25.4
Fin Material Aluminium (Blue coated)
Fin Type Corrugated Fin
Row × Stage × FPI 2 × 28 × 17
Outdoor Heat
Exchanger
Size (W × H × L) mm 44.0 × 711.2 × 802.4:836.9
Material Polypropelene
Air Filter
Type One-touch
Power Supply Outdoor
Power Supply Cord A 20
Thermostat –
Protection Device Inner Protector
DRY BULB WET BULB
Maximum °C 32 23
Cooling
Minimum °C 16 11
Maximum °C 30 –
Indoor
Operation
Range
Heating
Minimum °C 16 –
Maximum °C 43 26
Cooling
Minimum °C 16 11
Maximum °C 24 18
Outdoor
Operation
Range
Heating
Minimum °C -5 -6
1. Cooling capacities are based on indoor temperature of 27°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air
temperature of 35°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)
2. Heating capacities are based on indoor temperature of 20°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry Bulb (44.6°F
Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)
3. Specifications are subjected to change without prior notice for further improvement.
