8 Wiring Connection Diagram

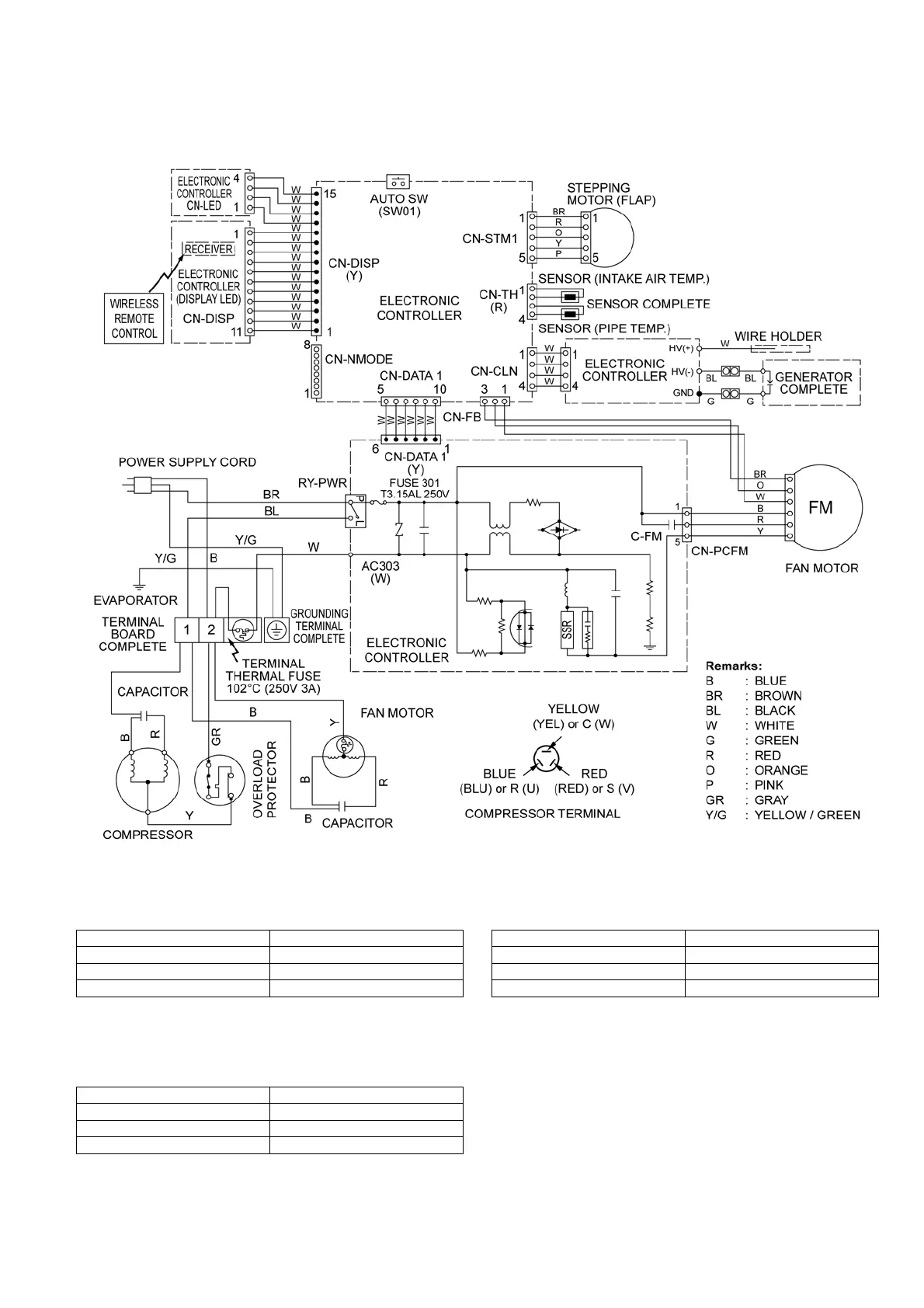

8.1. CS-C12HK CU-C12HK

Resistance of Indoor Fan Motor Windings

Note: Resistance at 25qC of ambient temperature.

Resistance of Outdoor Fan Motor Windings

Note: Resistance at 25qC of ambient temperature.

Resistance of Compressor Windings

Note: Resistance at 20qC of ambient temperature.

MODEL CU-C12HK

CONNECTION CWA921181J

BLUE-YELLOW 390.0 :

YELLOW-RED 394.6 :

MODEL CU-C12HK

CONNECTION CWA951120J

BLUE-YELLOW 200.4 :

YELLOW-RED 252.5 :

MODEL CU-C12HK

CONNECTION 2KS210D5BA02

C - R 1.930 :

C - S 2.449 :
