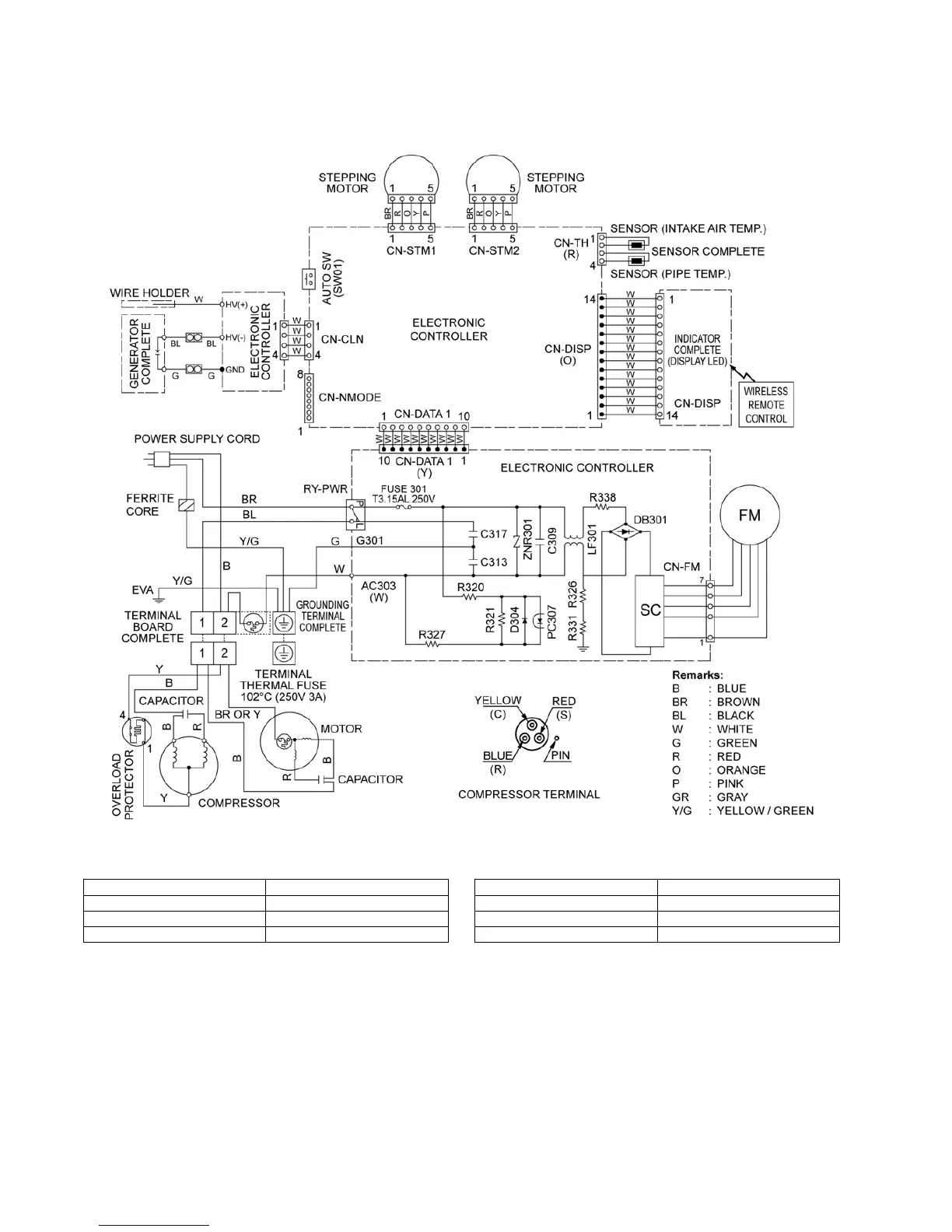

8 Wiring Connection Diagram
8.1. CS-C18HKQ CU-C18HKQ
Resistance of Outdoor Fan Motor Windings
Note: Resistance at 20qC of ambient temperature.
Resistance of Compressor Windings
Note: Resistance at 20qC of ambient temperature.
MODEL CU-C18HKQ
CONNECTION CWA951401J
BLUE-YELLOW 59.47 :
YELLOW-RED 60.95 :
MODEL CU-C18HKQ
CONNECTION 2K25S236F6A
C - R 1.505 :
C - S 1.809 :
