16

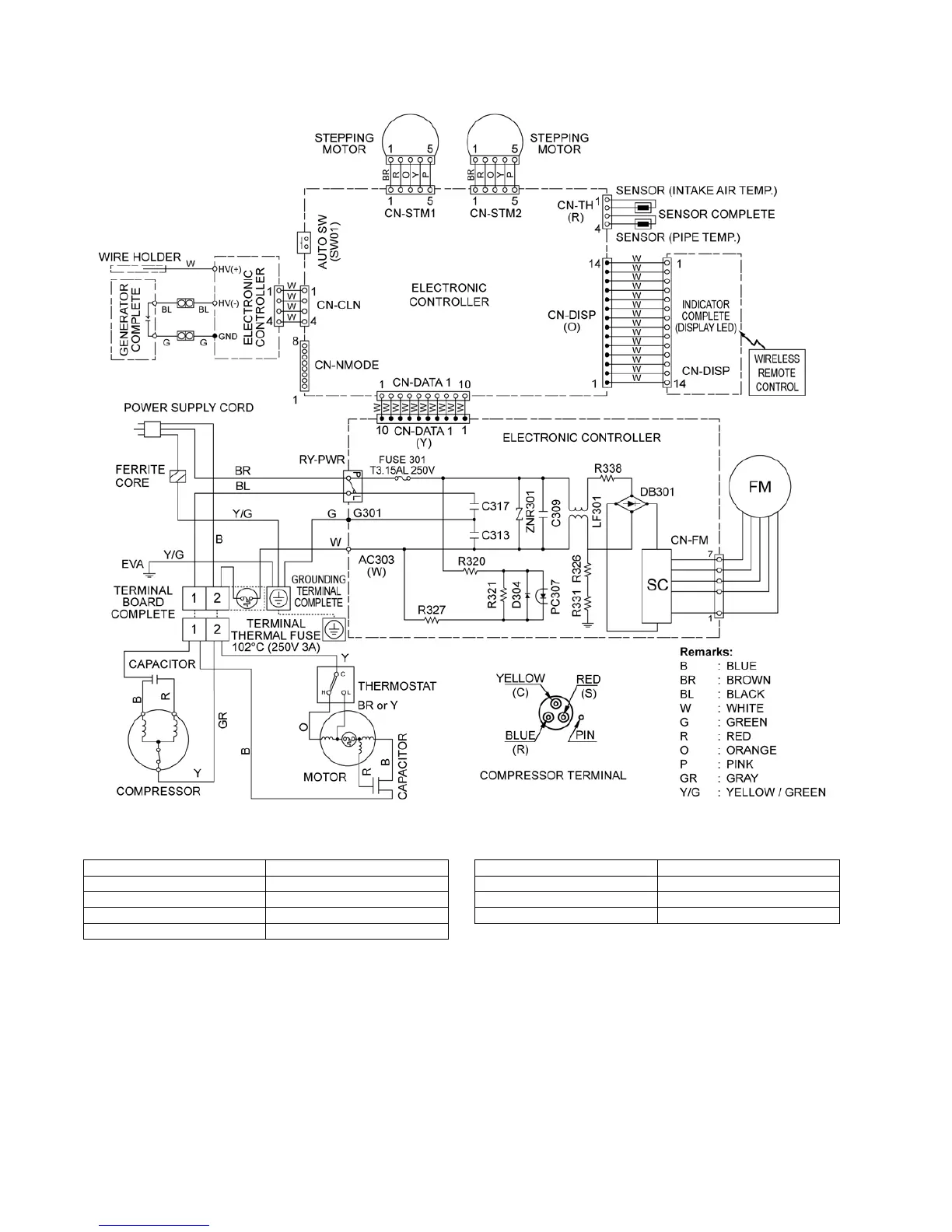

8.2. CS-C24HKQ CU-C24HKQ
Resistance of Outdoor Fan Motor Windings
Note: Resistance at 20qC of ambient temperature.
Resistance of Compressor Windings
Note: Resistance at 20qC of ambient temperature.
MODEL CU-C24HKQ
CONNECTION CWA951399J
BLUE-YELLOW 59.47 :
YELLOW-RED 60.95 :
YELLOW-ORANGE 80.58 :
MODEL CU-C24HKQ
CONNECTION 2J39S236A1A
C - R 0.933 :
C - S 1.584 :
