33

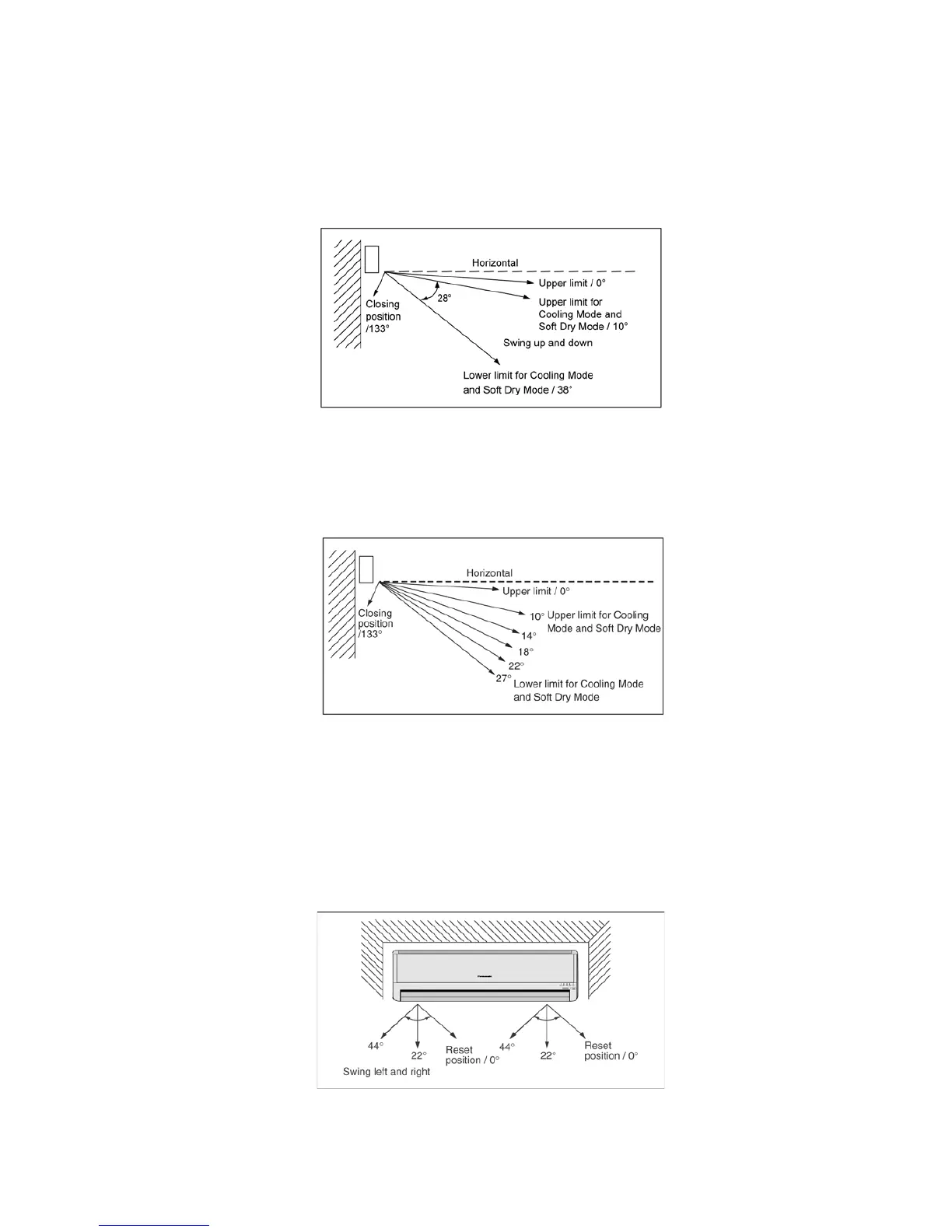

12.6. Vertical Airflow Direction Control
12.6.1. Auto Control
• When the vertical airflow direction is set to Auto using the remote control, the louver swings up and down as shown in the
diagram.
• When stopped with remote control, the discharge vent is reset, and stop at the closing position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that condition, the
louver will stop swinging and rest at the upper limit.
12.6.2. Manual Control
• When the vertical airflow direction is set to Manual using the remote control, the automatic airflow is released and the airflow
direction louver move up and down in the range shown in the diagram.
• The louver can be adjusted by pressing the button to the desired louver position.
• When stopped with remote control, the discharge vent is reset, and stop at the closing position.
12.7. Horizontal Airflow Direction Control
12.7.1. Auto Control
• When the horizontal airflow direction is set to Auto using the remote control, the vanes swings left and right as shown in the
diagram.
• When stopped with remote control, the discharge vane is reset, and stop at the reset position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that condition, the vane
will stop swinging and rest at 22q angle.
To Next Page
