85

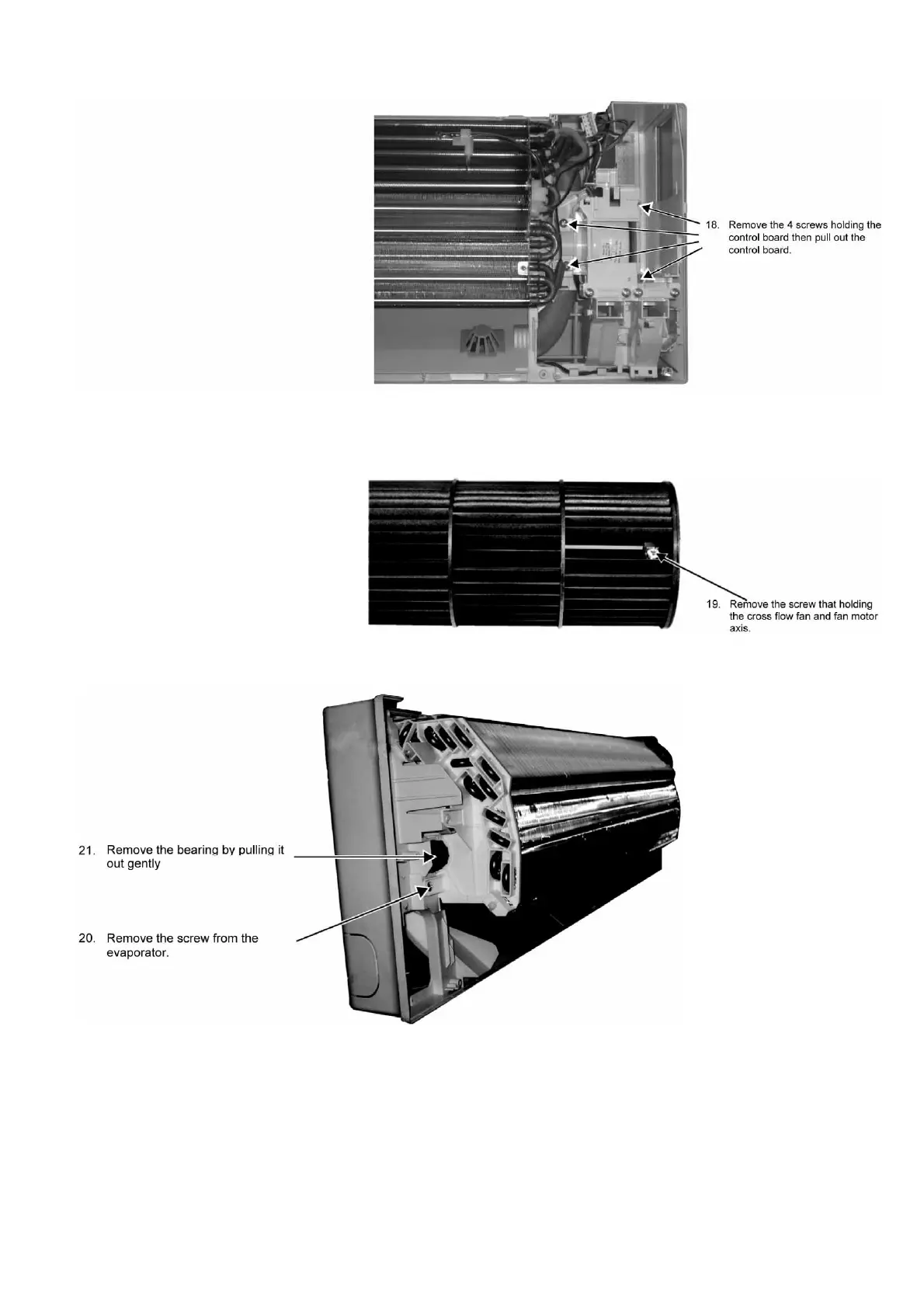

17.2.1.5 To remove control board
Figure 17
17.2.1.6 To remove cross flow fan and indoor fan motor
Figure 18
Figure 19
