12. Operation Control
12.1 Cooling Operation
Cooling operation can be set using remote control.
This operation is applied to cool down the room temperature to the setting temperature set on the remote control.
The remote control setting temperature, which takes the reading of intake air temperature sensor, can be
adjusted from 16°C to 30°C.
During cooling operation, the compressor will stop and restart as shown in figure below:

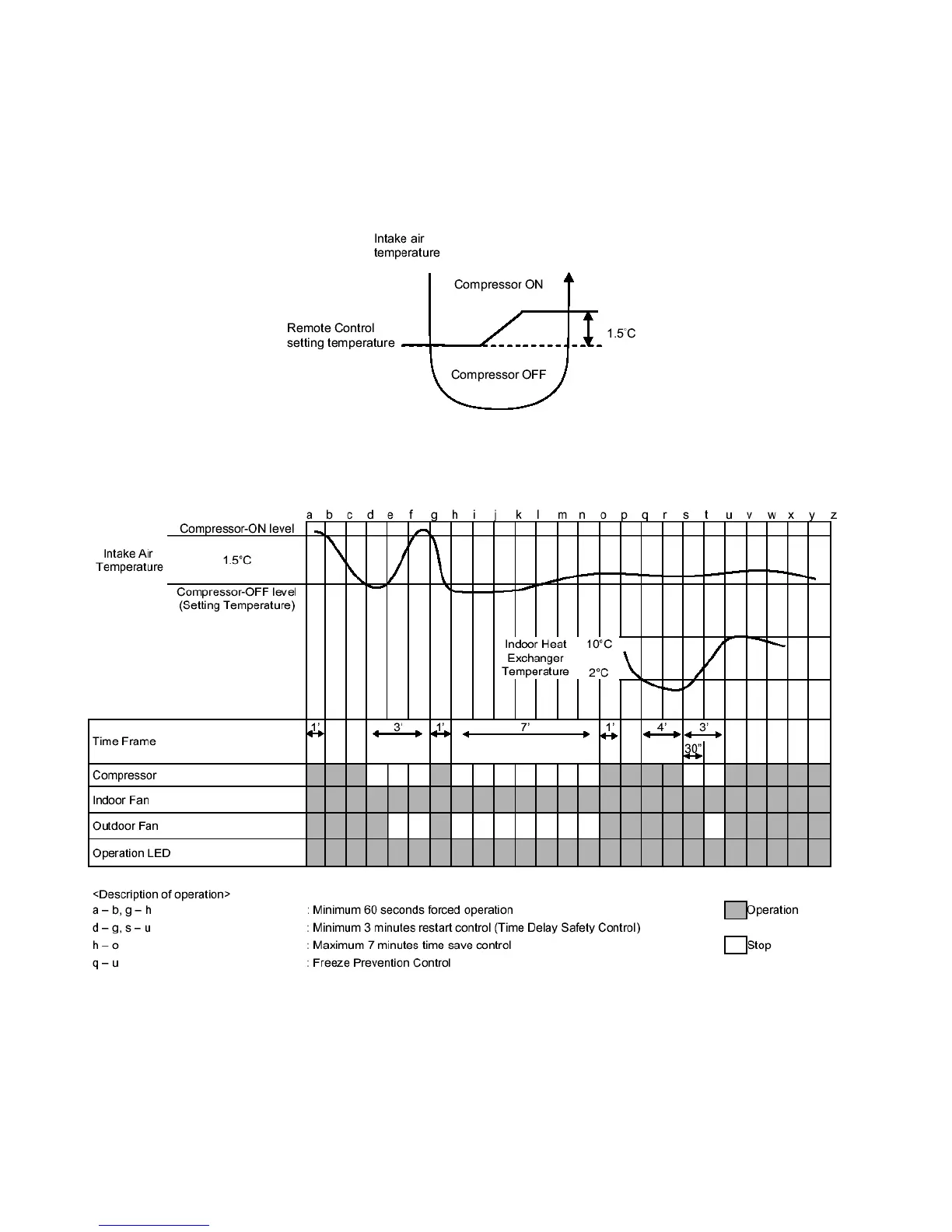

12.1.1 Cooling Operation Time Diagram (For CS-C7MKP-7 CU-C7MKP-7,
CS-C9MKP-7 CU-C9MKP-7 and CS-C12MKP-7 CU-C12MKP-7)
To Next Page
