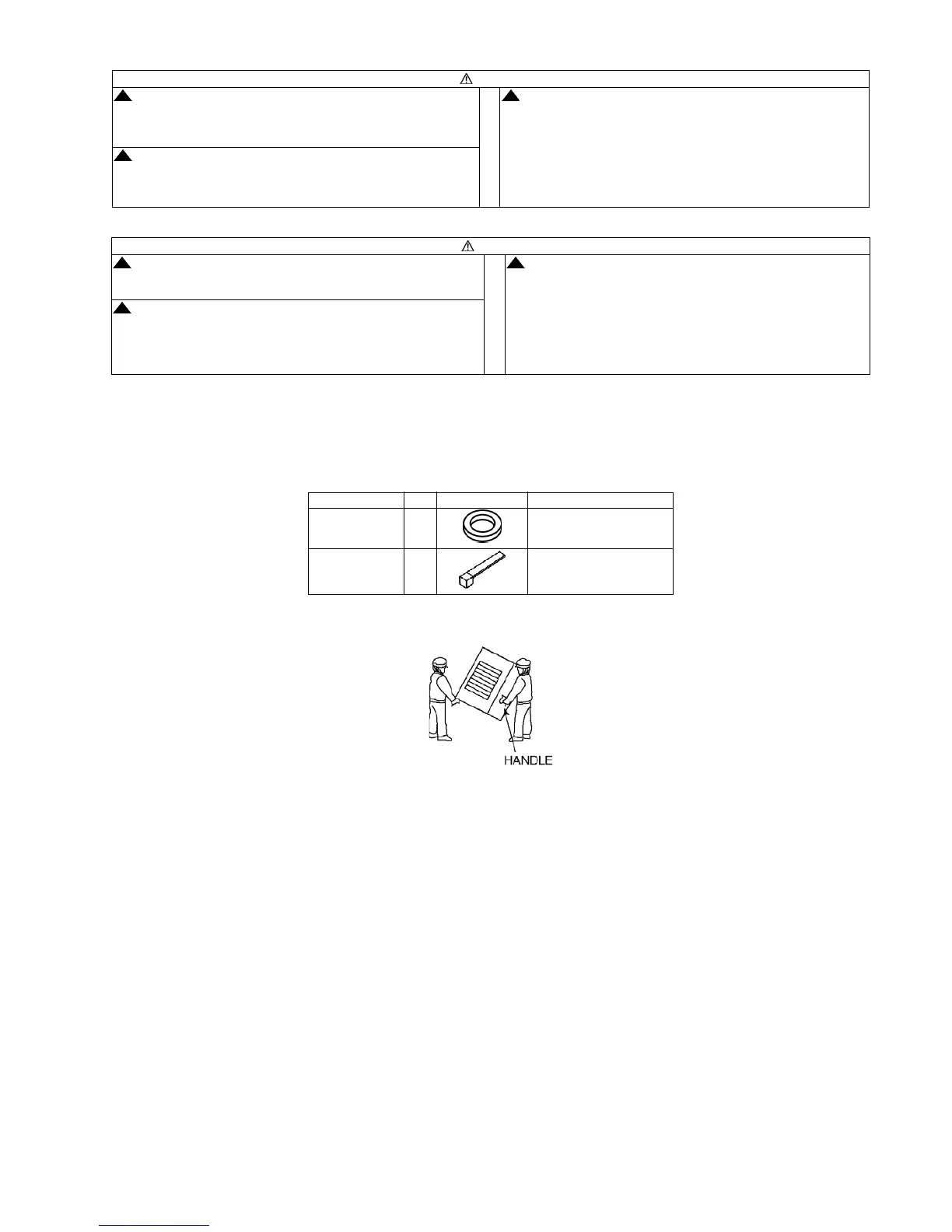

10.5.1. Accessories supplied with outdoor unit
• The following parts are supplied as accessories with each outdoor unit.
Check that all accessory parts are present before installing the outdoor unit.
10.5.2. Regarding handling
Handling the unit by hold the handle at compressor side and hold the basepan bottom at fan side.
Wiring shall be connected using specified cables and fix them
securely so that external force of the cables may not transfer to the
terminal connection section.
Imperfect connection and fixing leads to fire, etc.
Installation of Earth Leakage Current Breaker
This equipment must be installed with earth leakage
current breaker.
Otherwise, it may cause electrical shock and fire in case
the equipment breakdown or has leakage current.
When performing piping work do not mix air except for specified
refrigerant (R22) in refrigeration cycle. it causes capacity down,
and risk of explosion and injury due to high tension inside the
refrigerant cycle.
Cautions
Do not install the unit at the place where the possibility of inflamma-
ble gas leakage exists. If gas leakage should arise and the gas
builds up around the unit, such situation may lead to ignition.
Position the indoor unit and outdoor unit, power cords and indoor/
outdoor unit connection cables in a way so that they are at least 1
meter away from televisions and radios.
This is to avoid problem such as interference with picture and/or
sound. (However, note that depending on the electromagnetic
wave conditions, interference may still occur even if the separa-
tion distance is more than 1 meter.)
Drain piping should be made to ensure secure drainage according
to the manual for installation work and carry out the thermal insula-
tion to prevent the occurrence of condensation.
Imperfection in piping work lead to water leakage and may cause
the house and property, etc. to become wet.
Part name Q’ty Diagram Application
Protective
bushing
2 For protecting electrical
wires
Banding
strap
3 For tying electrical wires
together
Warnings
