55
• Power supply specifications
Please follow below table.

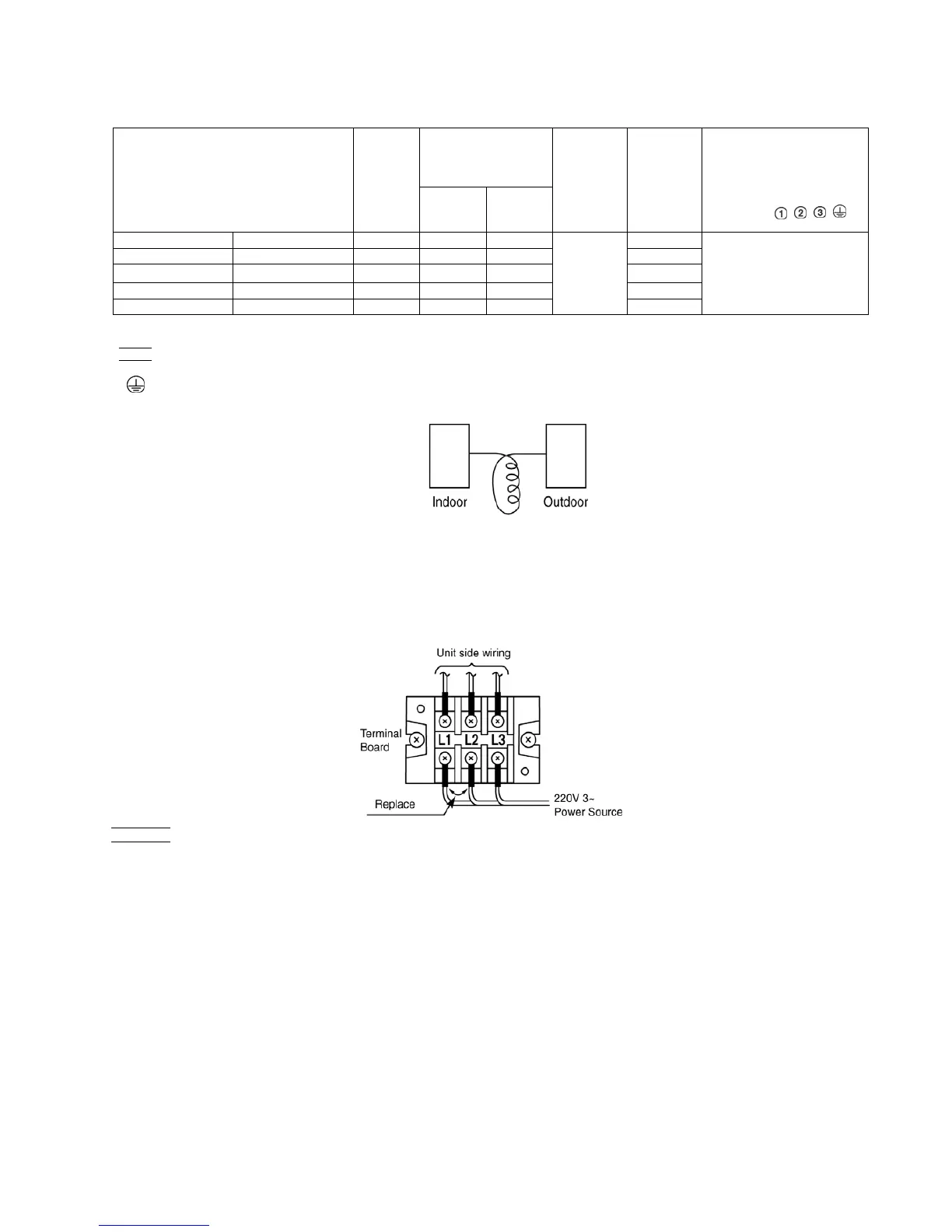

10.5.9. Connecting power supply cables
CAUTION
• For three phase model, never operate the unit by pressing the electromagnetic switch.
• Never correct the phase by switching over any of the wires inside the unit.
Model name
Leakage
current
Circuit breaker
(Minimum
Capacity)
Minimum
power
4mm
2
cable
based on
length (m)
Indoor/outdoor
unit connection
breaker
(A)
Switch
(A)
Fuse
(A)
supply
cables
power cables
(terminals , , , )
CU-D24DBQ6 220V~60Hz 30 30 30 17
CU-D28DBQ6 220V~60Hz 30 30 30 14
CU-D34DBQ7 220V 3~50/60Hz 30 30 30
4mm
2
16
2.5 mm
2
× 4
CU-D43DBQ7 220V 3~50/60Hz 40 40 40 12
CU-D50DBQ7 220V 3~50/60Hz 50 50 50 11
NOTE
1. Where ground work (earth) is carried out, do not connect the ground return to the gas pipe, water line pipe, grounded circuit of the
telephone and lightning rod, or ground circuit of other product in which earth leakage breaker is incorporated. (Such action is pro-
hibited by statute, etc.)
Make sure the indoor and outdoor connection wires are detangled. (There might be effect to receive outside noise.)
2. Use the standard power supply cables for Europe (such as H05RN-F or H07RN-F which conforms to CENELEC (HAR) rating spec-
ifications) or use the cables based on IEC standard. (245IEC57, 245IEC66)
3. Select the particular size of electrical wire for power supply cables in accordance with the standards of the given nation and region.
To Next Page
