Panasonic CS-E12NKEW Service Manual

105
16.4.8 H27 (Outdoor Air Temperature Sensor Abnormality)
Malfunction Decision Conditions
 During startup and operation of cooling and heating, the temperatures detected by the outdoor air temperature
sensor are used to determine sensor errors.
Malfunction Caused
 Faulty connector connection.
 Faulty sensor.
 Faulty PCB.

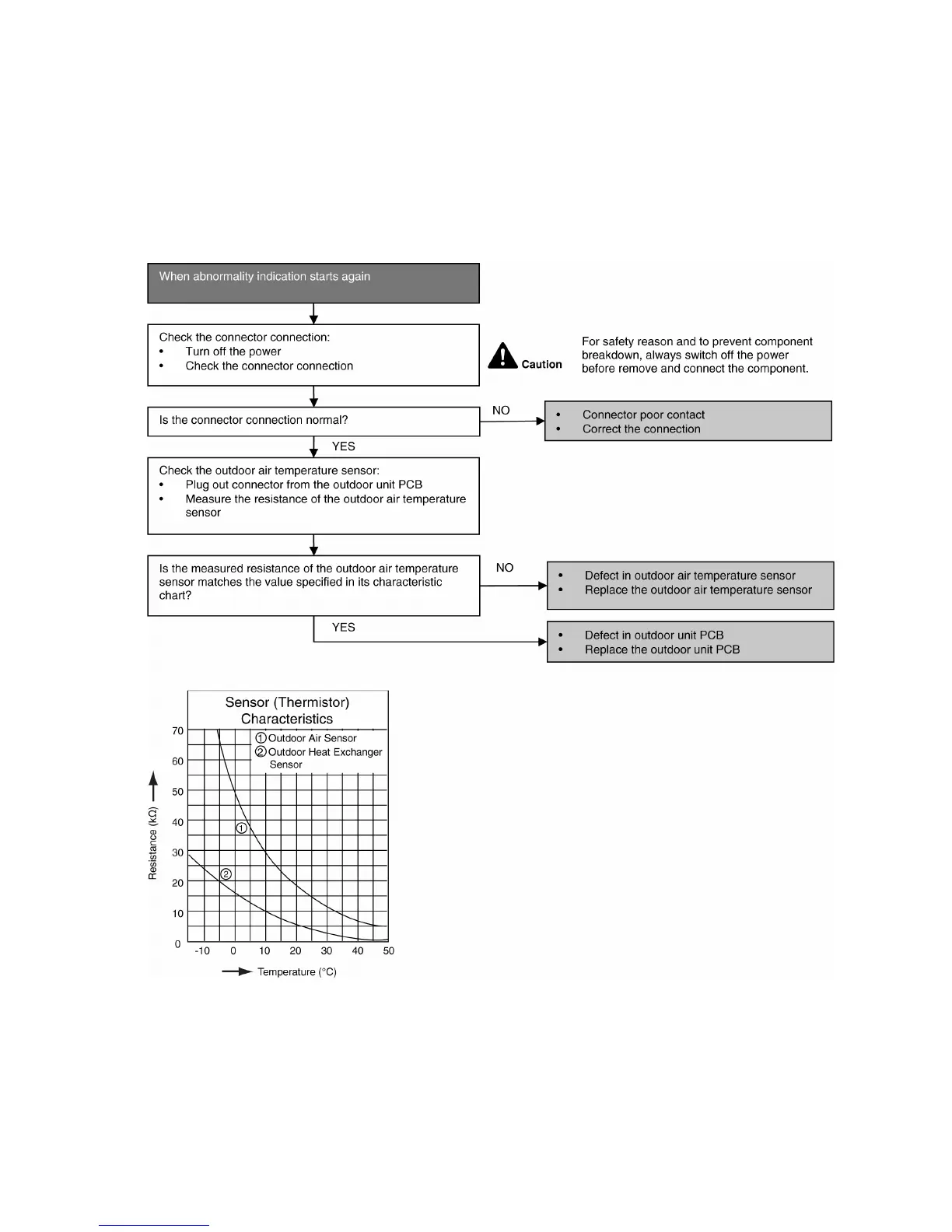

Troubleshooting

Panasonic CS-E12NKEW Specifications

General

Type	Air conditioner indoor unit
Built-in display	No
Remotely operated	Yes
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3500 W
Heating capacity in watts (max)	4400 W
Cooling energy efficiency (EER, W/W)	3.87
Heating energy efficiency (COP, W/W)	4.04
Indoor unit type	Wall-mountable
Indoor units quantity	1
Outdoor units quantity	0
Noise level (low speed)	20 dB
Noise level (high speed)	42 dB
Noise level (medium speed)	28 dB
Power requirements	AC 230 V

Weight and Dimensions

Dimensions (WxDxH)	870 x 214 x 290 mm
