Panasonic CS-E12NKEW Service Manual

99
16.4.2 H12 (Indoor/Outdoor Capacity Rank Mismatched)
Malfunction Decision Conditions
 During startup, error code appears when different types of indoor and outdoor units are interconnected.
Malfunction Caused
 Wrong models interconnected.
 Wrong indoor unit or outdoor unit PCBs mounted.
 Indoor unit or outdoor unit PCBs defective.
 Indoor-outdoor unit signal transmission error due to wrong wiring.
 Indoor-outdoor unit signal transmission error due to breaking of wire 3 in the connection wires between the indoor
and outdoor units.

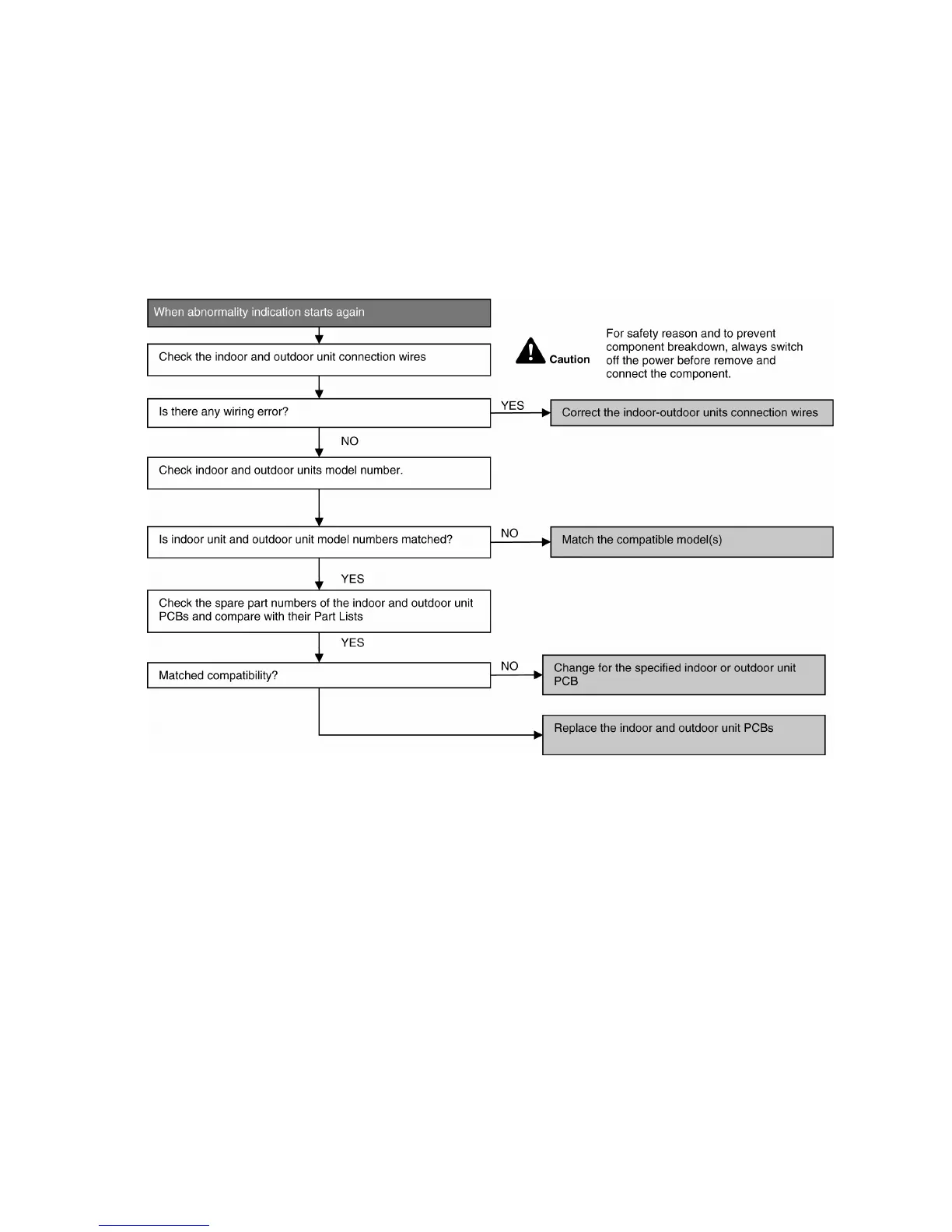

Troubleshooting

Panasonic CS-E12NKEW Specifications

General

Type	Air conditioner indoor unit
Built-in display	No
Remotely operated	Yes
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3500 W
Heating capacity in watts (max)	4400 W
Cooling energy efficiency (EER, W/W)	3.87
Heating energy efficiency (COP, W/W)	4.04
Indoor unit type	Wall-mountable
Indoor units quantity	1
Outdoor units quantity	0
Noise level (low speed)	20 dB
Noise level (high speed)	42 dB
Noise level (medium speed)	28 dB
Power requirements	AC 230 V

Weight and Dimensions

Dimensions (WxDxH)	870 x 214 x 290 mm
