 ECO NAVI stop conditions:
o When ECO NAVI button is pressed again.
o When unit is OFF by OFF/ON button.
o When unit is OFF when OFF TIMER activates.
o When unit is OFF by AUTO OFF/ON button at indoor unit.
o When POWERFUL, QUIET operation activates.
o When ◄► button is pressed.
 AUTO COMFORT / ECO NAVI initialization
Initialize indication Human Activity Sensor
1 0 – 2 seconds □ □ □
2 2 – 3 seconds ■ ■ ■
I ■ □ ■
II ■ ■ □
III ■ □ ■
IV □ ■ ■
3 3 – 70 seconds
Repeat Step I to IV
* □ Indicator ON, ■ Indicator OFF
12.13.1 Human Activity Sensor
 Area of human availability, activity level and absent is judged based on pulses by using 2 infrared sensors. The
internal setting temperature shift, fan speed and horizontal airflow direction are adjusted in order to provide
comfort environment while maintain the energy saving level.
 AUTO COMFPRT / ECO NAVI initialization
Initialize indication Human Activity Sensor
1 0 – 2 seconds □ □ □
2 2 – 3 seconds ■ ■ ■
I ■ □ ■
II ■ ■ □
III ■ □ ■
IV □ ■ ■
3 3 – 70 seconds
Repeat Step I to IV
* □ Indicator ON, ■ Indicator OFF

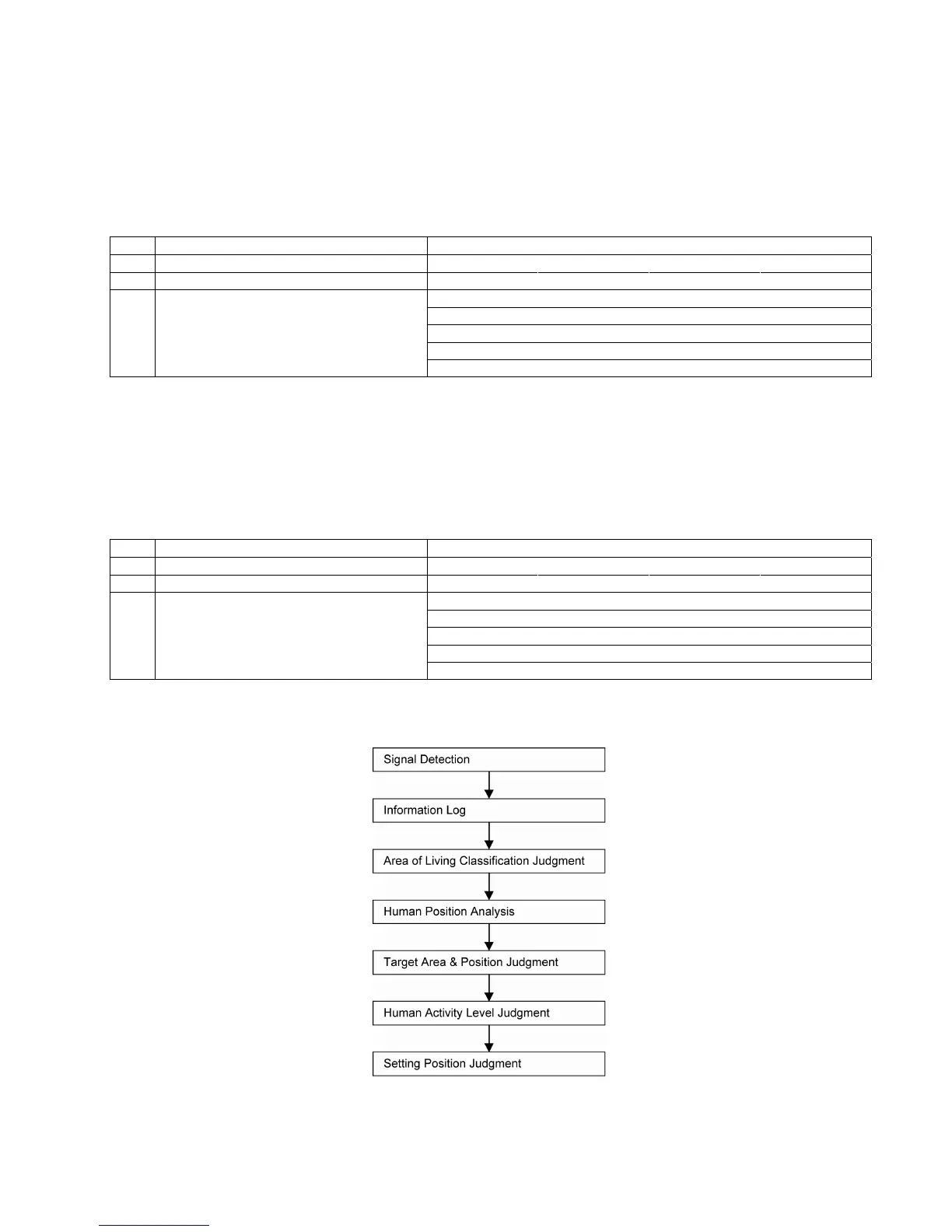

 Human activity judgment is as following

Panasonic CS-E12NKEW Specifications

General

Type	Air conditioner indoor unit
Built-in display	No
Remotely operated	Yes
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3500 W
Heating capacity in watts (max)	4400 W
Cooling energy efficiency (EER, W/W)	3.87
Heating energy efficiency (COP, W/W)	4.04
Indoor unit type	Wall-mountable
Indoor units quantity	1
Outdoor units quantity	0
Noise level (low speed)	20 dB
Noise level (high speed)	42 dB
Noise level (medium speed)	28 dB
Power requirements	AC 230 V

Weight and Dimensions

Dimensions (WxDxH)	870 x 214 x 290 mm
