Panasonic CS-E12NKEW Service Manual

175

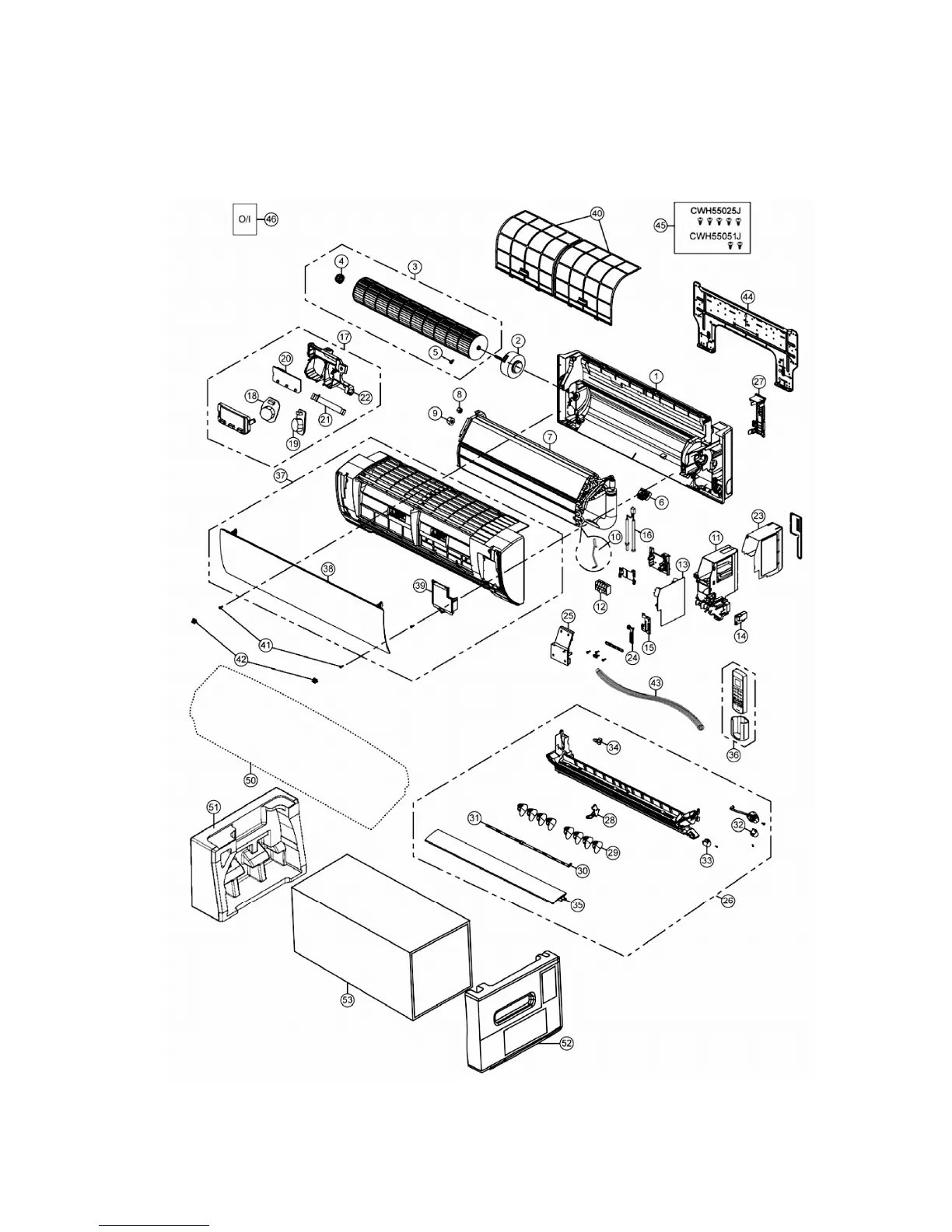

19. Exploded View and Replacement Parts List
19.1 Indoor Unit
19.1.1 CS-E7NKEW CS-E9NKEW CS-E12NKEW CS-E15NKEW
CS-XE7NKEW CS-XE9NKEW CS-XE12NKEW CS-XE15NKEW
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.

Panasonic CS-E12NKEW Specifications

General

Type	Air conditioner indoor unit
Built-in display	No
Remotely operated	Yes
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3500 W
Heating capacity in watts (max)	4400 W
Cooling energy efficiency (EER, W/W)	3.87
Heating energy efficiency (COP, W/W)	4.04
Indoor unit type	Wall-mountable
Indoor units quantity	1
Outdoor units quantity	0
Noise level (low speed)	20 dB
Noise level (high speed)	42 dB
Noise level (medium speed)	28 dB
Power requirements	AC 230 V

Weight and Dimensions

Dimensions (WxDxH)	870 x 214 x 290 mm
