Panasonic CS-E12NKEW Service Manual

171

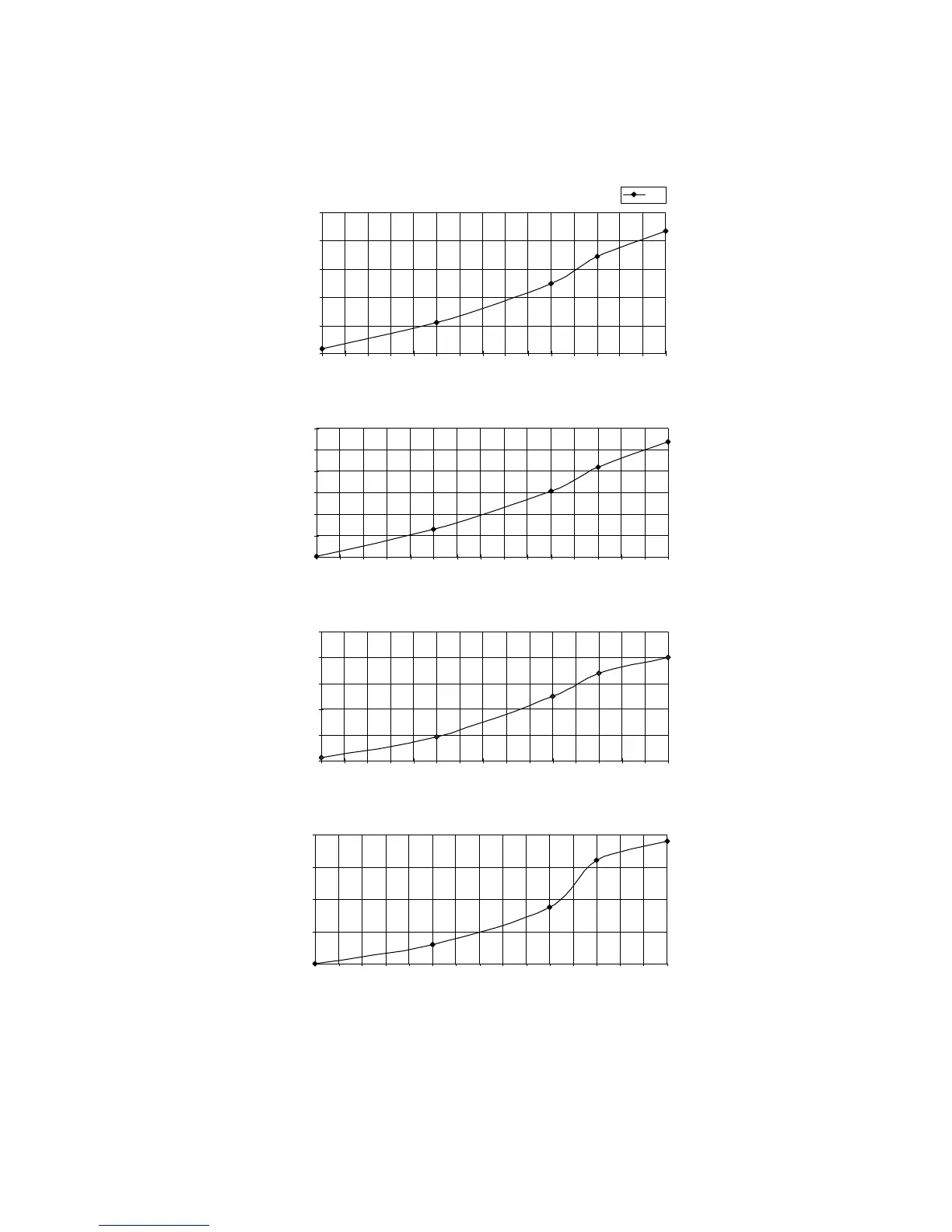

Heating Characteristic at Different Outdoor Air Temperature
 Heating Characteristic
[Condition] Indoor temperature: 20/-°C
Remote condition: High fan speed, Heat 30°C
Comp. Hz: F
h
31.000
33.000
35.000
37.000
39.000
41.000
-5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10
Outdoor Air Temperature (°C)
Outlet Air
Tempeature (°C
)
230
5.100
5.600
6.100
6.600
7.100
7.600
8.100
-5-4-3-2-1012345678910
Outdoor Air Temperature (°C)
Heating
Capacity (kW)
7.700
8.200
8.700
9.200
9.700
10.200
-5-4-3-2-1012345678910
Outdoor Air Temperature (°C)
Current
(A)
2.400
2.600
2.800
3.000
3.200
-5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10
Outdoor Air Temperature (°C)
Gas Side Piping Pressure (MPa
)

Panasonic CS-E12NKEW Specifications

General

Type	Air conditioner indoor unit
Built-in display	No
Remotely operated	Yes
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3500 W
Heating capacity in watts (max)	4400 W
Cooling energy efficiency (EER, W/W)	3.87
Heating energy efficiency (COP, W/W)	4.04
Indoor unit type	Wall-mountable
Indoor units quantity	1
Outdoor units quantity	0
Noise level (low speed)	20 dB
Noise level (high speed)	42 dB
Noise level (medium speed)	28 dB
Power requirements	AC 230 V

Weight and Dimensions

Dimensions (WxDxH)	870 x 214 x 290 mm
