65

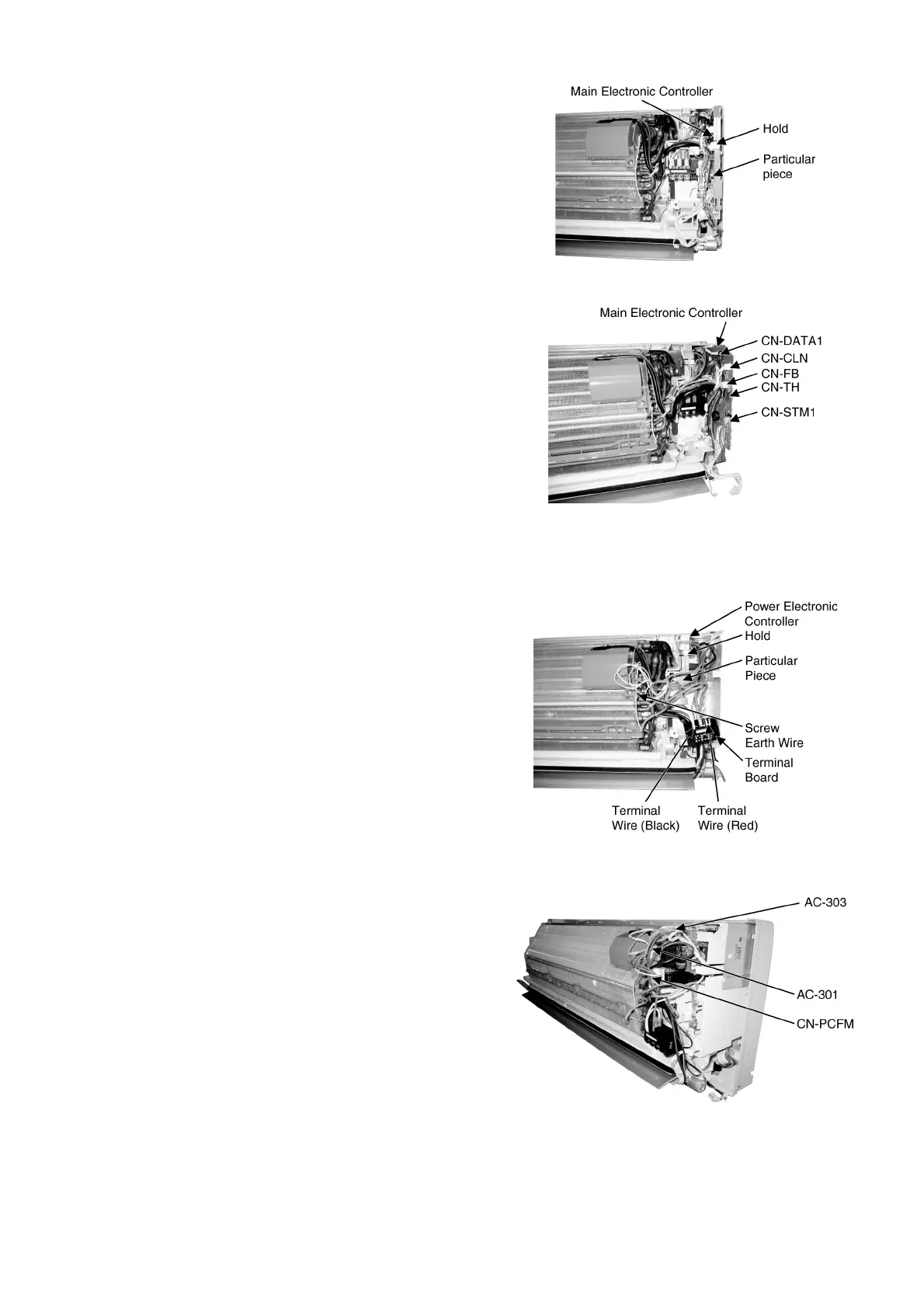

• Press the Hold to the right side, remove the Particular Piece
and slide out the Main Electronic Controller (Fig. 4).
• Release the CN-DATA1. (Fig. 5)
• Release the CN-CLN. (Fig.5)
• Release the CN-FB (for S12GK only). (Fig.5)
• Release the CN-TH. (Fig.5)
• Release the CN-STM1. (Fig.5)
Fig. 4
Fig. 5
15.1.3. To remove the Power Electronic Controller
• Release the screw for the Earth wire. (Fig. 6)
• Pull out 2 terminal wires (Black and Red) from the Terminal
Board. (Fig. 6)
• Detach the Terminal Board from the Control Board. (Fig. 6)
• Press the Hold to the left side, remove the Particular Piece
and slide out the Power Electronic Controller. (Fig. 6)
• Release the AC-301 (BRW) connector. (Fig. 7)
• Release the AC-303 (WHT) connector. (Fig. 7)
• Release the CN-PCFM connector. (Fig. 7)
Fig. 6
Fig. 7
