64

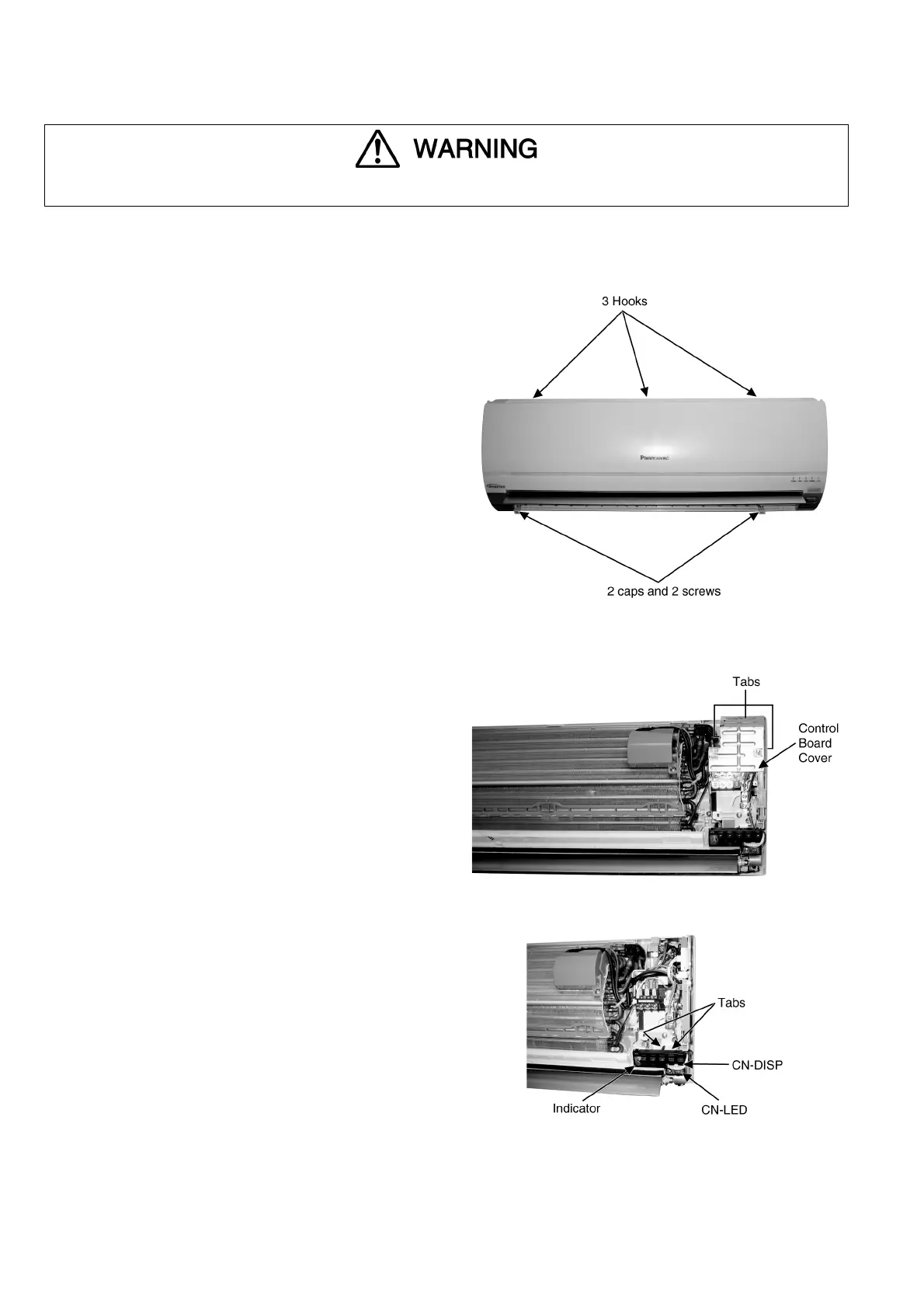

15 Disassembly and Assembly Instructions
15.1. Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor
Removal Procedures
15.1.1. To remove the Front Grille
Lift to open the vertical vent gently. Remove the 2 caps and
2 screws at the bottom of discharge vent. (Fig. 1)
Remove the Front Grille by releasing the 3 hooks at the top
of the Front Grille. Hold both sides of the Front Grille and
remove it by pulling up and towards you gently. (Fig. 1)
Fig. 1
15.1.2. To remove the Main Electronic Controller
Unhook the tabs at the Control Board to remove the Control
Board Cover. (Fig. 2)
Release the Indicator by detaching the CN-DISP and
CN-LED, then remove the Indicator from the 2 tabs. (Fig. 3)
Fig. 2
Fig. 3
High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
