15.2. Outdoor Electronic Controller Removal Procedure
15.2.1. CU-E15GKE-1
Caution! When handling electronic controller, be careful of electrostatic discharge.

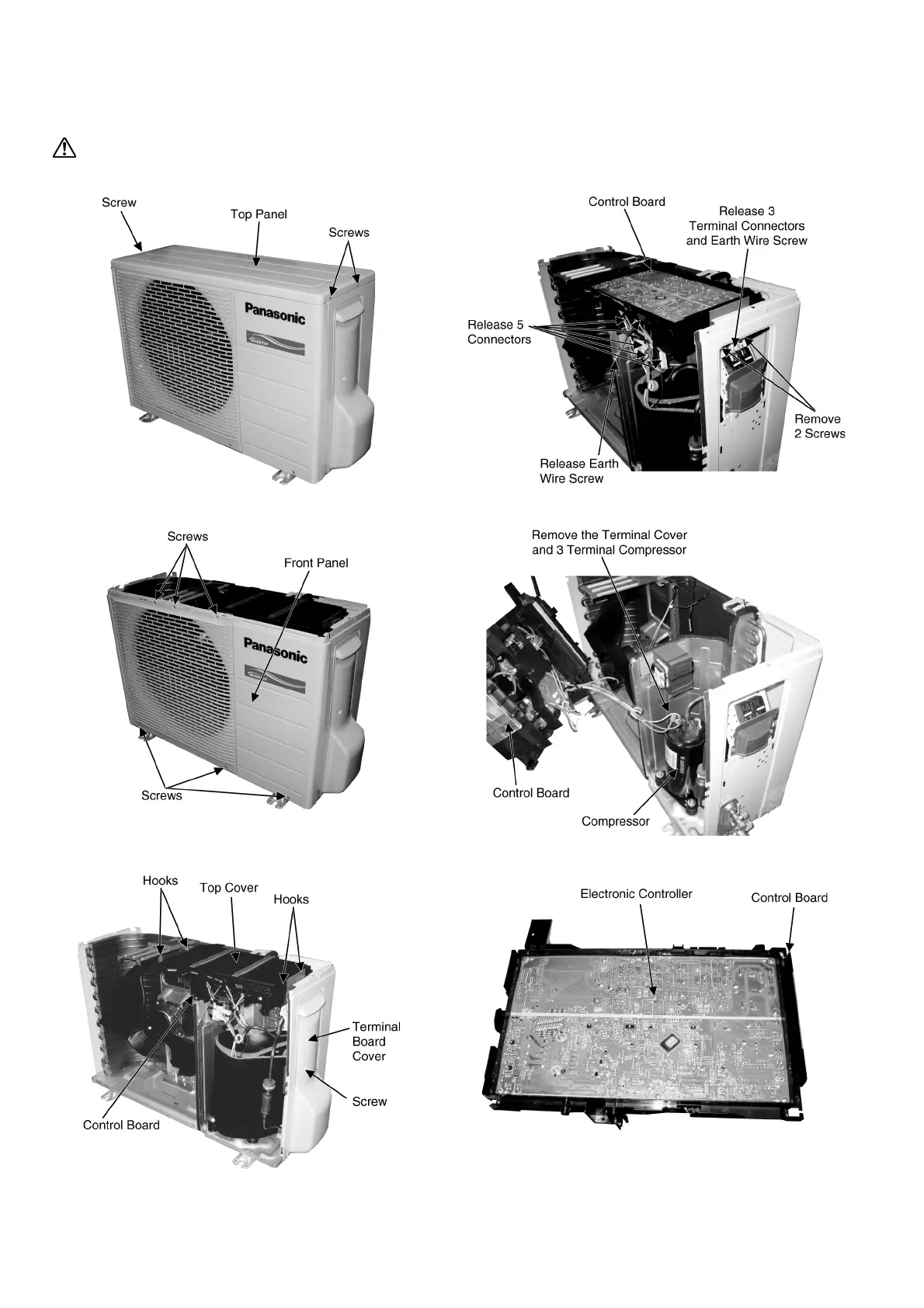

1. Remove the 3 screws of the Top Panel.
Fig. 1
2. Remove the 6 screws of the Front Panel.
Fig. 2
3. Remove the screw of the Terminal Board Cover.
4. Remove the Top Cover of the Control Board by 4 hooks.
Fig. 3
5. Remove the Control Board as follows:
Fig. 4
Fig. 5
Fig. 6
