Panasonic CS-E15LKEW Service Manual

134
17.3.2. CU-E18LKE CU-E21LKE

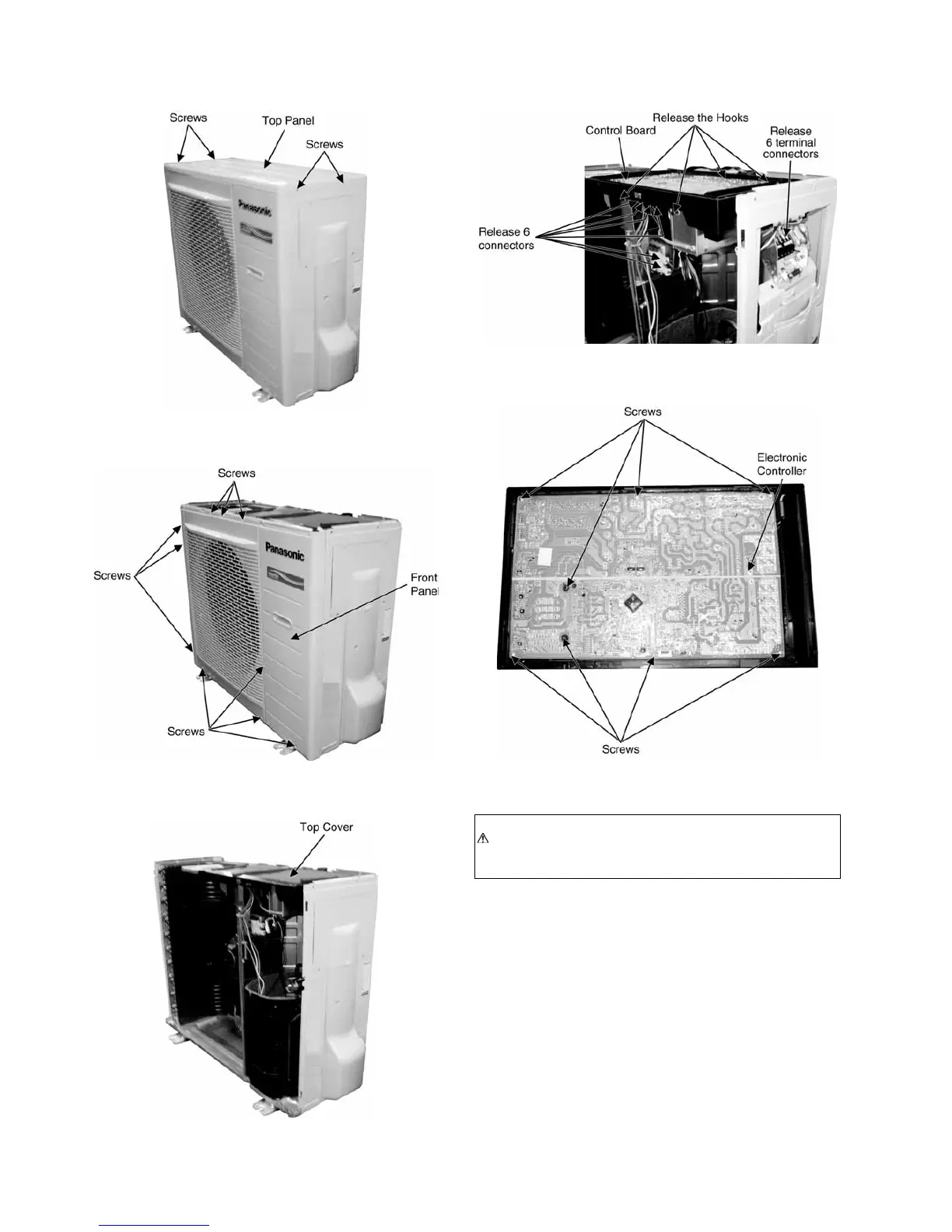

1. Remove the 4 screws of the Top Panel.
Fig. 1
2. Remove the 10 screws of the Front Panel.
Fig. 2
3. Remove the Top Cover of the Electronic Controller.
Fig. 3
4. Remove the Control Board.
Fig. 4
5. Remove the 8 screws of the Electronic Controller.
Fig. 5
Caution! When handling electronic controller, be careful of
electrostatic discharge.

Panasonic CS-E15LKEW Specifications

General

Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3610 BTU/h
Dehumidifying capacity	2.4 l/h
Heating capacity (max)	4640 BTU/h
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (max)	5400 W
Cooling energy efficiency (EER, W/W)	3.44
Heating energy efficiency (COP, W/W)	3.68
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	59 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
