Panasonic CS-E15LKEW Service Manual

61

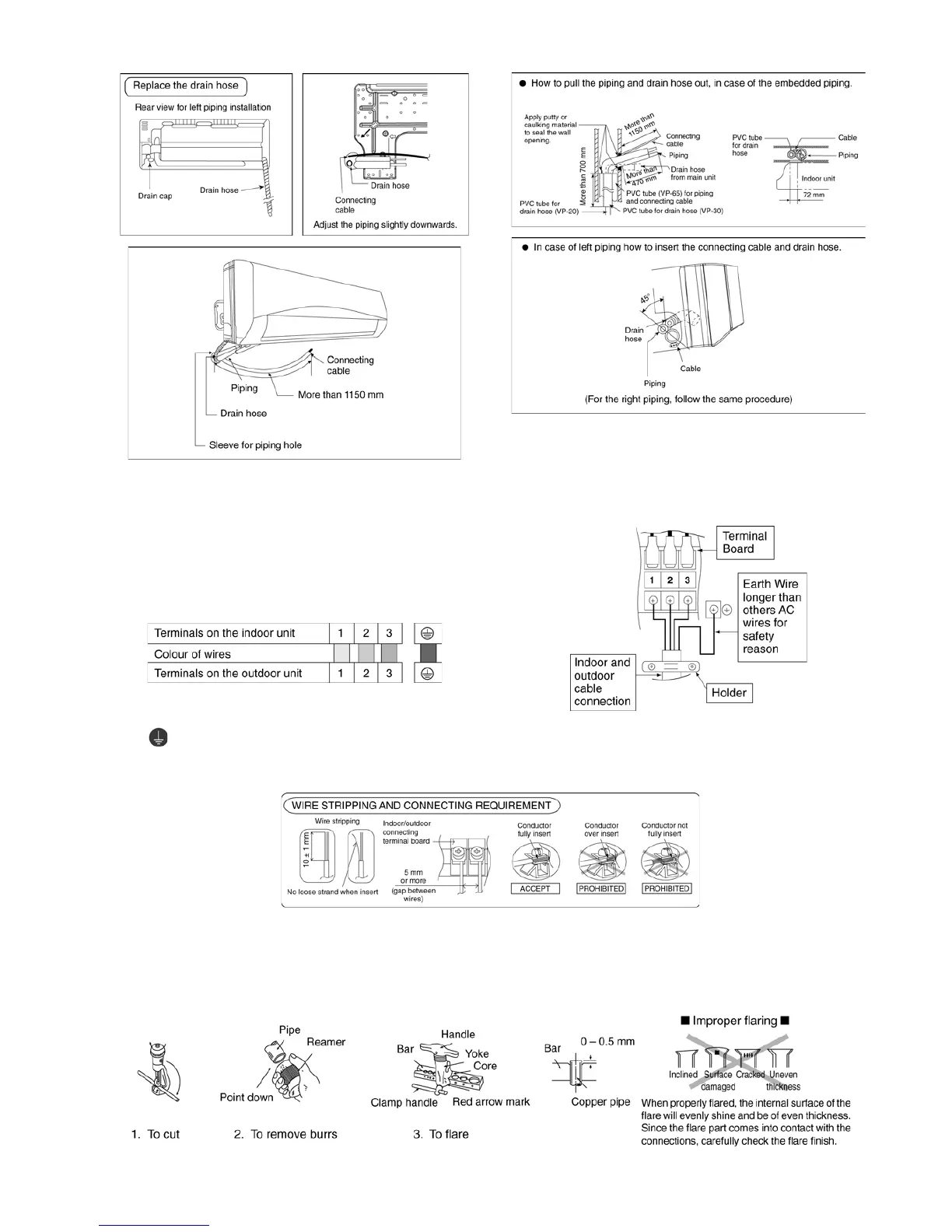

11.2.4. Connect the Cable to the Indoor Unit
1. The inside and outside connecting cable can be
connected without removing the front grille.
2. Connecting cable between indoor unit and outdoor unit
shall be approved polychloroprene sheathed 4 x 1.5 mm
2
flexible cord, type designation 245 IEC 57 or heavier
cord.
• Secure the connecting cable onto the control board with
the holder (clamper).
This equipment must be properly earthed.
• Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.
• Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.
CUTTING AND FLARING THE PIPING
1. Please cut using pipe cutter and then remove the burrs.
2. Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused.
Turn the piping end down to avoid the metal powder entering the pipe.
3. Please make flare after inserting the flare nut onto the copper pipes.

Panasonic CS-E15LKEW Specifications

General

Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3610 BTU/h
Dehumidifying capacity	2.4 l/h
Heating capacity (max)	4640 BTU/h
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (max)	5400 W
Cooling energy efficiency (EER, W/W)	3.44
Heating energy efficiency (COP, W/W)	3.68
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	59 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
