Panasonic CS-E15LKEW Service Manual

133

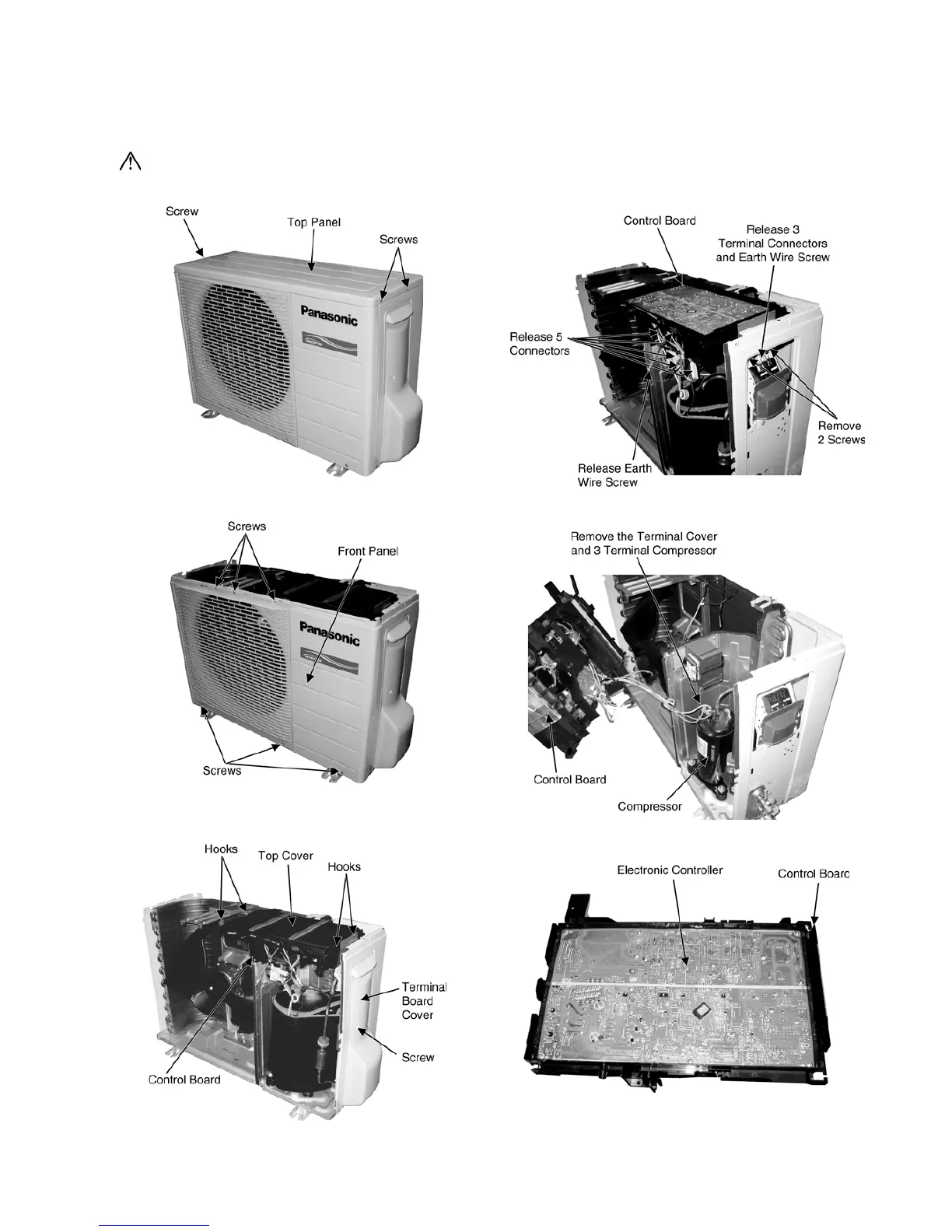

17.3. Outdoor Electronic Controller Removal Procedure
17.3.1. CU-E7LKE CU-E9LKE CU-E12LKE CU-E15LKE CU-E7LKE-3 CU-E9LKE-3
CU-E12LKE-3
Caution! When handling electronic controller, be careful of electrostatic discharge.
1. Remove the 3 screws of the Top Panel.
Fig. 1
2. Remove the 6 screws of the Front Panel.
Fig. 2
3. Remove the screw of the Terminal Board Cover.
4. Remove the Top Cover of the Control Board by 4 hooks.
Fig. 3
5. Remove the Control Board as follows:
Fig. 4
Fig. 5
Fig. 6

Panasonic CS-E15LKEW Specifications

General

Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3610 BTU/h
Dehumidifying capacity	2.4 l/h
Heating capacity (max)	4640 BTU/h
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (max)	5400 W
Cooling energy efficiency (EER, W/W)	3.44
Heating energy efficiency (COP, W/W)	3.68
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	59 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
