Panasonic CS-E15LKEW Service Manual

80
13 Operation Control (For Multi Split Connection)
During multi split connection, indoor unit’s operation controls are same with single split connection unless specified in this chapter.
13.1. Cooling operation
13.1.1. Thermostat control
• Capability supply to indoor unit is OFF (Expansion valve closed) when Intake Air Temperature — Internal setting temperature
< -2.0°C
• Capability resume supply to indoor unit after waiting for 3 minutes, if the Intake Air temperature — Internal setting temperature
> Capability supply OFF point.
13.2. Soft Dry Operation
13.2.1. Thermostat control
• Capability supply to indoor unit is OFF (Expansion valve closed) when Intake Air Temperature — Internal setting temperature
< -3.0°C
• Capability resume to indoor unit after waiting for 3 minutes, if the Intake Air temperature — Internal setting temperature
> Capability supply OFF point.
13.3. Heating Operation
13.3.1. Thermostat control
• Capability supply to indoor unit is OFF (Expansion valve closed) when Intake Air Temperature — Internal setting temperature
> +1.0°C
• During this condition, the indoor fan is stopped if compressor is ON.
• Capability resume supply to indoor unit after waiting for 3 minutes, if the Intake Air Temperature — Internal setting temperature
< Capability supply OFF point.
13.3.2. Temperature Sampling Control
• Temperature sampling is controlled by outdoor unit where room temperature for all power supply ON indoor unit could be
obtained.
• When capability supply to the indoor unit is OFF and the compressor is ON, the indoor fan motor is stopped. During this
condition, 15 seconds after sampling signal from outdoor unit is received, the indoor fan start operation at low fan speed.
• However, within first 4 minutes of capability stopped supply to the indoor unit, even sampling signal is received, the sampling
control is cancelled.
13.4. Automatic Operation
• This mode can be set using remote control and the operation is decided by remote control setting temperature, remote control
operation mode, indoor intake and outdoor air temperature.

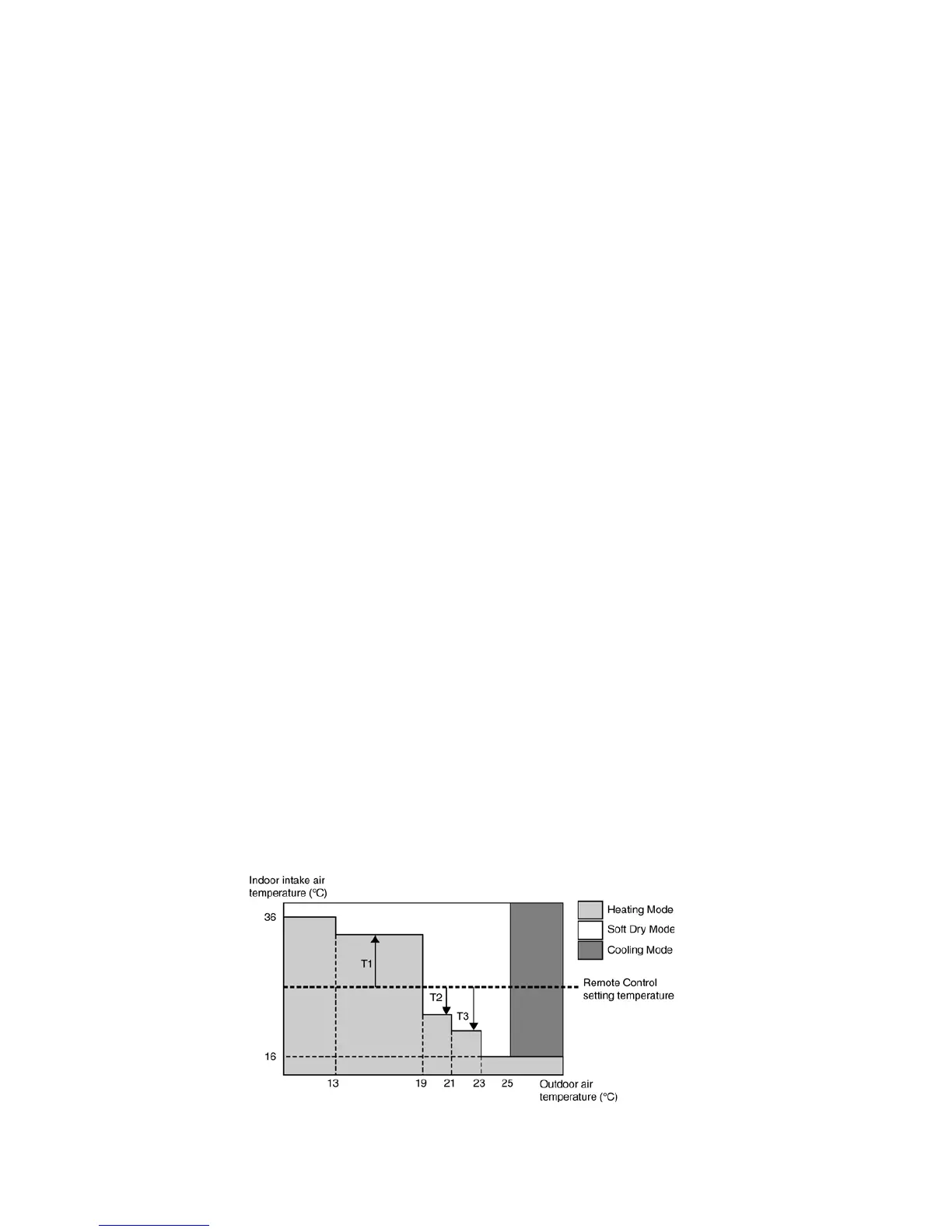

• During operation mode judgment, indoor fan motor (with speed of -Lo) and outdoor fan motor are running for 30 seconds to
detect the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.
• Every 180 minutes, the indoor and outdoor temperature is judge. Based on remote control setting temperature, the value of T1
will increase up to 10°C, T2 will decrease by 3°C and T3 will decrease up to 8°C.

Panasonic CS-E15LKEW Specifications

General

Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3610 BTU/h
Dehumidifying capacity	2.4 l/h
Heating capacity (max)	4640 BTU/h
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (max)	5400 W
Cooling energy efficiency (EER, W/W)	3.44
Heating energy efficiency (COP, W/W)	3.68
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	59 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
