Panasonic CS-E15LKEW Service Manual

71
12.11. Patrol Operation
• To monitor air dirtiness level by using Patrol sensor and to maintain air freshness by activates e-ion operation
• Patrol operation starts condition
- When the unit operation is started with “OFF/ON” button.
- When the unit stops, “Patrol” operation is selected, Patrol individual operation will start.
- During cooling only operation, “Patrol” operation is selected.
• Patrol operation stops condition (when any of the following condition is fulfilled):
- When “OFF/ON” button is selected.
- During any operation with Patrol, “PATROL/e-ion” button is pressed.
- When OFF Timer activates.

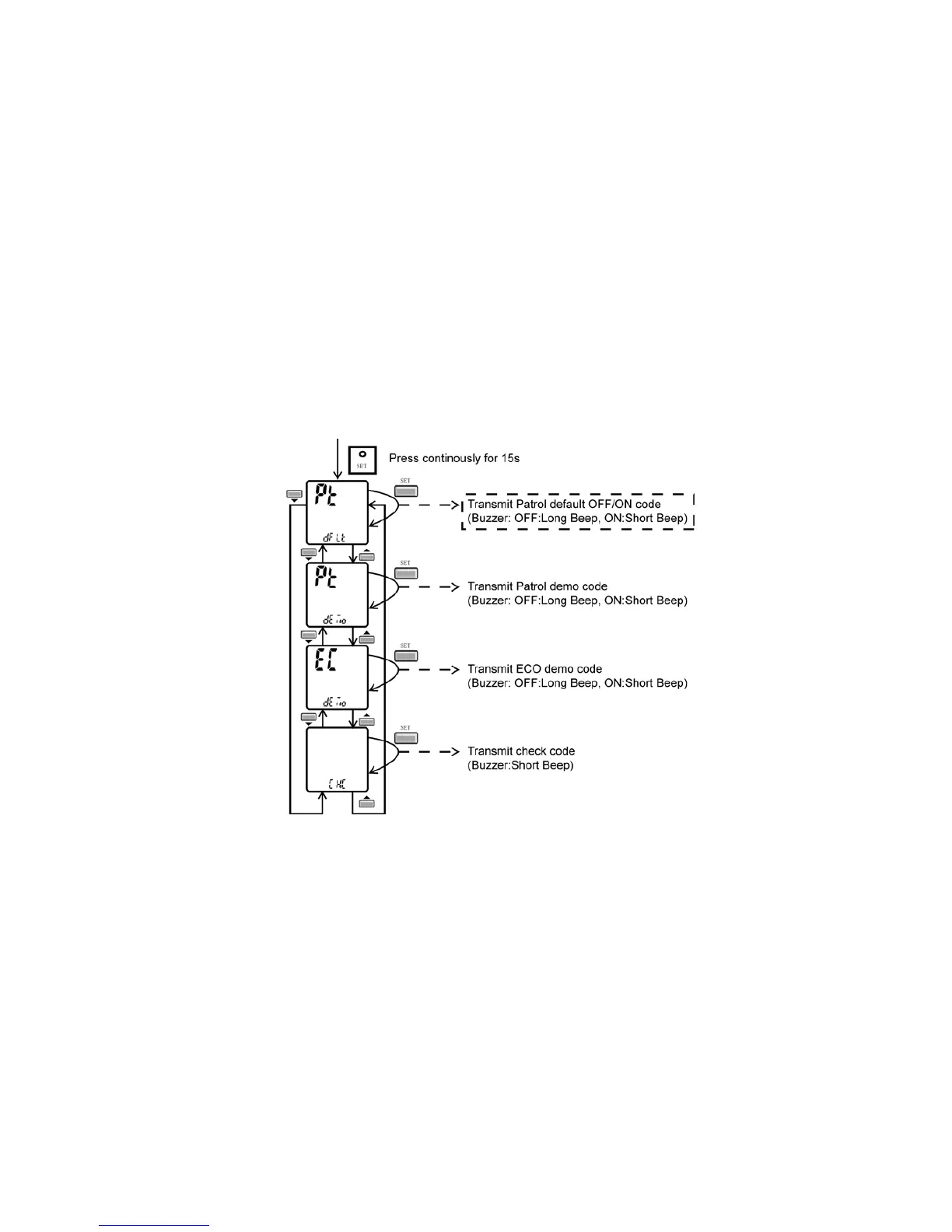

• To disable the Patrol Operation during unit starts (default) with “OFF/ON” button
- Press “Set” button continuously for 15 seconds by using pointer during Air Conditioner is OFF condition to enter internal
setting mode.
- Press “Timer Decrement” button to select “Pt dFLt”.
- Press “Timer Set” button to toggle Patrol operation default OFF/ON.
- Long “beep”: Turn OFF Patrol operation default.
- Short “beep”: Turn ON Patrol operation default.

Panasonic CS-E15LKEW Specifications

General

Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3610 BTU/h
Dehumidifying capacity	2.4 l/h
Heating capacity (max)	4640 BTU/h
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (max)	5400 W
Cooling energy efficiency (EER, W/W)	3.44
Heating energy efficiency (COP, W/W)	3.68
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	59 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
