Panasonic CS-E15LKEW Service Manual

68

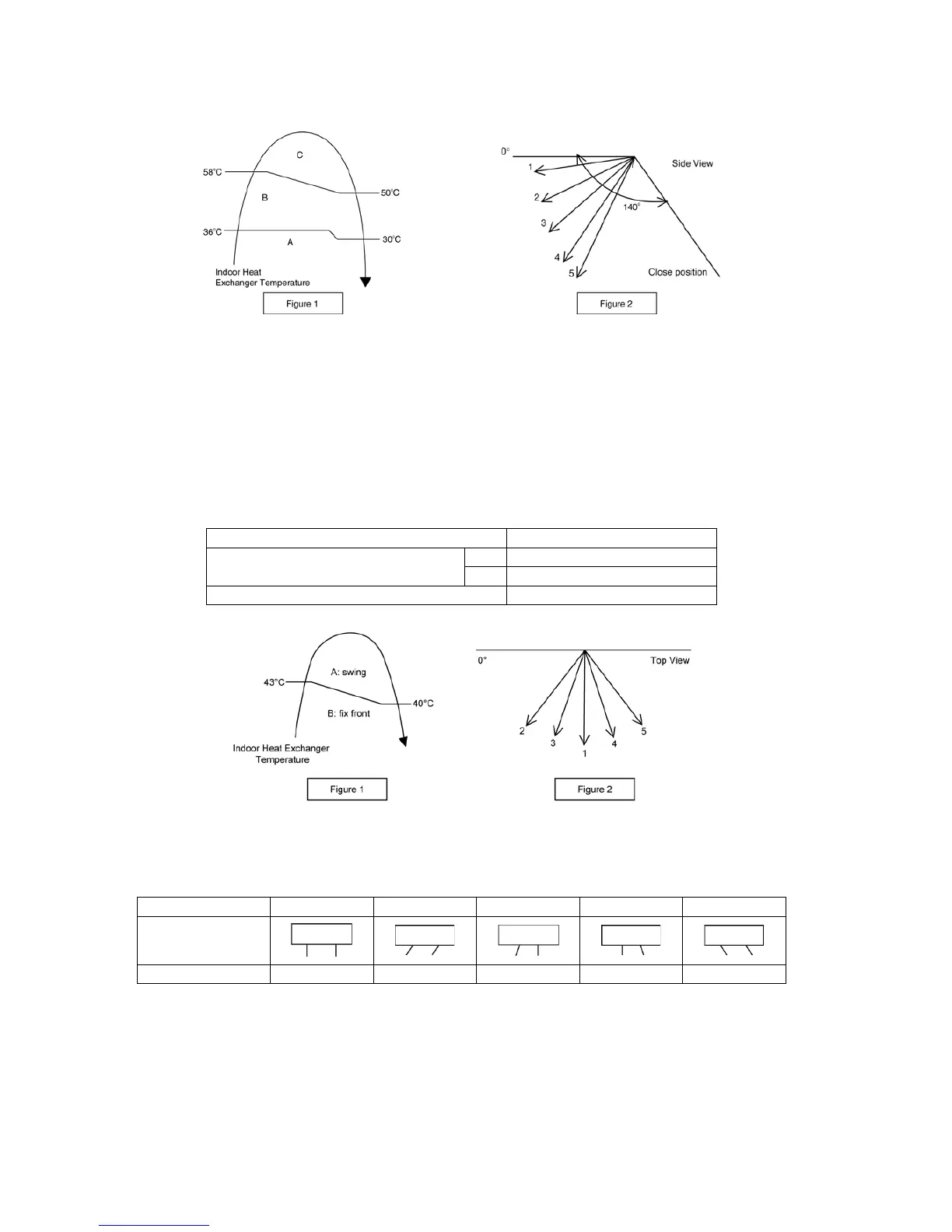

2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and the positions
of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to close
position.
12.4.2. Horizontal Airflow
12.4.2.1. E7LK E9LK E12LK E15LK
• The horizontal airflow direction louvers can be adjusted manually by hand.
12.4.2.2. E18LK E21LK
1. Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the angles as
stated below. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as
Figure 1 below. It does not swing during fan motor stop.
2. Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below and the
positions of the vane are as Figure 2 above.
Operation Mode Vane Angle (°)
Heating, with heat exchanger temperature
A 68 ~ 112
B90
Cooling and Soft Dry 68 ~ 112
Pattern 1 2 3 4 5
Airflow Direction
Patterns at Remote
Control
Vane Angle (°) 90 68 78 102 112
