Panasonic CS-E15LKEW Service Manual

78
• Other Information
- ECO Patrol, Powerful, Quiet and Mild Dry Cooling cannot be operated at the same time.
- ECO Patrol sensor initialized time is 70 seconds from power supplied to ECO Patrol sensor, or 70 seconds from the
operation start.

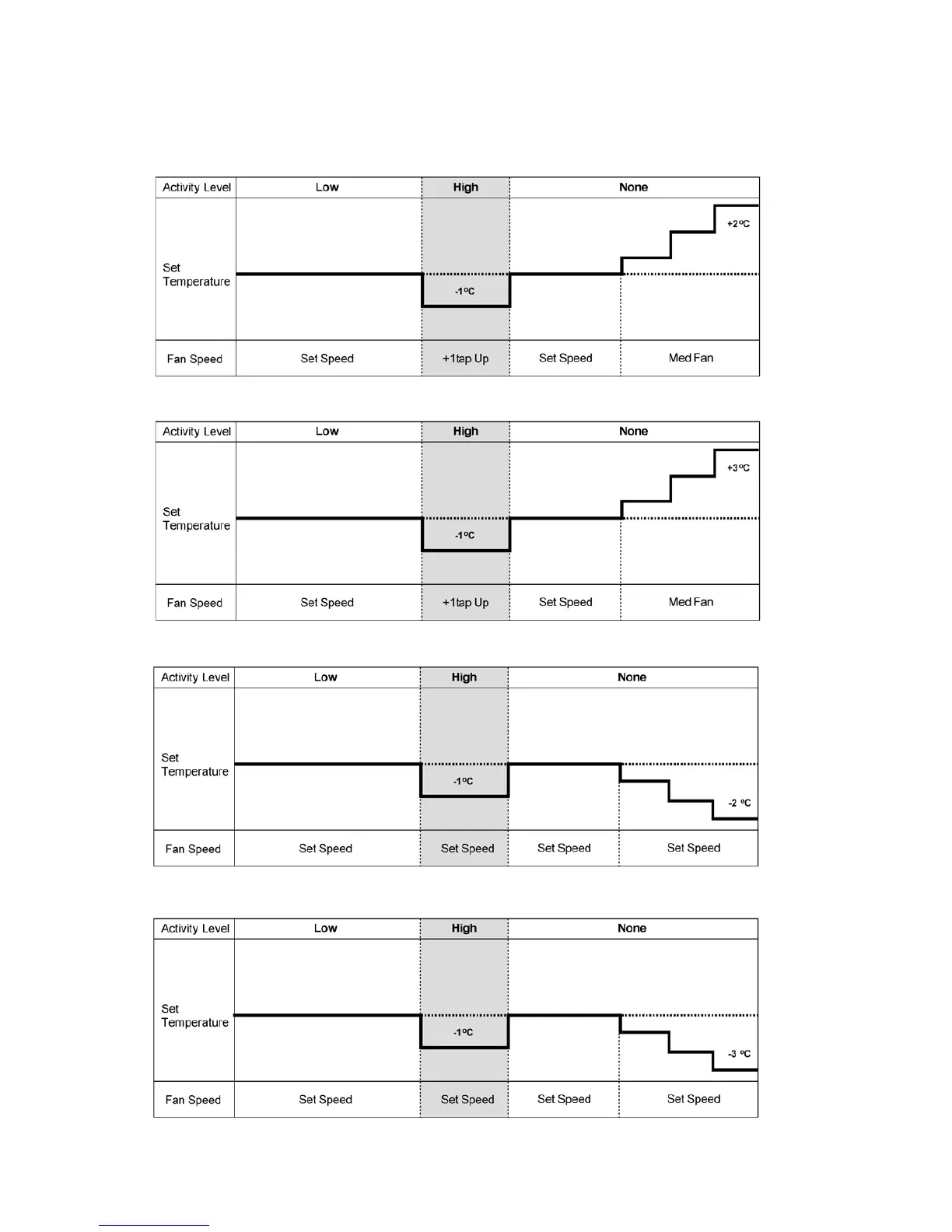

• ECO 1 Cooling/Soft Dry Operation
• ECO 2 Cooling/Soft Dry Operation
• ECO 1 Heating Operation
• ECO 2 Heating Operation

Panasonic CS-E15LKEW Specifications

General

Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3610 BTU/h
Dehumidifying capacity	2.4 l/h
Heating capacity (max)	4640 BTU/h
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (max)	5400 W
Cooling energy efficiency (EER, W/W)	3.44
Heating energy efficiency (COP, W/W)	3.68
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	59 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
