16.4.2. H12 (Indoor/Outdoor Capacity Rank Mismatched)
Malfunction Decision Conditions
During startup, error code appears when different types of indoor and outdoor units are interconnected.
Malfunction Caused
• Wrong models interconnected.
• Wrong indoor unit or outdoor unit PCBs mounted.
• Indoor unit or outdoor unit PCBs defective.
• Indoor-outdoor unit signal transmission error due to wrong wiring.
• Indoor-outdoor unit signal transmission error due to breaking of wire 3 in the connection wires between the indoor and outdoor
units.

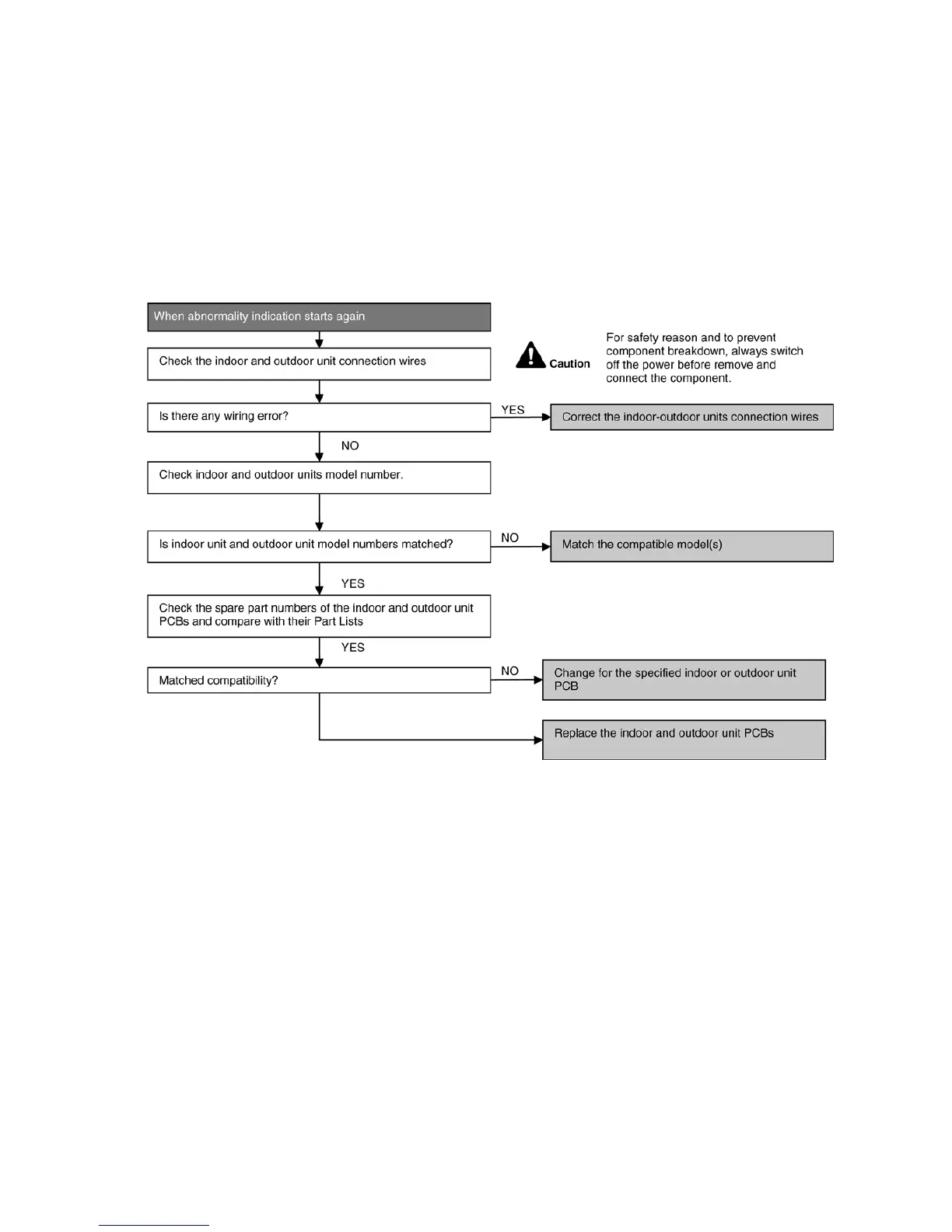

Troubleshooting

Panasonic CS-E15LKEW Specifications

General

Thermostat range	- °C
Hose length (max)	15 m
Remotely operated	Yes
Cooling capacity (max)	3610 BTU/h
Dehumidifying capacity	2.4 l/h
Heating capacity (max)	4640 BTU/h
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (max)	5400 W
Cooling energy efficiency (EER, W/W)	3.44
Heating energy efficiency (COP, W/W)	3.68
Indoor unit type	Wall-mountable
Airflow	750 m³/h
Noise level	59 dB
Power requirements	230 V

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	780 x 204 x 290 mm
