- Drill the piping hole at either the right or the left and the hole
should be slightly slanted to the outdoor side.

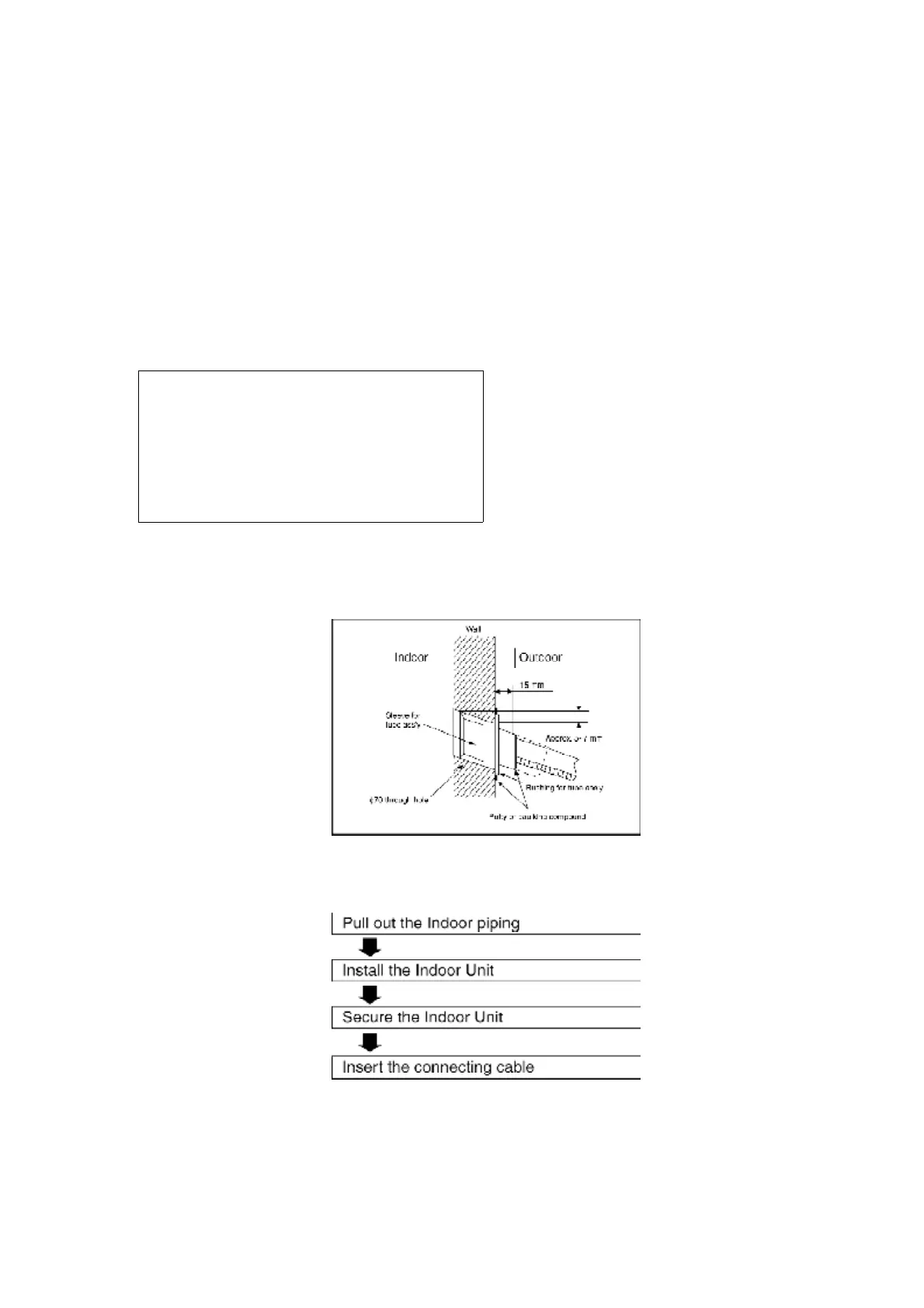

11.2.3. TO DRILL A HOLE IN THE WALL AND INSTALL A SLEEVE OF PIPING
1. Insert the piping sleeve to the hole.
2. Fix the bushing to the sleeve.
3. Cut the sleeve until it extrudes about 15 mm from the wall.
Caution
When the wall is hollow, please be sure to
use the sleeve for tube ass’y to prevent
dangers caused by mice biting the
connecting cable.
4. Finish by sealing the sleeve with putty or caulking compound at
the final stage.
11.2.4. INDOOR UNIT INSTALLATION
1. For the right rear piping
2. For the right and right bottom piping
To Next Page
