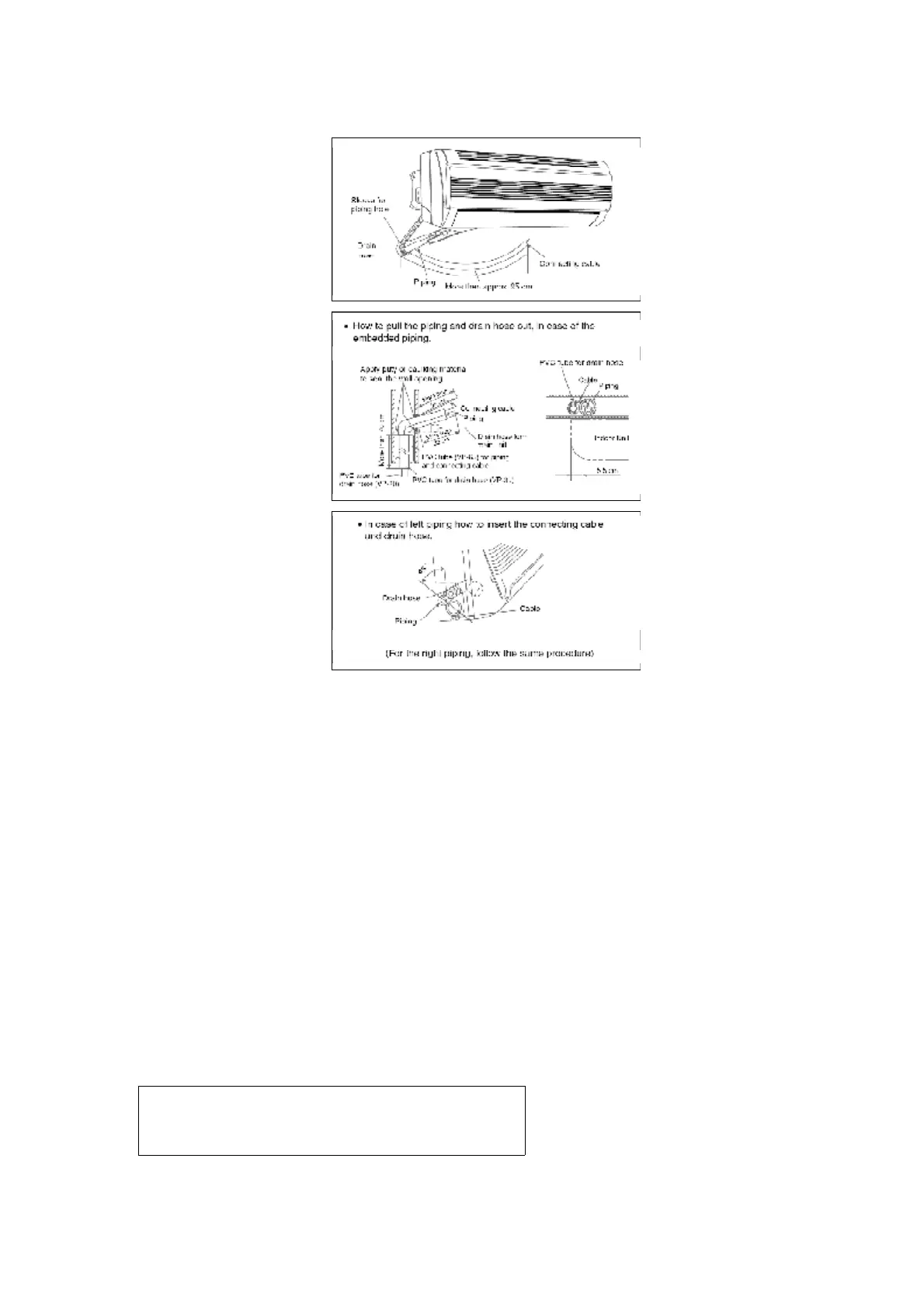

11.2.5. CONNECT THE CABLE TO THE INDOOR UNIT
1. The inside and outside connecting cable can be connected
without removing the front grille.
2. Connecting cable between indoor unit and outdoor unit shall be
approved polychloroprene sheathed 4 × 2.5 mm
2
(E18CK, E21CK)
flexible cord, type designation 245 IEC 57 or heavier cord.
- Ensure the color of wires of outdoor unit and the terminal
Nos. are the same to the indoor’s respectively.
- Earth lead wire shall be longer than the other lead wires as
shown in the figure for the electrical safety in case of the
slipping out of the cord from the anchorage. /
- Secure the cable onto the control board with the holder
(clamper).
INSTALLATION OF AIR PURIFYING FILTERS
To Next Page
