Panasonic CS-E24DKE - 8.2.3.3. Outdoor Air Temperature Control; 8.2.3.4. Overload Protection Control; 8.2.3.5. Outdoor Temperature Control

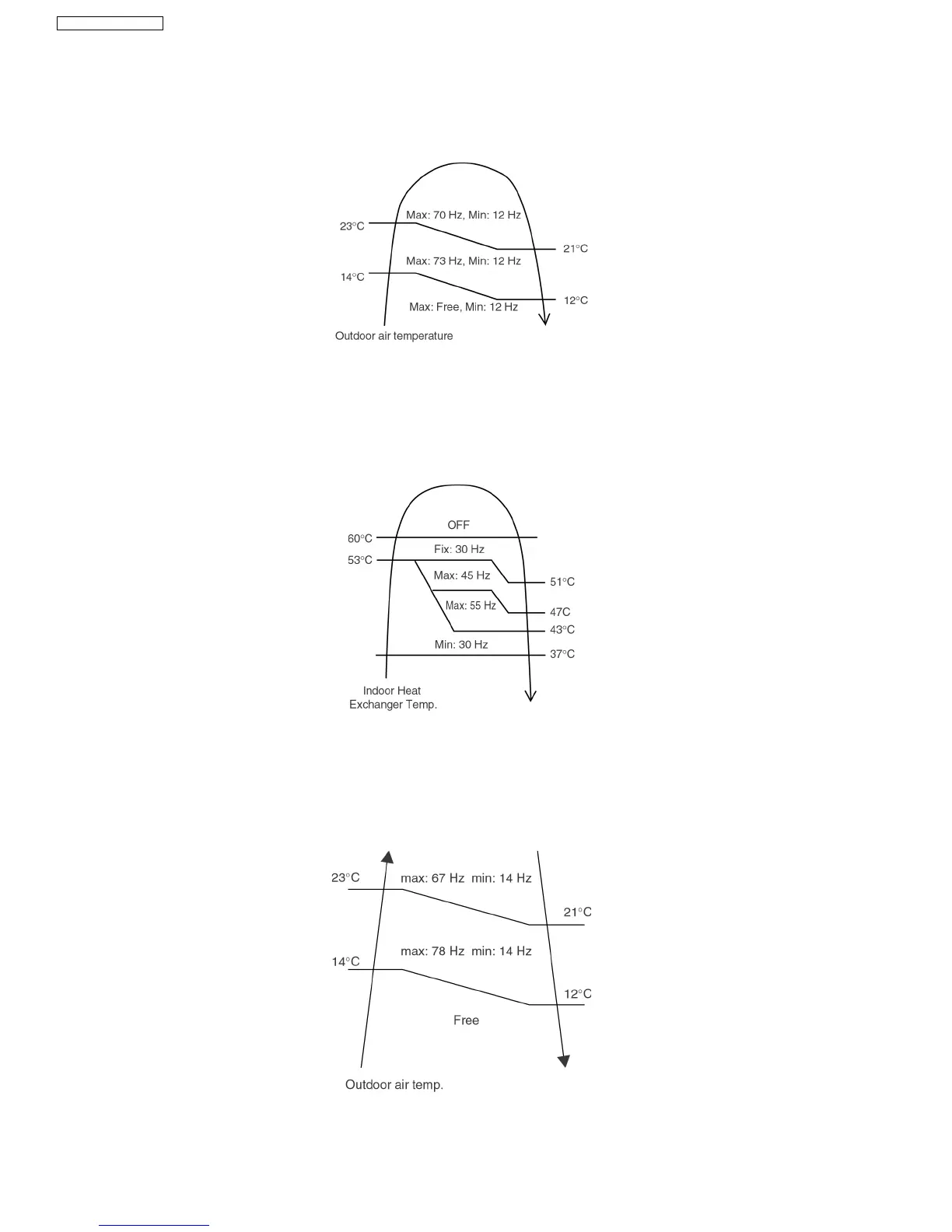

8.2.3.3. Outdoor Air Temperature Control
The compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the below figures. This
control will begin one minute after the compressor starts.
8.2.3.4. Overload Protection Control
The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown in below figures.
8.2.3.5. Outdoor Temperature Control
•
Outdoor temperature is detected and the following control is perform.
•
Control operates after more than 1 minute the compressor has started.
38
CS-E24DKE CU-E24DKE
