Transmitter
Transmits the remote control signal.
Airflow direction setting display
Fan speed display
Temperature setting display (16°C - 31°C)
Time/time setting display
Shows the timer operation setting time or the current time.
Address number display
Operation selection display
OFF/ON button
Used to start and stop the operation.
ODOUR WASH button
FILTER RESET button
Press to cancel the “FILTER” indicator light on the control
panel.
FAN SPEED button
Used to select the fan speed of high (HI), medium (MED), low
(LO) or auto (AUTO).
SET button*
Local setting function.
ADDRESS SET button*
Used to change the address setting when using more than one
indoor unit.
RESET button
Pressing this button will clear all the settings from memory.
You will then need to make the settings again.
TIMER/CLOCK SET buttons
Used to set the timer operation and the current time.
AIR SWING (AUTO/MANUAL) buttons
Used to determine the air swing condition, either auto or
manual.
MODE button
Used to select the operation of AUTO, HEAT, FAN, COOL or
DRY.
TEMP (UP/DOWN) buttons
Used to select the desired temperature.
ECONOMY operation button

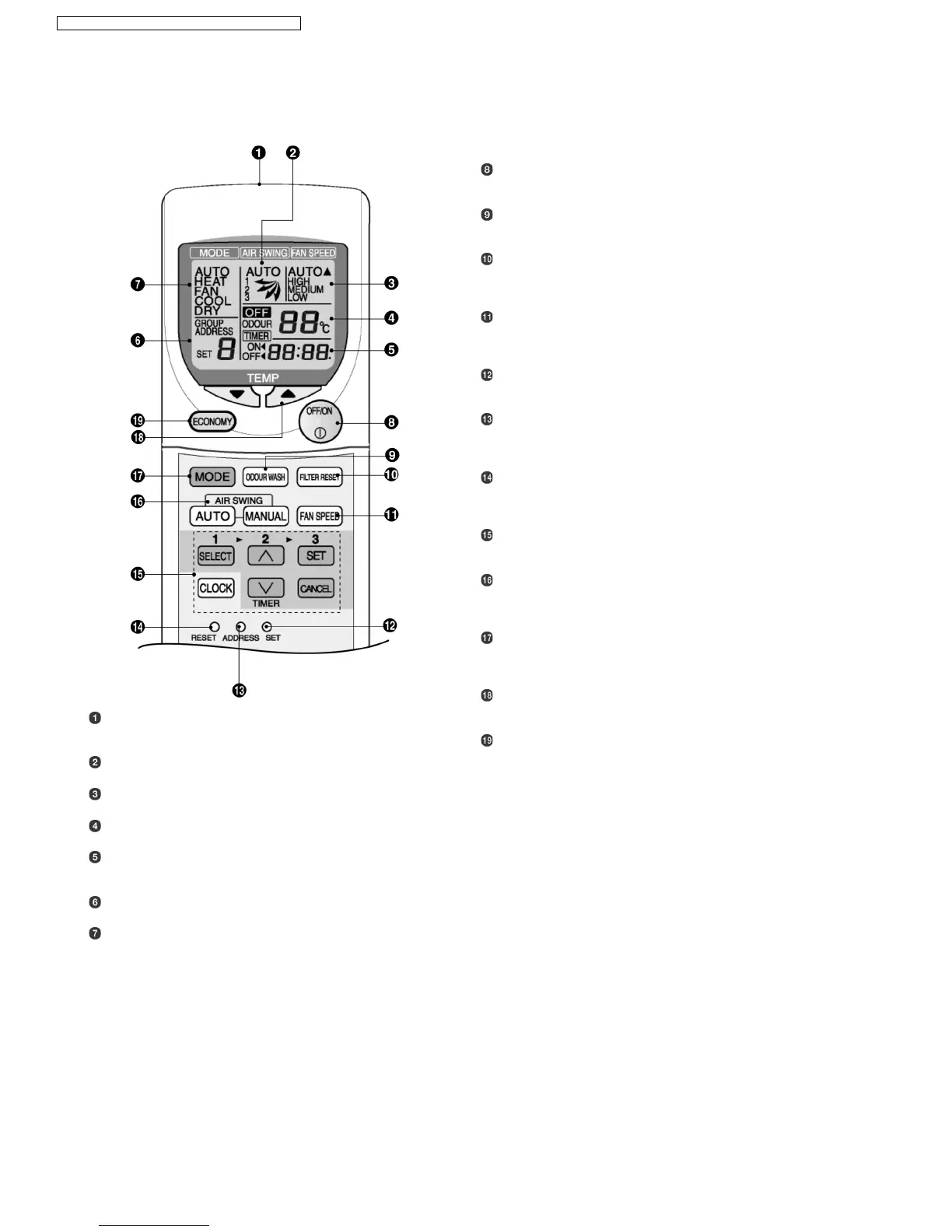

8.2. Wireless Remote Control (Optional part)
Name and function of each part
NOTES
•
• •
•
Ensure that the correct button is pressed as simultaneous pressing of the multiple buttons will not make the setting correct.
•
• •
•
The illustration above is for explanatory purpose only. The appearance will be different during actual operation.
•
• •
•
If using the wireless remote control in conjunction with the wired remote control, the settings made from the wireless remote
control will appear on the wired remote control display (except when making timer settings).
•
• •
•
Buttons marked with * are not needed for normal operation. If one of these buttons is pressed by mistake, press the same
button once more to cancel the operation.
•
• •
•
When the power resumed after power failure, the unit will restart automatically with all previous settings preserved by the
memory function. (Auto restart function)
22
CS-F24DB4E5 CU-L24DBE5 / CS-F28DB4E5 CU-L28DBE5
